Bacharach Tru Pointe IR Refrigerant Leak Detector with probe, battery, AC & DC chargers, protective rubber boot w/magnet, 9 in. flexible probe extension and rigid needle probe (1/ea), 5 filters, 5 O-rings, instruction manual and hard carrying case - 0019-8200

Item #:
0019-8200
Brand:
Bacharach
Bacharach Tru Pointe IR Refrigerant Leak Detector with probe, battery, AC & DC chargers, protective rubber boot w/magnet, 9 in. flexible probe extension and rigid needle probe (1/ea), 5 filters, 5 O-rings, instruction manual and hard carrying case - 0019-8200
$648.70
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Bacharach Tru Pointe IR Refrigerant Leak Detector with probe, battery, AC & DC chargers, protective rubber boot w/magnet, 9 in. flexible probe extension and rigid needle probe (1/ea), 5 filters, 5 O-rings, instruction manual and hard carrying case - 0019-8200

Bacharach Tru Pointe IR Refrigerant Leak Detector with probe, battery, AC & DC chargers, protective rubber boot w/magnet, 9 in. flexible...

$648.70

0019-8200 Tru Pointe IR Refrigerant Leak Detector with probe, battery, AC & DC chargers, protective rubber boot w/magnet, 9 in. flexible probe extension and rigid needle probe (1/ea), 5 filters, 5 O-rings, instruction manual and hard carrying case by Bacharach

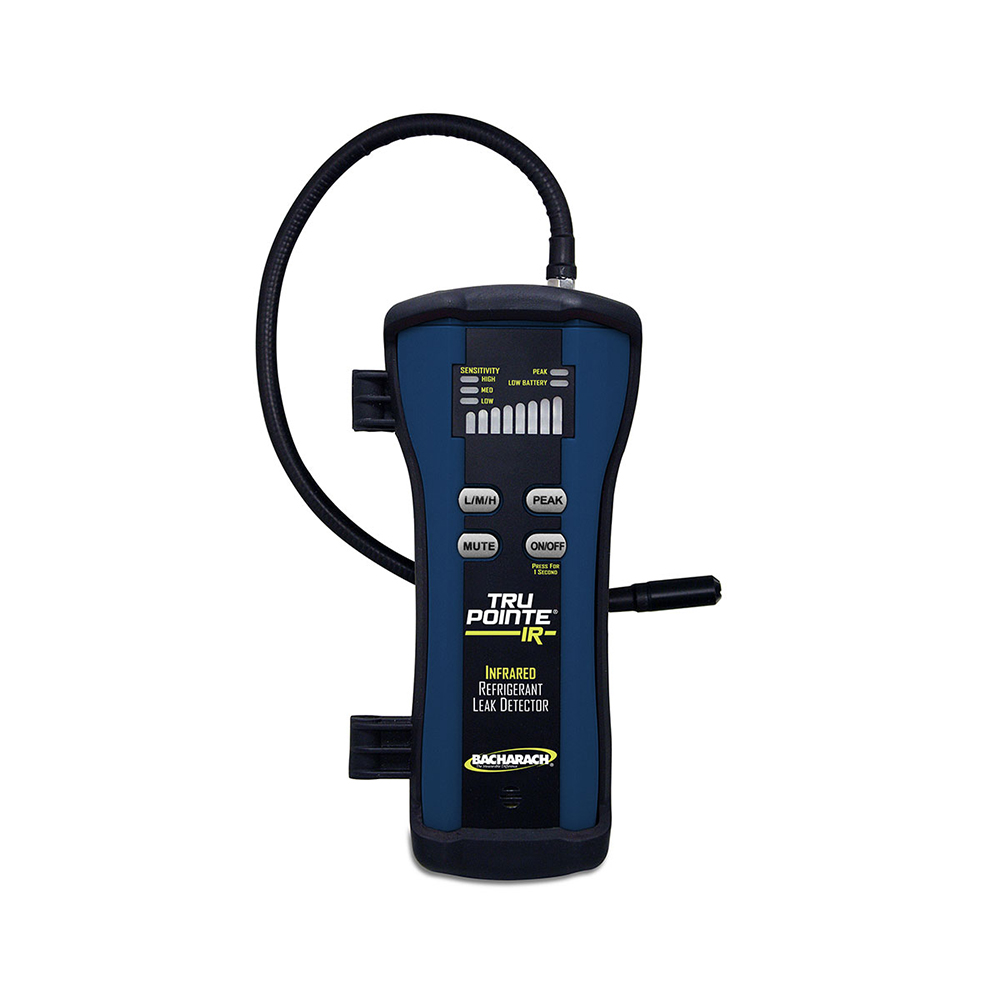

MSA Bacharach's Tru Pointe® IR is a handheld refrigerant leak detector that utilizes a long-life infrared sensor to locate and pinpoint leaks containing CFC, HFC, HCFC and HFO-1234yf refrigerants. Accurate detection with rapid response times, a long-running rechargeable battery and a lightweight design deliver superior performance in a compact size.

The Tru Pointe® IR is designed to meet SAE J2791 and J2913 leak detection standards and its infrared sensor is engineered to provide a minimum of 10 years of dependable performance. The instrument can automatically recalibrate in highly contaminated areas to help pinpoint the exact location leaks and will not trigger on oil or moisture. It's easily transported and stored, along with chargers, probe extensions and accessories, in a durable, hard-shell carrying case.

Features

  • Advanced infrared technology
  • Compact size and 15.5" (39.4 cm) flexible probe
  • Three levels of sensitivity
  • LED bar graph display
  • Auto-recalibration in contaminated areas
  • Vibrant visual and audible alarms
  • Rechargeable lithium ion battery
  • Rugged housing

Benefits

  • Detects CFC, HFC, HCFC and HFO-1234yf refrigerants with powerful accuracy
  • Easy portability and targeted detection capability
  • Detection from 0.5 to 0.15 oz./yr.
  • Peak reading and low battery indicators
  • Better pinpointing of leaks
  • For noisy environments (with one-touch muting)
  • AC wall adapter and DC cigarette lighter charger included
  • With protective rubberized boot and magnetic clip
Product Attributes
Description
SENSOR TYPE Infrared enhanced photo optics; 10 year average life
GASES DETECTED CFC, HFC, HCFC and blends, HFO-1234yf
SENSITIVITY LEVELS, PER SAE J2791 High: 0.1 oz./year (4 g/year) and higher
Medium: 0.25 oz./year (7 g/year) and higher
Low: 0.50 oz./year (14 g/year) and higher
RESPONSE TIME Less than 1 second
ACCURACY Per EN 14624 (refer to manual for details)
WARM-UP TIME 30 seconds; automatic calibration
OPERATING TEMPERATURE RANGE 32° F to 122° F (0° C to 50° C) at 75% RH
ALARMS Visual (LED) and audible; low battery LED illuminates at 1 hr. remaining
DIMENSIONS 3.75"w x 1.75"d x 7.5"h (plus 15.5" flexible probe) (9.52cm w x 4.45cm d x 19.05cm h (plus 39.37cm probe)
WEIGHT 15.6 oz. including battery (442 g)
POWER Rechargeable lithium-ion battery (included); 3.7VDC, 1880 mAH
CHARGE TIME ≥ 4 hours @ 500mA
RUN TIME 8 hours on full battery charge, typical; with 10 minute auto-off
HOUSING Rubberized boot with rigid plastic housing, rubberized probe
APPROVALS SAE J1627, SAE J2791, SAE J2913; CE (pending); EN 14624
WARRANTY Instrument, IR Sensor - 1 Year
