Bacharach Informant 2 Multi-purpose Leak Detector with refrigerant and combustible gas sensors, rubber boot, instruction manual, 4x AA batteries, 5x refrigerant sensor filters and a hard carrying case - 0019-8038
Item #:
0019-8038
Brand:
Bacharach
Share this product:
0019-8038 Informant 2 Multi-purpose Leak Detector with refrigerant and combustible gas sensors, rubber boot, instruction manual, 4x AA batteries, 5x refrigerant sensor filters and a hard carrying case by Bacharach

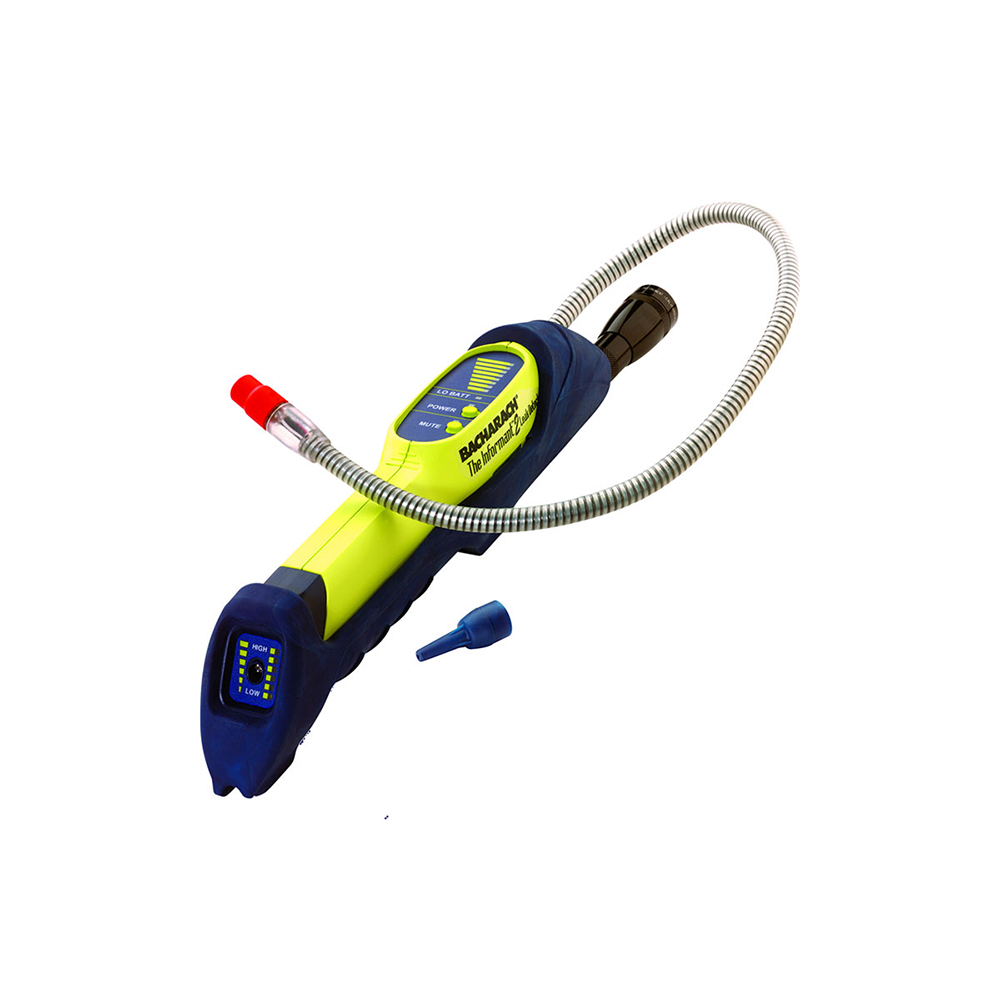

The MSA Bacharach Informant® 2 is a dual-purpose leak detector for detecting both combustible and refrigerant gases and is ideal for residential and commercial heating and cooling contractors. Its unique combination of state-of-the-art sensor technology, advanced software design and microprocessor-controlled circuitry offers unmatched accuracy and detection speed. The Informant® 2 utilizes patented semiconductor sensor technology to detect combustible gases and a patented heated diode sensor technology to detect refrigerants.
Quick Change Sensors for Instant Detection
Easily switch sensor tips in just a few seconds with no need to adjust sensitivity levels, - it's taken care of automatically - even where high levels of background vapors or refrigerants are present. Gaining access to hard to reach areas is easy with the finely tapered sensor tip.
The Informant® 2 leak detector features an audible indicator with a mute option coupled with sequential LEDs to monitor increasing concentrations of refrigerant or combustible gases. The bar graph display provides visual confirmation of leak concentrations and a flashing light leak rate indicator on the probe tip helps to visually define the sampling location.
Features
- Easy switch tip detects refrigerants and combustible gases in seconds
- Combustible Gas
- Refrigerant Gas
- Visual and Audible indicators with mute feature
- Finely tapered Sensor tip
- Interchangable Sensors
- Flashing probe tips
- Low battery indicator
- Optional boot and flashlight
Benefits
- Saves time and money detecting both gases with the same product
- Detects Gas Leaks sensitive to 50 ppm methane
- Detects Leaks in refrigerant systems by locating halogens in CFC, HCFC, HFC and blends
- Quickly find the sampling location
- Gain access to hard to reach areas
- Quick, easy access and no sensitivity adjustments needed
- See the unit in operation
- Uptime all the time
- The rubber boot protects the unit from abuse and the integrated flashlight make it easy to see around difficult dark corners
PRODUCT ATTRIBUTES | Description |
DEFINITION |
REFRIGERANTS DETECTED | All CFC, HCFC and HFC refrigerants including: R12, R22, R123, R134A and blends R404A, R408A, and R409A and R410A (i.e., any refrigerant containing Chlorine, Fluorine or Bromine gas) | — |
COMBUSTIBLE GASES DETECTED | All combustible gases and vapors 0 to 400% | — |
WARM-UP TIME | 10 seconds | — |
ALARM SENSITIVITY | Refrigerant | 0.5 oz/yr (14 g/yr) of R12 and R134a (per SAE J1627) |
Combustible | Minimum 50 ppm (Methane) | |
DIMENSIONS | 1.75"W × 9.62"L × 2.25"H (4.45 cm × 24.43 cm × 5.72 cm) | — |
WEIGHT | 0.86 lbs (0.39 kg) with batteries | — |
SENSORS | Refrigerant | Heated Diode - U.S. Patent No. 5,932,176 |
Combustible | Patented semiconductor type. Five year typical life. Plug in replacement | |
PROBE | 20" (50.8 cm) maximum length, fully extended; 3” (7.62 cm) if wrapped around instrument. Includes | — |
ALARM TYPES | Audible, dual visual LED's and flashing probe tip | — |
RESPONSE TIME | Refrigerant | Instantaneous |
Combustible | Instantaneous | |
POWER | 4 AA alkaline batteries (included) 4-5 hours, under typical intermittent operation | — |
APPROVALS | Refrigerant | SAE J1627; CE Mark |
Combustible | UL 913 Classified, intrinsically safe for use in Class1, Division 1, Group D hazardous areas; CE Mark | |
WARRANTY | One year, including sensors | — |
