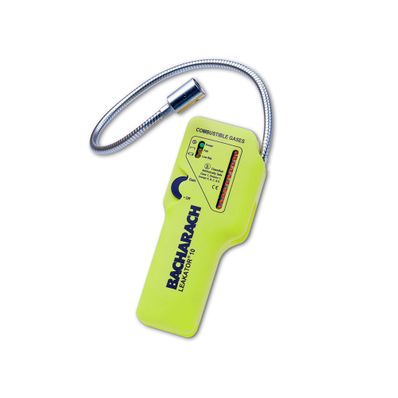

Bacharach Leakator 10 Combustible Gas Leak Detector with hard carrying case and instruction manual - 0019-7051
Item #:
0019-7051
Brand:
Bacharach
Share this product:
0019-7051 Leakator 10 Combustible Gas Leak Detector with hard carrying case and instruction manual by Bacharach
The MSA Bacharach Leakator® 10 is an ideal instrument for pinpointing combustible gas leaks in a number of residential, commercial and industrial applications, including gas pipeline surveying and valve, regulator or gas meter inspection. It uses a long-life (5 years typical) sensor and is easy to operate with one hand, giving you a reliable, easy-to-use tool.
The Leakator® 10 has a long, flexible neck for detecting leaks in hard-to-reach areas. The bright LED scale shows relative leak sizes, and a manual balance feature finds leaks in backgrounds where the target gas is present. It is UL 913 certified for hazardous locations, and carries a 1 year warranty that includes the sensor.
Features
- Semiconductor Sensor Technology
- Exchangable Sensor Located in Probe Tip
- 20 Inch Probe
- Visual and Audible Leak Indicators
Benefits
- Detects all combustible gases
- Allows for ultimate sensitivity, fast response, and easy replacement
- Allows for leak detection in hard-to-reach areas
- Shows leak intensity through audible tick rate or visual LED scale
| Product Attributes | Description |
| GASES DETECTED | All hydrocarbons / combustible gases, including but not limited to: acetone, acetylene, benzene, butane, ethanol, gasoline, hexane, hydrogen, industrial solvents, methane, naptha, natural gas, paint thinners and propane |
| SENSITIVITY | 20 ppm methane |
| RESPONSE TIME | < 3 seconds to full scale indication |
| LEAK INDICATORS | Visual (10 ultra-bright red LEDs) and audible (via internal speaker or optional earphone) |
| AUTOMATIC BACKGROUND ADJUSTMENT | No (manual) |
| POWER | 5× C batteries |
| RUN TIME | 30 hours typical (alkaline batteries) |
| SIZE (H × W × D) | Unit: 8.5 × 3.5 × 1.75 in. (21.6 × 8.9 × 4.4 cm) Probe: 20 in. (50.8 cm) |
| WEIGHT | 12 oz (340 g) without batteries |
| SENSOR LIFE | 5 years (typical) |
| OPERATING CONDITIONS | 23 to 130 °F (-5 to 54 °C), 10 to 85% RH (non-condensing), 1 ATM |
| WARM-UP TIME | 1 minute (approximate) |
| APPROVALS | UL 913 Class 1, Division 1, Groups A, B, C & D |
| WARRANTY | 1 year (including sensor) |
