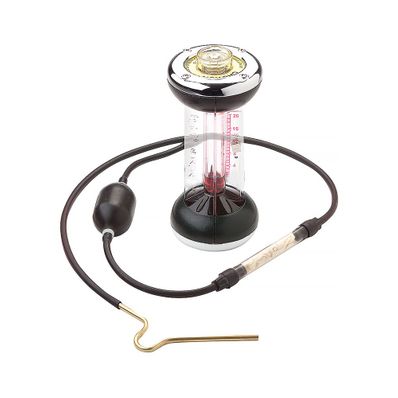

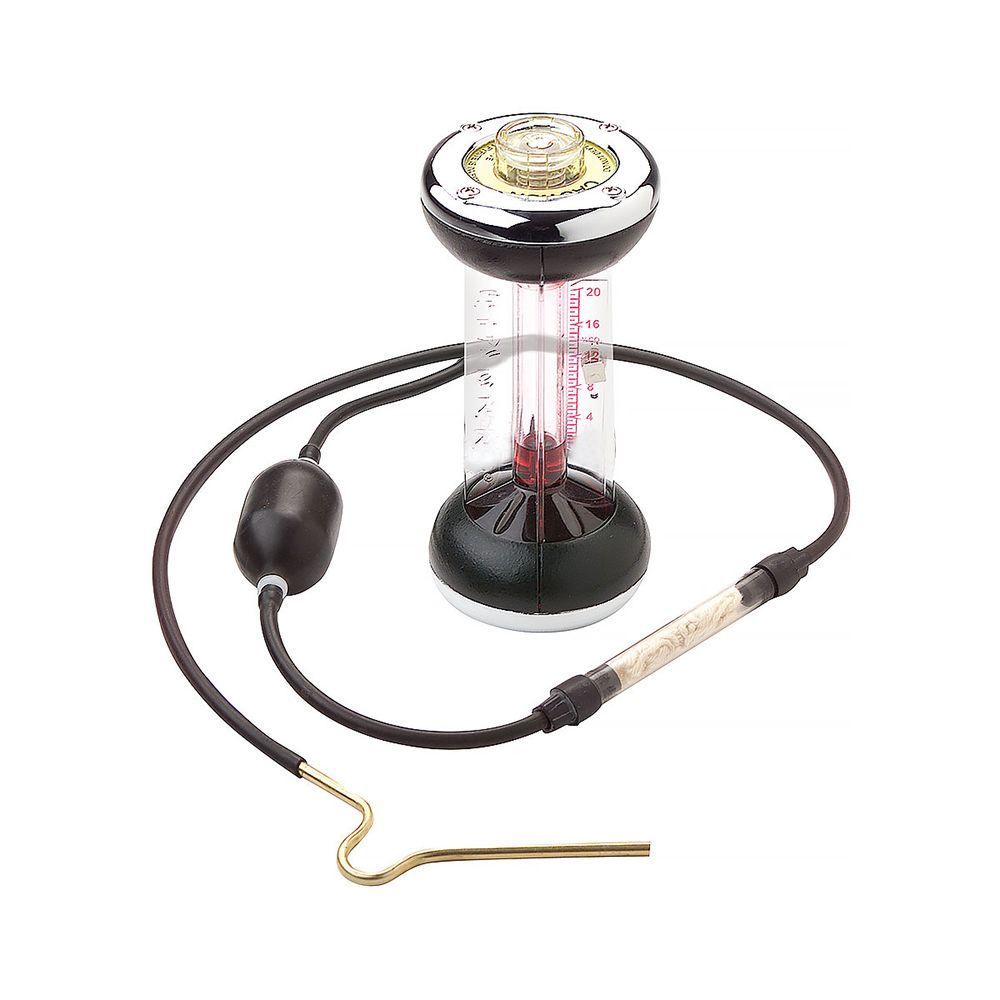

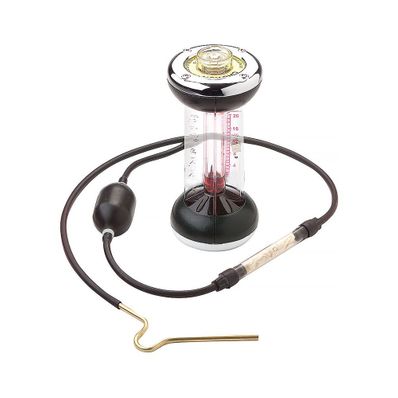

Bacharach Fyrite O2 Testing Indicator (0-21%), sampling assembly and carry case - 0010-5011

0010-5011 Fyrite O2 Testing Indicator (0-21%), sampling assembly and carry case by Bacharach

Fast, accurate and easy to use instruments for measuring and analyzing carbon dioxide or oxygen. Fyrite Analyzers are available for either CO2 or O2 analysis, and each model is produced in three scale ranges.

All six instruments are similar in appearance and size, but differ in important construction details, as well as in the absorbing fluids.

Each model, therefore, is suitable only for the particular gas analysis or scale range for which it has been manufactured. Accuracy is within ±1/2% CO2 or 02.

Operation

Fyrite absorbing fluid is selective in the chemical absorption of carbon dioxide or oxygen, respectively. Therefore, the Fyrite's accuracy, which is well within the range required for industrial and professional applications, does not depend upon complicated sequential test procedures. In addition, Fyrite readings are unaffected by the presence of most background gases in the sample.

The number of tests possible with one fluid charge depends on the concentration of samples being tested. At midpoint scale reading the CO2 fluid is good for approximately 300 gas samples and the O2 fluid for 100 tests. The need to replace fluid can be easily determined with a simple test, and replacement is an easy procedure. These test procedures, as well as other good information, are provided in the Fyrite manual 11-9026.

Features

Fyrite Indicators have a broad range; they may be exposed to ambient temperatures from -30° to 150°F, and gases up to 850°F may be tested with standard aspirator sampling equipment (special sampling equipment for higher gas temperatures or dry gases is available). Order Fyrite Instruction Manual 11-9026. For temperatures above 1400°F, a ceramic sampling tube (Bacharach Part # 11-0164) is available.

Applications

• 0-7.6% CO2 – CO2 tests of controlled atmospheres in fruit, vegetable, meat storage rooms, and incubator monitoring.
• 0-7.6% O2 – Oxygen determination in flammable gases; oxygen tests to check inertness of atmosphere in silos, fuel tanks, etc.
• 0-20% CO2 – Flue gas combustion tests; CO2 tests of heat treating atmospheres.
• 0-21% O2 – Flue gas combustion tests, oxygen deficiency test. Checking oxygen concentrations in hydrogen cooled generators and oil sealed inert gas transformers.
• 0-60% CO2 – Checking CO2 in inert gas blankets in tankers and barges carrying gasoline and other combustibles; CO2 tests on lime kilns; checking CO2 in sewage plant digesters.
• 0-60% O2 – Oxygen test in connection with oxygen and gas anesthesiology.
