Western Technology BODYLight Includes Rechargeable Battery, Charger, and Case - 8910
Item #:
WT-8910
Brand:
Western Technology
Share this product:
8910 BODYLight™ Includes Rechargeable Battery, Charger, and Case by Western Technology

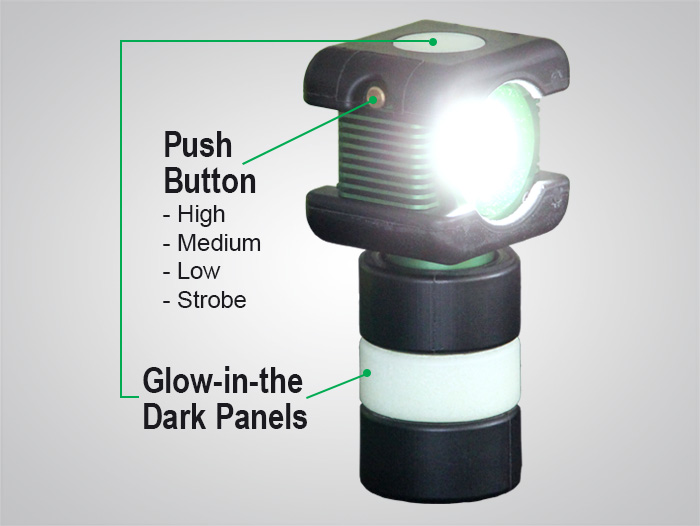

The BODYLight™ is the 1st Explosion Proof Rechargeable Battery-Powered LED light in the World to be ETL certified by an OSHA approved Nationally Recognized Testing Laboratory (NRTL) Intertek. It boast ~3.5hrs runtime with 2,500± lumens on High (task specific mode). This LED work light is more than just a flashlight, it is built for industrial services. The BODYLight™ is machined from solid blocks of 6061-T6 Aluminum for durability. They are also polyurethane wrapped with protective bumpers and glow-in-the-dark paneling for added safety.
As the newest member our explosion proof KICK-IT TOUGH™ LED Safety Lights, it holds the same multiple certifications:
- Class I, Div 1 & 2, Groups C & D;
- Class II, Div 1 & 2, Groups E, F & G
- CSA Zones 1 & 2; Zones 20, 21 & 22
- Portable Luminaire (UL 153)
- Wet Location (NEMA TYPE 6-P)
- Low Voltage (LVLE)
| Certifications | Suitable for simultaneous use in... Class I, Div 1 & 2; Groups C & D Class II, Div 1 & 2; Groups E, F, & G CSA Zones 1 & 2; Zones 20, 21, & 22. * Approved for Light Head w/ Battery Canister or Corded "Double Battery" Input |
| Conforms to | UL Stds 153, 844, 62133, E62133 |
| Certified to | CSA Std. 12, 137, 25, E62133 |
| Suitable for | Wet Location Use. Type 6P |
| Temperature Rating | T-code: T5, (-25° to +40°C) |
| Emitter Type | COB LED |
| LED Color | 5700K |
| LVLE Input | 12-15 VDC, 3-5A |
| Light Output | High (Task Specific): 2,500± Lumens Medium (Work): 1,250± Lumens Low (Passage): 625± Lumens Strobe: (Emergency/Man Down) * High ambient temperature will increase run time up to 10% with slight decrease in lumen output |
| Run Time | High (Task Specific): ~3.5hrs Medium (Work): ~7hrs Low (Passage): ~14hrs Strobe: (Emergency/Man Down) |
| Illuminance | ~9,375 lux @ 1ft on High |
| Recharging Time | ~2.5 hrs |
| Projection Type | Wide Floodlight Projection |
| Housing/Material | Machined out of Solid Blocks of 6061-T6 Aluminum Polyurethane Bumper Glow-in-the-Dark Paneling |
| Dimensions | 3.67"L x 2.97"W x 7.58"H x Ø2.67" |
| Weight | Light head: 1.90lbs Battery/Handle: 1.45lbs Total Weight: 3.35lbs |
| Accessories | Flat Diffuser/Dome Diffuser Hanging Hook attachment Magnet Mounting attachment Belt Clip attachment Strap Bars attachments Overspray Protection Bags 2 Battery Manifold DC Power Inverter * Hands-Free Body Strap * Tripod Base w/ Magnetic feet *Equipment specifications, options & availability subject to change |

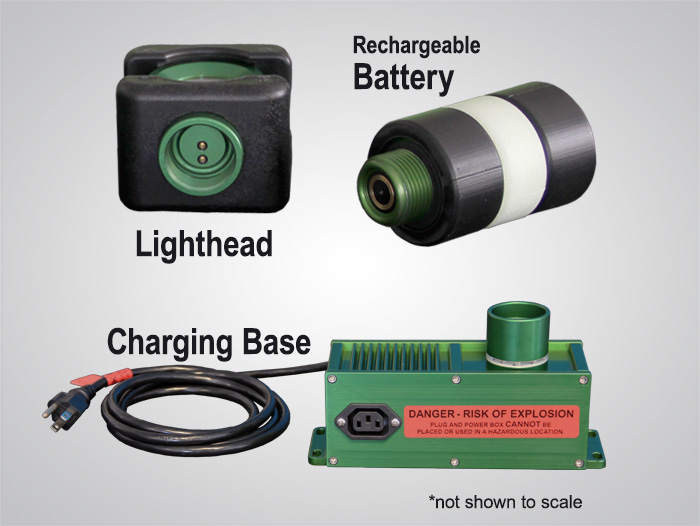

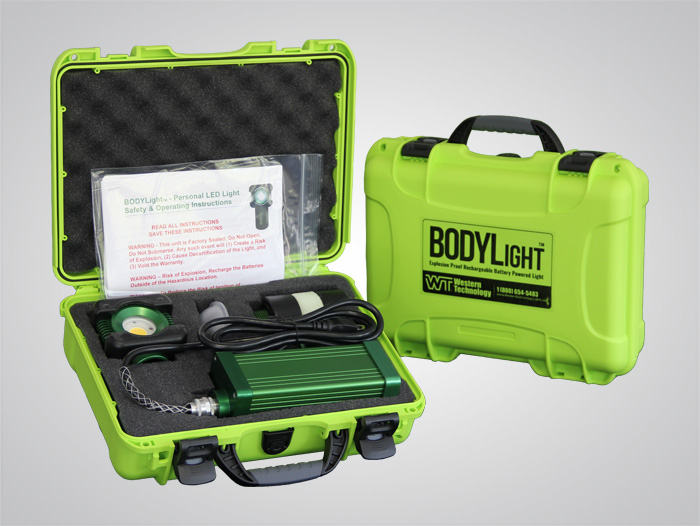

| Part Numbers (replacement parts) | #8910 (BODYLight™) – Complete System: (1) Lighthead, (1) Rechargeable Battery, (1) Charger, & (1) Carrying Case. (1) Mounting option. #8910 NC (BODYLight™) – No Case Option: (1) Lighthead, (1) Rechargeable Battery, (1) Charger. #8109B – 12 Pack of 8109 Secondary Blast Lens. #8910 BAG – Non-Static 9 x 12 Overspray Bag (Box of 50). #8910 BATTERY – Rechargeable Auxiliary Battery for the BODYLight™ (extra/replacement). #8910 BATTERY CHARGER – Battery Charger for the BODYLight™ (extra/replacement). #8910 INVERTER – DC Power Inverter to be used with the BODYLight™ #8910 CASE – Lime Green Resin Case for the BODYLight™. #8910 CLIP – Clip Mount for the BODYLight™. #8910 DOME DIFFUSER – Dome Diffuser for the BODYLight™. #8910 DUAL BATTERY BELT PACK – 2 Battery Belt pack (manifold) for the BODYLight™. #8910 FLAT DIFFUSER – Anti-Glare (flat) Diffuser for the BODYLight™ (Sold Separately). #8910 HOOK – Hook mount for the BODYLight™. #8910 LIGHTHEAD – Lighthead only (extra/replacement). #8910 MAGNET – Magnet Mount for the BODYLight™. #8910 TRIPOD – Tripod Mount for the BODYLight™ (not available). #8910 BL Harness – Body Harness: 40" (small to 40" Girth) #8910 BL Harness – Body Harness: 50" (Adult to 50" Girth) #8910 BL Harness – Body Harness: 60" (Big & Tall to 60" Girth) |
| Country of origin | Designed & Manufactured in the USA |
| Battery Pack Transportation Compliance | The BODYLight™ Battery Pack, consisting of lithium ion cells external to the Explosion Proof Canister, was examined for conformance to UN/DOT 38.3, Transportation Testing, by Intertek Laboratories. Conformance verification to the Standard for the Battery Pack was issued on November 16, 2017. (Report No.: 103190396CRT-002) The BODYLight™ Battery Pack passed all test procedures for Altitude Simulation, Thermal Test, Vibration, Shock, External Short Circuit, and Overcharge/Discharge, ensuring its compliance and safety for air and ground transportation. Further, with the Battery Pack encased in an Explosion Proof Canister, compliant to UL 62133, 153, and 844, provides even greater assurance of safety during transportation.
Dr. Michael S. Kralik |
| Battery Pack | 41NR19/66 Output Power: 14.4 VDC, 3.4Ah Temp Amb: -20° to +40°C. Temp. Rating: T5 Charging: Ta: 0° to +60°C |
| Charger Base Input | Frequency of Input: 120/240 VAC, 50/60 Hz, 1A Output Power: 12-15VDC, 3-5A Temp Ambient: -25° to +40°C Temp Rating: T5 |
| Charger Base Compliance | – UL 1310 – CSA C22.2#223 certification testing for Class 2 Power Units. |
