  4. Western Technology UVA BODYLight™ Includes UVA BODYLight lighthead, Rechargeable Battery, Charger, Strap Bars and Case - 8910 UVA

Western Technology UVA BODYLight™ Includes UVA BODYLight lighthead, Rechargeable Battery, Charger, Strap Bars and Case - 8910 UVA

Item #:
WT-8910-UVA
Brand:
Western Technology
Western Technology UVA BODYLight™ Includes UVA BODYLight lighthead, Rechargeable Battery, Charger, Strap Bars and Case - 8910 UVA
$2,595.29
Qty
Ask a Question
Send This Page to a Friend
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Western Technology UVA BODYLight™ Includes UVA BODYLight lighthead, Rechargeable Battery, Charger, Strap Bars and Case - 8910 UVA

Western Technology UVA BODYLight™ Includes UVA BODYLight lighthead, Rechargeable Battery, Charger, Strap Bars and Case - 8910 UVA

$2,595.29

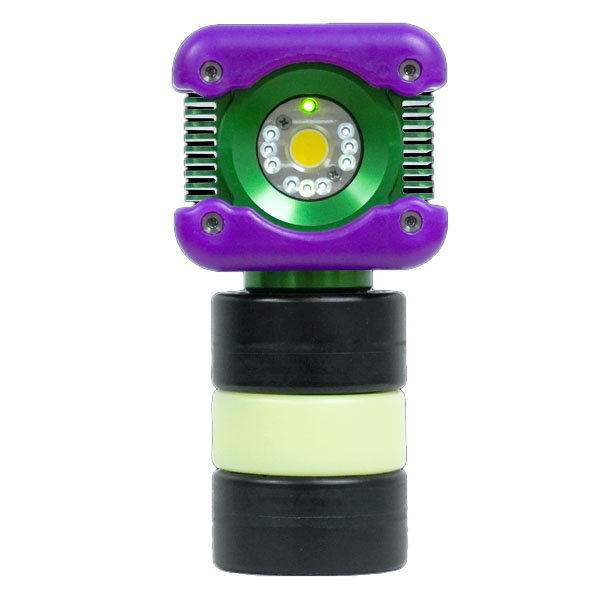

8910 UVA BODYLight™ Includes UVA BODYLight lighthead, Rechargeable Battery, Charger, Strap Bars and Case by Western Technology

UVA BODYLight™ is certified to construction requirements under UL 844 for usage in Class I & II, Division 1 & 2 explosion proof environments. Further, the 365nm UV emission from the BODYLight™ is compliant with standards ASTM E3022, ASTM E1444, ISO 3059, and RRES 90061. Great for NDI / NDT Testing, typical in Aeronautical maintenance and manufacturing inspections. Detect cracks, leaks, FOD, microscopic holes & defects.

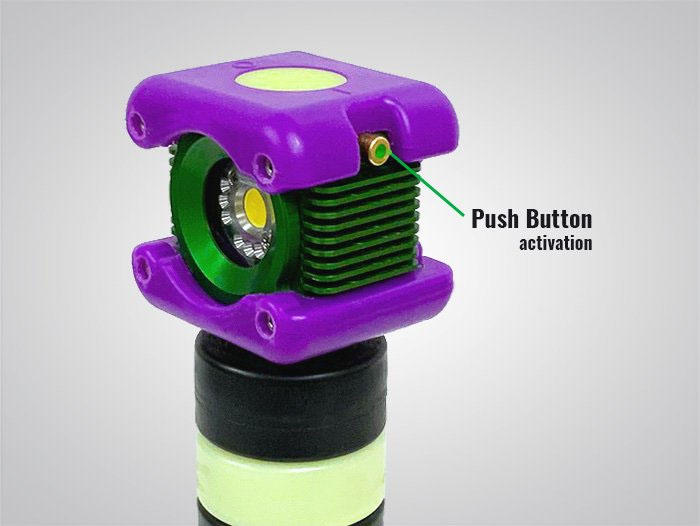

The BODYLight™ with UVA option supports normal full visible light operation as well. Push button activation to UVA mode is simple. Easily switch from the 2500 Lumen normal LED mode to the UVA mode and back again.

Superior reliability and performance in both modes. Owner may order special "code" allowing only trained operator to switch into UVA mode. Code will be available in "Light Emission Report" accompanying sale of every UVA BODYLight™.

*Certified Explosion Proof under UL844 by Intertek for use in: Class I, Div 1 & 2; Groups C & D;
Class II, Div 1 & 2; Groups E, F, & G;
CSA Zones 1 & 2; Zones 20, 21, & 22
Suitable for Wet Location Use. Type 6P
* Approved for Light Head, Battery Pack, & Manifold
Light Head may be powered with a Power Supply Box for continuous use:
– Line Power to Supply Box: 100-277VAC;
– Output: 48VDC, 8A max
Battery Charger is Ordinary Location Listed: UL153 – Not Explosion Proof

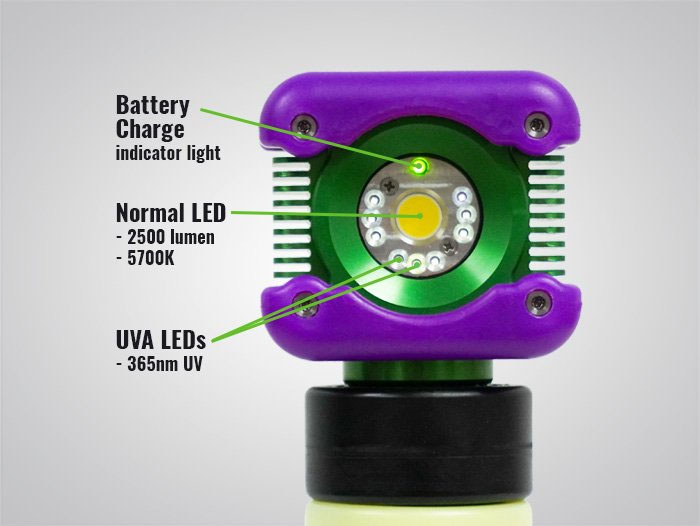

Visible (White Light) Mode | Emitter Type: LED COB (Chip on Board)
– Correlated Color Temperature (CCT): 5700°K
Visible (White Light) Mode | Light Output (Lumens): Glow (On/ Battery Check)
Low (Passage): 625 lm
Medium (Work): 1,250 lm
High (Task): 2,500 lm
Flashing: (Medium-Low)
Visible (White Light) Mode | Run Time: Glow (On/ Battery Check): N/A
Low (Passage): ~14 hrs
Medium (Work): ~7 hrs
High (Task): ~3.5 hrs
Flashing (Medium-Low): N/A
Projection Type: Wide Floodlight Projection
UVA Mode | Emitter Type: UVA Wavelength: 365nm peak
UVA Mode | Output Modes: Glow (On/ Battery Check)
Low (Passage)
Medium (Work)
High (Task)
UVA Mode | Run Time: Glow (On/ Battery Check): N/A
Low (Passage): ~14 hrs
Medium (Work): ~7 hrs
High (Task): ~3.5 hrs
UVA Activation Code: May be programmed with a code to activate/deactivate UVA function
Housing/Material: Machined out of Solid Blocks of 6061-T6 Aluminum
Polyurethane Bumper (PURPLE)
Glow-in-the-Dark Paneling
Dimensions: 3.67"L x 2.97"W x 7.58"H x Ø2.67"
Weight: Light head: 1.90lbs
Battery/Handle: 1.45lbs
Total Weight: 3.35lbs
Battery-Powered: Rechargeable , Li-ion (Approved for Shipping)
Smart Charger Base (Auto-Off at full charge w/ indicator light)
Recharging Time: ~2.5 hrs
Battery Pack Transportation Compliance:

The BODYLight™ Battery Pack, consisting of lithium ion cells external to the Explosion Proof Canister, was examined for conformance to UN/DOT 38.3, Transportation Testing, by Intertek Laboratories. Conformance verification to the Standard for the Battery Pack was issued on November 16, 2017. (Report No.: 103190396CRT-002)

The BODYLight™ Battery Pack passed all test procedures for Altitude Simulation, Thermal Test, Vibration, Shock, External Short Circuit, and Overcharge/Discharge, ensuring its compliance and safety for air and ground transportation.

Further, with the Battery Pack encased in an Explosion Proof Canister, compliant to UL 62133, 153, and 844, provides even greater assurance of safety during transportation.

Dr. Michael S. Kralik
Western Technology
Engineering Director
Battery Pack: 41NR19/66
Output Power: 14.4 VDC, 3.4Ah
Temp Amb: -20° to +40°C. Temp. Rating: T5
Charging: Ta: 0° to +60°C
Charger Base Input: Frequency of Input: 120/240 VAC, 50/60 Hz, 1A
Output Power: 12-15VDC, 3-5A
Temp Ambient: -25° to +40°C
Temp Rating: T5
Charger Base Compliance: – UL 1310
– CSA C22.2#223
certification testing for Class 2 Power Units.
*Accessories: Flat Diffuser/Dome Diffuser
Hanging Hook attachment
Magnet Mounting attachment
Belt Clip attachment
Strap Bars attachments
Overspray Protection Bags
2 Battery Manifold
DC Power Inverter
Hands-Free Body Strap
Tripod Base
* Equipment specifications, options & availability subject to change
Part Numbers (replacement parts): #8910 (BODYLight™) – Complete System: (1) Lighthead, (1) Rechargeable Battery, (1) Charger, & (1) Carrying Case. (1) Mounting option.
#8910 NC (BODYLight™) – No Case Option: (1) Lighthead, (1) Rechargeable Battery, (1) Charger.
#8109B – 12 Pack of 8109 Secondary Blast Lens.
#8910 BAG – Non-Static 9 x 12 Overspray Bag (Box of 50).
#8910 BATTERY – Rechargeable Auxiliary Battery for the BODYLight™ (extra/replacement).
#8910 BATTERY CHARGER – Battery Charger for the BODYLight™ (extra/replacement).
#8910 INVERTER – DC Power Inverter to be used with the BODYLight™
#8910 CASE – Lime Green Resin Case for the BODYLight™.
#8910 CLIP – Clip Mount for the BODYLight™.
#8910 DOME DIFFUSER – Dome Diffuser for the BODYLight™.
#8910 DUAL BATTERY BELT PACK – 2 Battery Belt pack (manifold) for the BODYLight™.
#8910 FLAT DIFFUSER – Anti-Glare (flat) Diffuser for the BODYLight™ (Sold Separately).
#8910 HOOK – Hook mount for the BODYLight™.
#8910 LIGHTHEAD – Lighthead only (extra/replacement).
#8910 MAGNET – Magnet Mount for the BODYLight™.
#8910 TRIPOD – Tripod Base for the BODYLight™.
#8910 BL Harness – Body Harness: 40" (small to 40" Girth)
#8910 BL Harness – Body Harness: 50" (Adult to 50" Girth)
#8910 BL Harness – Body Harness: 60" (Big & Tall to 60" Girth)
Country of origin: Designed & Manufactured in the USA
