Wohler VIS700 Plus HD Video Inspection Camera with Detachable 1.5" & 1" Camera Heads - 7498

Item #:
WLR-7498
Brand:
Wohler
Wohler VIS700 Plus HD Video Inspection Camera with Detachable 1.5" & 1" Camera Heads - 7498
$11,690.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Wohler VIS700 Plus HD Video Inspection Camera with Detachable 1.5" & 1" Camera Heads - 7498

Wohler VIS700 Plus HD Video Inspection Camera with Detachable 1.5" & 1" Camera Heads - 7498

$11,690.00

7498 VIS700 Plus HD Video Inspection Camera with Detachable 1.5" & 1" Camera Heads by Wohler

The Wohler VIS 700 offers exactly what professionals have been waiting for: razor sharp high definition images, an adjustable focus for precise inspection, and wireless locating with adjustable frequency; 512 Hz /8.9 kHz /9.2 kHz. The Wohler VIS 700 is the ideal inspection camera for waste water pipes, flue gas lines and ventilation ducts as well as NDT and plumbing applications.

A new digital high-resolution sensor assures amazingly sharp images. With the Wohler VIS 700, professionals are able to plan their maintenance services on the basis of clearly visible facts. The displayed level indication ensures you to keep orientation in the pipe. The camera display shows the camera head position and angle for ease of navigation. The home function allows you to realign the camera head straight forward when needed.

HD images are displayed for you on the brilliant, touch screen high-resolution monitor. The Wohler VIS 700 is designed for the future with the ability of camera control and video transmission via app. You can also save all footage on an SD Card for reviewing at a later time.

The easily adjustable focus ensures a crystal clear image, no matter how large the pipe is. Additional settings and extras, such as the touch screen keyboard, are accessable by tapping the touchscreen monitor.

  • High Definition image quality
  • 1.5" HD detachable waterproof pan- and tilt color camera head (IP 67)
  • Optional 1" HD detachable waterproof miniature color camera head (IP 68)
  • 7" HD color touchscreen with adjustable focus via joystick / touch screen
  • Built-in radio transmitter with adjustable locator frequency: 512 Hz / 8.9 kHz / 9.2 kHz
  • Position and level display for orientation during inspections
  • On screen keyboard for typing comments / descriptions to photos
  • Convenient option for remote control of the camera head and video streaming via free Wohler App

Additonal Information

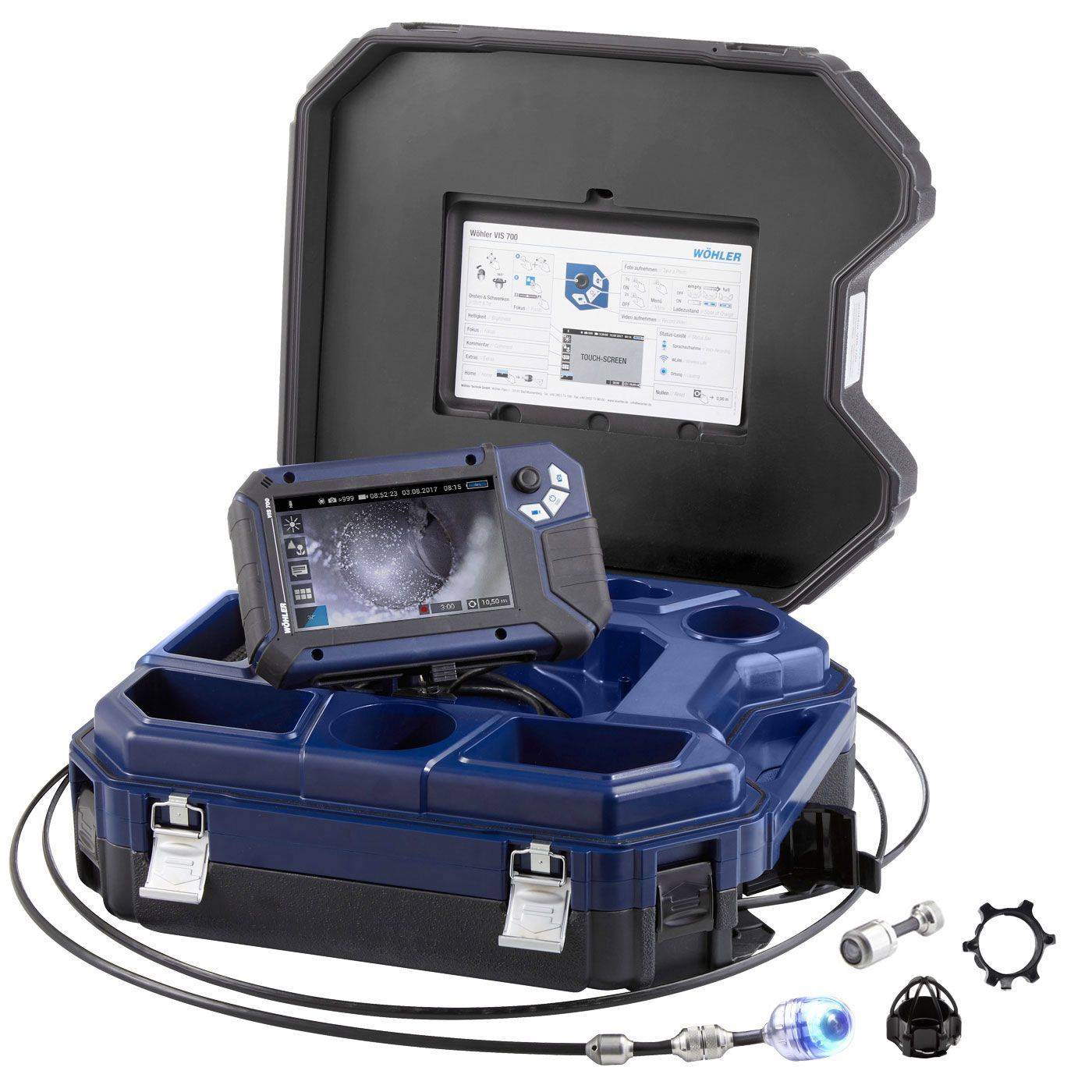

  • Wohler VIS 700 Monitor with 7" HD TFT-broad band color monitor incl. 5' connection cable
  • Glare shield
  • Li-Ion battery
  • Wohler HD miniature camera head 1", detachable
  • Wohler HD pan- and tiltable camera head 1.5", detachable
  • SD Card 32 GB
  • Camera rod 0.34" x 0.22" – 100' long
  • 3 replacement plastic domes
  • Anti-slide mat
  • USB charger with USB-C cable
  • Plastic case
  • Guidance sleeve
  • Guidance sleeve with protection cage
Monitor
Dimensions housing 10 x 6 x 2"
TFT-display 7" / 16:9 format
Video out FBAS signal
Weight 2 lbs
Power supply USB-C 5 V / 3 A
3.7 V / 11.4 Ah rechargeable
Li-Ion battery
Battery operating time 4 h (battery status in display)
Wohler HD pan- and tiltable camera head 1.5", detachable
Type 1/2.7" COLOR CMOS
Pixels 656 x 492 (NTSC)
Light sensitivity 0.5 Lux
Lens f = 0.09", F = 2.5
Viewing angle 70°
Light source 10 white LEDs
Degree of protection Waterproof to IP 67
Dimensions 1.5" x 2.5"
Weight 2 lbs
Operation temperature 32...104 °F
Storage temperature -4...122 °F
Transmitter frequency 512 Hz / 8.9 kHz / 9.2 kHz
Wohler HD miniature camera head 1", detachable
Type 1/2.7" COLOR CMOS
Pixels 656 x 492 (NTSC)
Light sensitivity 0.5 Lux
Lens f = 0.09", F = 2.5
Viewing angle 150°
Light source 10 white LEDs
Degree of protection Waterproof to IP 68
Dimensions 1" x 1.3"
Weight 0.5 lbs
Operation temperature 32...104 °F
Storage temperature -4...122 °F
Transmitter frequency 512 Hz / 8.9 kHz / 9.2 kHz
Camera rod
Length 100 ft
Diameter 33" x 22"
Distance measurement digital distance counter
