Wohler VIS 500 Chimney Camera with Soft Cable & Reel - 12143
Item #:
WLR-12143
Brand:
Wohler
Share this product:
12143 VIS 500 Chimney Camera with Soft Cable & Reel by Wohler

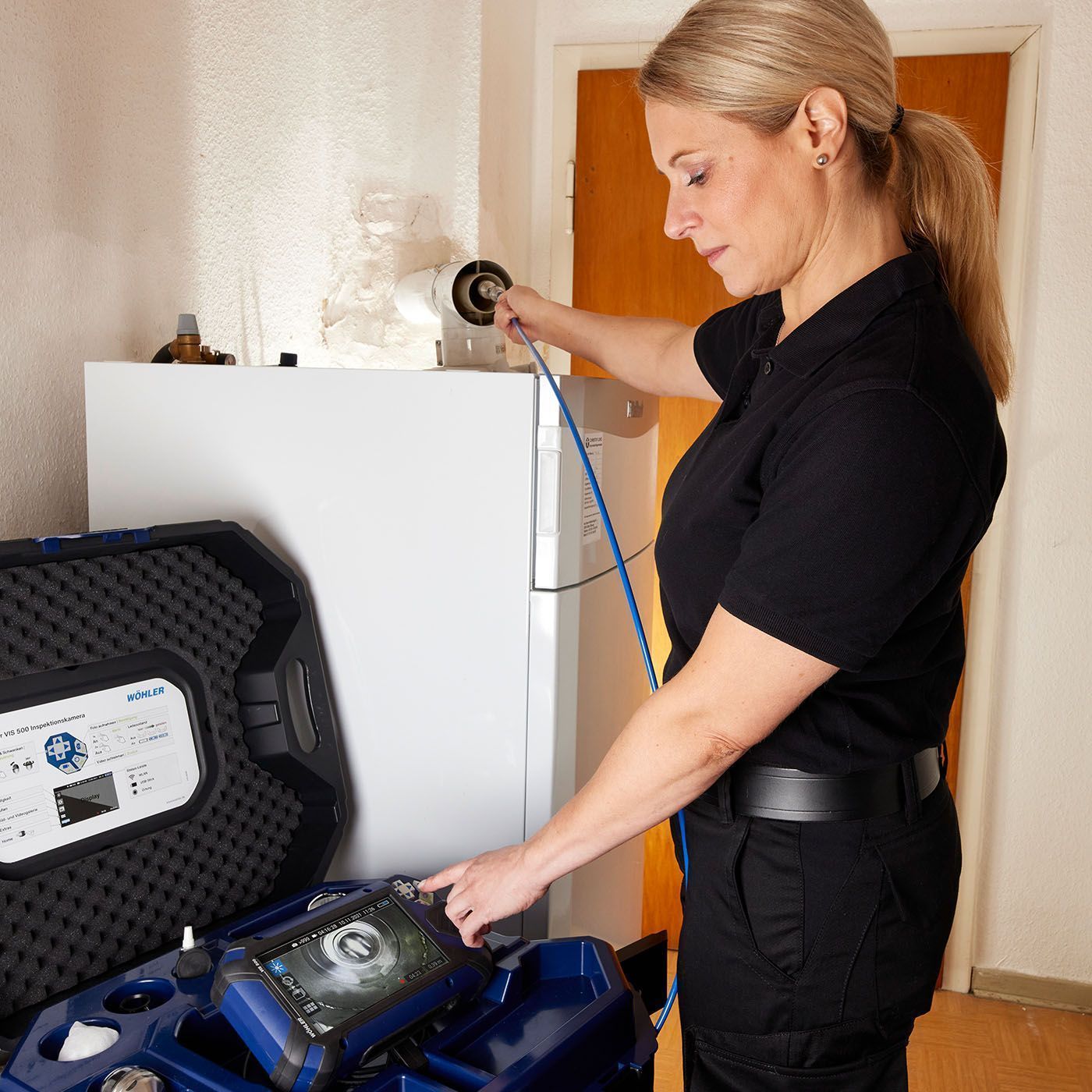

The perfect chimney sweep camera must be an all-rounder, suitable for any application. No matter whether for inspection from the roof or through an inspection opening from below: With the Wohler VIS 500 inspection camera, you are relying on a proven system from the specialist with brand new technology. Even dark chimneys are brightly illuminated by the camera LEDs and additional lighting, so you can see more than others. Due to the interchangable camera heads, you are perfectly equipped for all applications. You simply control the pan and tilt camera head via a key pad, so that you have everything in view. The monitor then provides you with razor-sharp and true-color images on which you can see every detail. This means you no longer have to spend time guessing. Your findings are based on facts that you can show your customer. You can choose to store images and videos in the camera's large internal memory or on a USB stick, which you can hand over to the customer if desired.

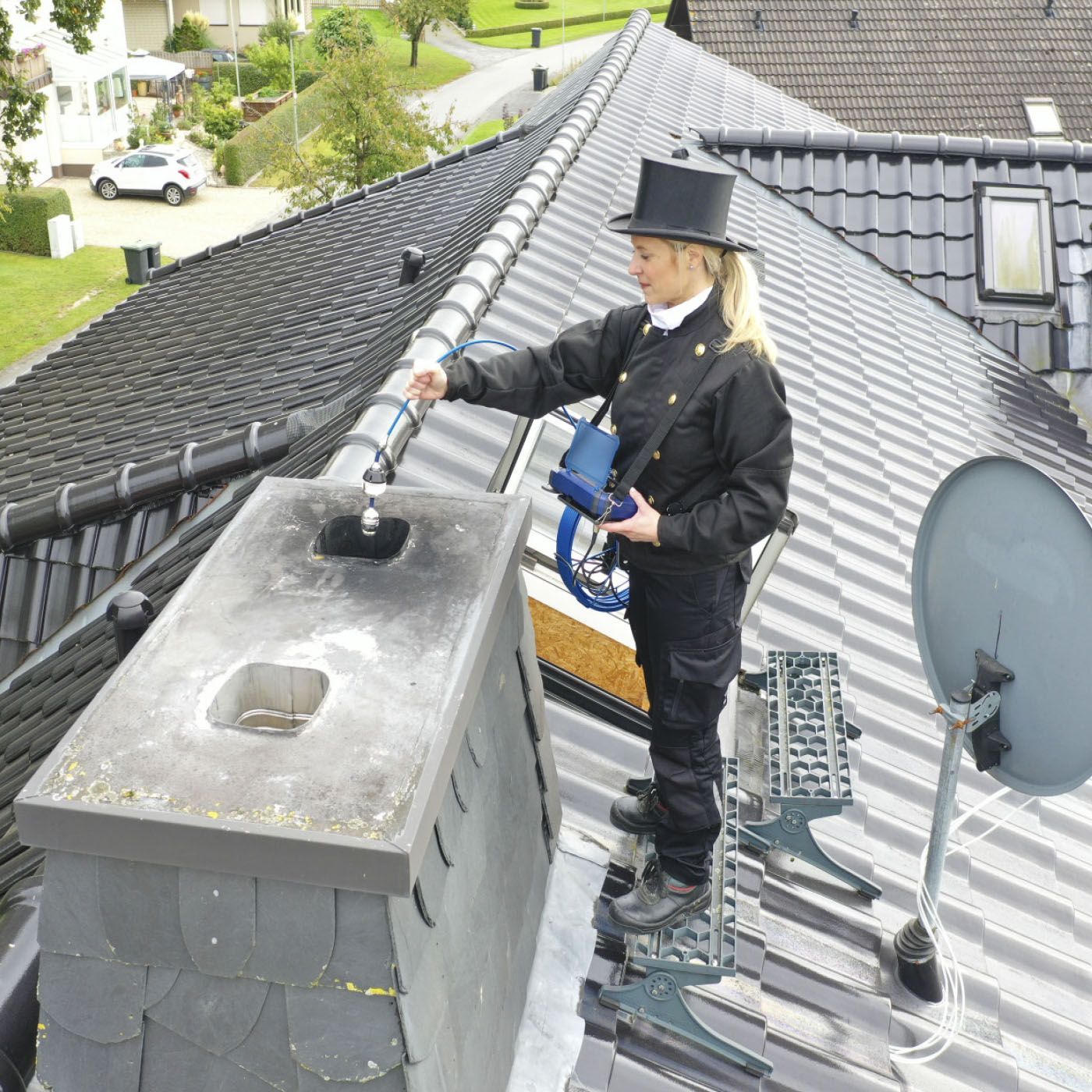

For inspections from the roof, carry the monitor in the carrying strap system in front of your body, so that both of your hands are free. It is a modular system, so there is a perfect version for every use. When your job is done, you can easily clean the whole camera.
Advantages
The universal camera for your applications:

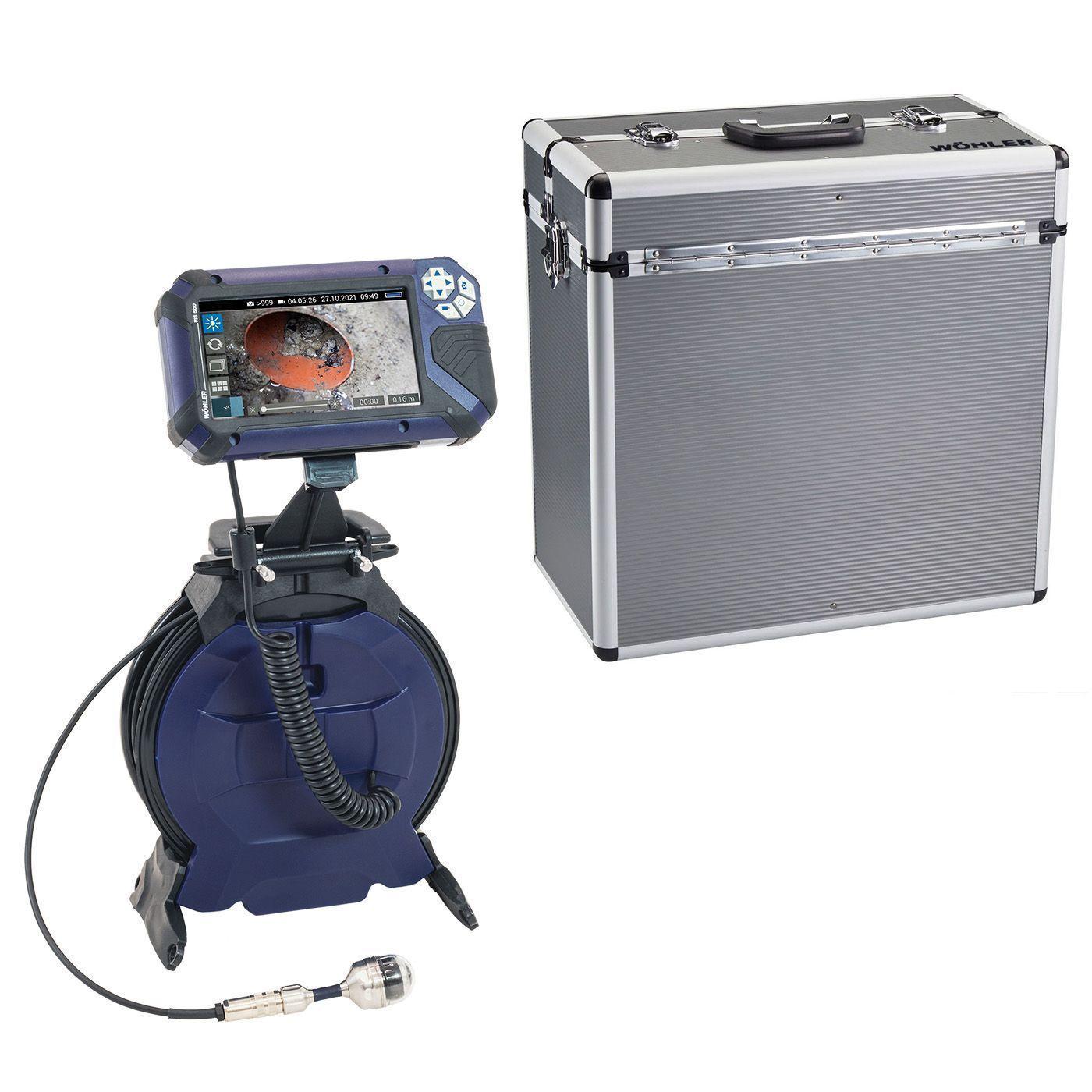

- Suitcase camera, monitor with cable camera for inspections from the roof, monitor with camera viper for inspections from the roof and ground
- Waterproof and pan and tilt camera head Ø 1.5" for an all-round view
- Future-proof thanks to Wohler video inspection app: operation, image view and report
- Convincing image quality with true-colour for fast and safe work
- Double-shell case with separate compartment for the camera rod for cleaning with water
- Bright illumination with camera LEDs and optional additional lighting
- Intuitive handling with uniform operating concept of the Wohler VIS series
Monitor | |
TFT display: | 7" / 16:9 Format |
Resolution: | 1.024 x 600 px |
Connecting cable: | 2m |
Power supply: | USB-C 5 V / 3 A 3,7 V / 11,4 Ah |
Operating time: | 6 h |
Dimensions: | 9.6" x 5.5" x 2.1" |
Weight: | 1.5 lbs |
Wohler pan / tilt camera head Ø 1.5" | |
Resolution: | 720 x 480 px (NTSC) |
Viewing angle: | 130° |
Light source: | white LEDs (12 pieces) |
Protection class: | waterproof IP 67 |
Dimensions: | Ø 1.5" x 2.4" |
Transmission frequency Locator: | 9.2 kHz / 8.9 kHz / 512 Hz |
Wohler miniature camera head Ø 1" | |
Resolution: | 720 x 576 px (PAL) 720 x 480 px (NTSC) |
Viewing angle: | 145° |
Light source: | weiße LEDs (12 pieces) |
Protection class: | pressurized waterproof IP 68 |
Dimensions: | Ø 1" x 1.5" |
Transmission frequency Locator: | 9.2 kHz / 8.9 kHz / 512 Hz |
Camera pushrod | |
Length: | 100' electr. distance counting |
