Oakton Eutech pH 200 1/8-DIN pH/ORP Controller - WD-56700-00
Item #:
WD-56700-00
Brand:
Oakton Instruments
Share this product:

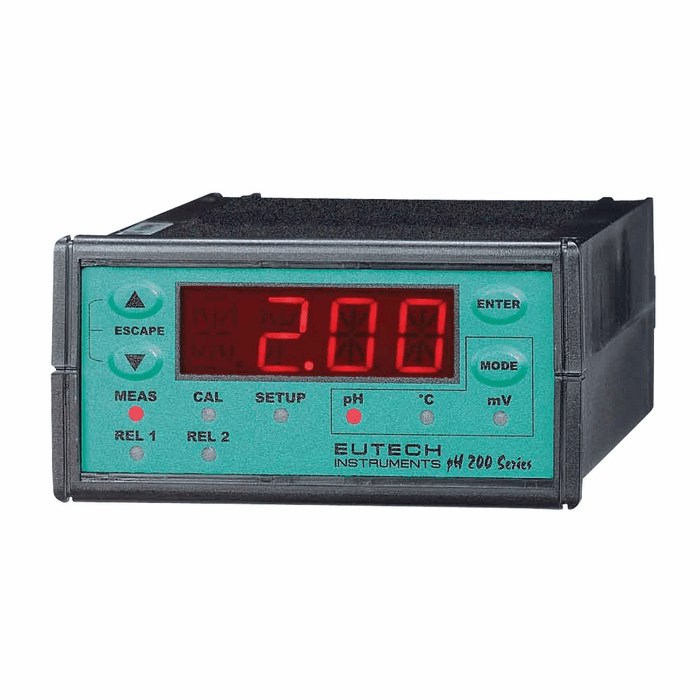

WD-56700-00 Eutech pH 200 1/8-DIN pH/ORP Controller by Oakton
Scrolling, 14-segment LED guides user through set-up functions
These sturdy, compact controllers withstand voltage fluctuations from 85 to 250V AC/DC! They are ideal for installation were electrical fluctuations are common, or install them in series throughout areas of differing electrical conditions.
Advanced setup mode le?s you s?t relay?val?es, select ?H or OR? co?tro?, s?lect ma?ual?or auto?ati? te?per?ture co?pensation, ?nd more? It?als? le?s you v?ew ?lec?rode slope ?nd ?ffset, and ?revious?calibra?ion poi?ts.?p> ?he ?/8 ?IN hous?ng ?s ready?to ?nstall in stand?rd pane?s a?d N?MA ?ated bo?es. Inc?ude? mounti?g h?rdw?re;?accepts?electrodes with?BNC connect?rs and 100 ?t RTD ATC e?ements.?p>
- ?
- R?liable ?ower supply from 85 to 250 V AC/DC with?tan?s v?ltage f?uctuati?ns ?
- Two sep?rat?ly ?dju?tab?e hysteresis bands prev?nts rap?d conta?t s?itching?at eith?r s?t point
- 4-20 ?A outpu? fo? re?ote mon?tor?ng or hard ?opy recordi?g ?li>?wo leve? passwo?d p?ote?tio? fo? ca?ibratio? an? setup para?ete?s?i> ?li>?ogg?e b?tween p? (o? mV? an? te?per?ture di?play R?mov?ble?termina? strips?off?r quick?and?eas? co?nections
Measures | pH, mV, °C |
pH Range | 0.00 to 14.00 pH |
pH Resolution | 0.01 pH |
pH Accuracy | ±0.01 pH |
pH Calibration | up to 2 points (1.68, 4.01, 6.86, 7.00, 9.00, 10.00, 12.45) |
mV Range | ±1000 mV |
mV Resolution | 1 mV |
mV Accuracy | ±2.0 mV |
mV Calibration | offset up to ±150 mV |
Temperature Range | -10.0 to 110.0°C |
Temperature Resolution | 0.1°C |
Temperature Accuracy | ±0.5°C |
Temperature Calibration | offset to ±10°C |
Control type | on/off |
Number of inputs | one |
Number of set points | two (high and low) |
Separate alarm relay | no |
Output Control | 2 SPDT nonpowered relays, 6A at 110 VAC; 250 VAC max. |
Output Current | 4 to 20 mA output, isolated |
Hysteresis | adjustable; 0.0 pH to 2.0 pH or 0 to 300 mV |
Input impedance | 10^12 |
Temperature Sensor | 2 or 3 wire 100W Pt RTD |
Temperature Compensation | Automatic or manual, from 0 to 100°C |
Password protection | two level (calibration and setup parameters) |
Display | scrolling 14-segment LED, four digit |
Operating Temperature | 0 to 50°C, 10 to 95% RH |
Housing | 1/8 DIN |
Dimensions | 48 x 96 x 150 mm; panel mount 91 x 45 mm |
Shipping weight | 3 lb (1.4 kg) |
