Oakton RH/TempLog Datalogger - WD-35710-10
Item #:
WD-35710-10
Brand:
Oakton Instruments
Share this product:

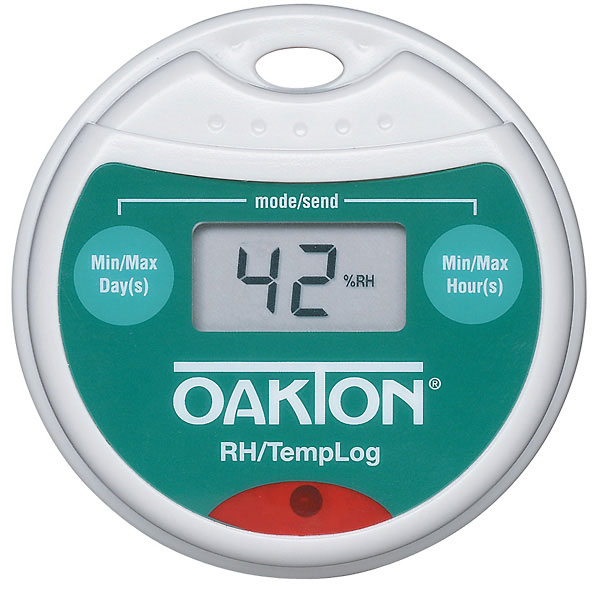

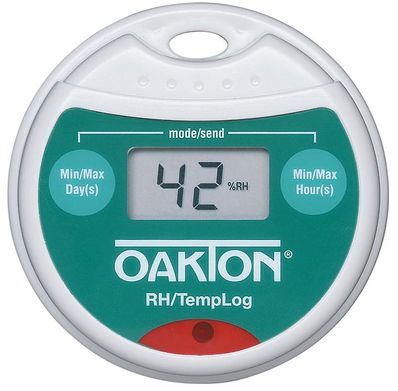

WD-35710-10 RH/TempLog Datalogger by Oakton
Automatically log humidity and temperature (°C or °F) readings for months, then download data to your computer or printer
The RH/TempLog let you effortlessly track temperature and humidity data for months! It?s ideal for shipping or storage, laboratories, factories, cold rooms, greenhouses and more. The compact splashproof housing is perfect for busy or rugged areas.
Software lets you set sampling rate and create graphs. It also lets you customize logging parameters: set the logging interval, select delayed or immediate start, set alarm limits, set to overwrite data or stop when full, and more. Software package is required for use with loggers; order separately.
Logger also has an external sensor input for an additional sensor. Use the stainless steel temperature sensor to measure remote temperature in air, liquids, soil,and more. Current, voltage, and contact sensors can be scaled to match range and units of your transmitter, controller or instrument output. Each sensor includes 8.2 ft cable.
- Memory holds up to 16000 readings
- Display shows current conditions; switch to min/max values by day(s)/hours(s) with a button press
- Built-in infrared (IRDA) transmitter sends data to optional IR printer
- Selectable sampling rate from once per 10 seconds to once per 2 hours
- Display flashes if alarm set point limits are exceeded
- Use optional external sensors to display and log additional external readings.
Range | Temperature: -30 to 50°C (-22 to 122°F) Humidity: 0 to 100% RH |
Resolution | Temperature: 0.5°C (1°F) Humidity: 0.5% |
Accuracy | Temperature: ±0.6°C (±1.1°F) Humidity: ±3% up to 90% RH; ±6% above 90% RH |
Memory | stores up to 16,000 measurements |
Output Infrared | IRDA (infrared data association) interface to printer or computer with IRDA port |
Output RS-232 | cable connection to computer (order cable/software package separately) |
Sampling Rate | selectable via software from once per 10 seconds to once per 2 hours |
Software | required to download readings to a computer and to set samping rage. Software can be used with multiple loggers. Windows 3x and Windows 95/98/NT compatible |
Display | two digit LCD, 3/8"H, with mode indicators |
Housing | IP60 rated |
External Sensor | optional general purpose temperature SS probe |
Power | internal lithium battery, 3.6 V TL5101 |
Dimensions | 2.8" dia x 0.9"D (7.2 cm dia x 2.3 cm D) |
Weight (unit only) | 0.2 lb (0.1 kg) |
