Oakton InfraPro 1, Basic Infrared Thermometer (model ST20) - WD-35639-00
Item #:
WD-35639-00
Brand:
Oakton Instruments
Share this product:

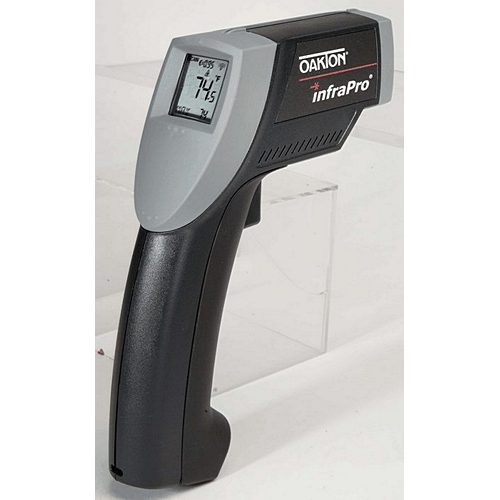

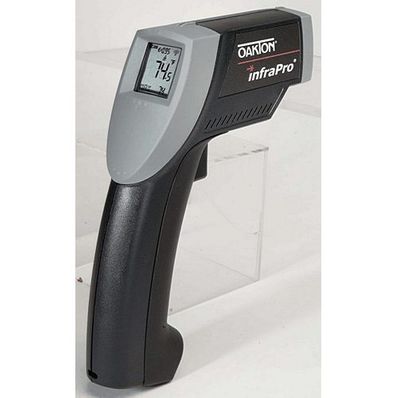

WD-35639-00 InfraPro 1, Basic Infrared Thermometer (model ST20) by Oakton
Have a wide variety of advanced features for your exact application!
Infrared thermometers with just the features you need for your exact application! Use noncontact infrared temperature measurement for areas that are difficult to reach or too hot to touch, to avoid contamination, to measure moving objects, and much more.
All InfraPro thermometers feature laser sighting to pinpoint your exact target. A bright single spot laser to pinpoint the center of your target. |The backlit display shows temperature readings in °F or °C; low-battery indication; underrange and overrange conditions; and and maximum readings.
These compact, lightweight thermometers are easy to carry with you. All thermometers feature a rubber grip and nose that improves resistance to shock, damage, water, and dust.
InfraPro 1: InfraPro 1:Our most economical model: has single spot laser and fixed emissivity
InfraPro 3: Adjustable emissivity, Accepts optional external probe, Displays maximum, minimum, average and differential readings, Trigger lock for long term monitoring, Memory holds up to 12 points
InfraPro 4: All the features of the InfraPro 3, plus expanded temperature range
50:1 optical resolution— accurately read a 3" target from 10 ft away!
InfraPro 5: All the features of the InfraPro 4, plus intrinsically safe rating intrinsically safe rating (Class I Division 1, Groups A, B, C, D and Class I, Zone 0, AEx ia IIC, T4 at 50°C)
Includes external probe WD-35629-50
- Laser sighting pinpoints exact target
- Select from fixed or adjustable emissivity—adjustable emissivity lets you measure a variety of surfaces more accurately
- Backlit display for easy reading even in the dark
- Automatically display maximum reading
- Hold function freezes reading
- °C/°F selectable
Range | InfraPro 1: -32 to 545°C (-25 to 950°F) InfraPro 3: -32 to 600°C (-25 to 1100°F) InfraPro 4, 5: -32 to 760°C (-25 to 1400°F) |
Resolution | 0.2°C (0.5°F) |
Accuracy | ±1% of reading or ±1°C (±2°F), whichever is greater |
Repeatability | ±0.5% of reading or ±1°C (±2°F), whichever is greater |
Spectral response | 8 to 14 µm |
Response time | 500 msec |
Emissivity | InfraPro 1: fixed at 0.95 InfraPro 3, 4, 5: adjustable from 0.10 to 1.00 |
Laser Sighting | single spot, Class II laser |
Distance-to-target size ratio | InfraPro 1: 12:1 InfraPro 3: 30:1 InfraPro 4, 5: 50:1 |
Operating Range | 0 to 50°C (32 to 122°F) |
Power | 9 V battery |
Battery life | 10 hours continuous |
Dimensions | 8"L x 6"W x 2"H (20 x 15.3 x 5 cm) |
Weight (unit only) | 11 oz (320 g) |
