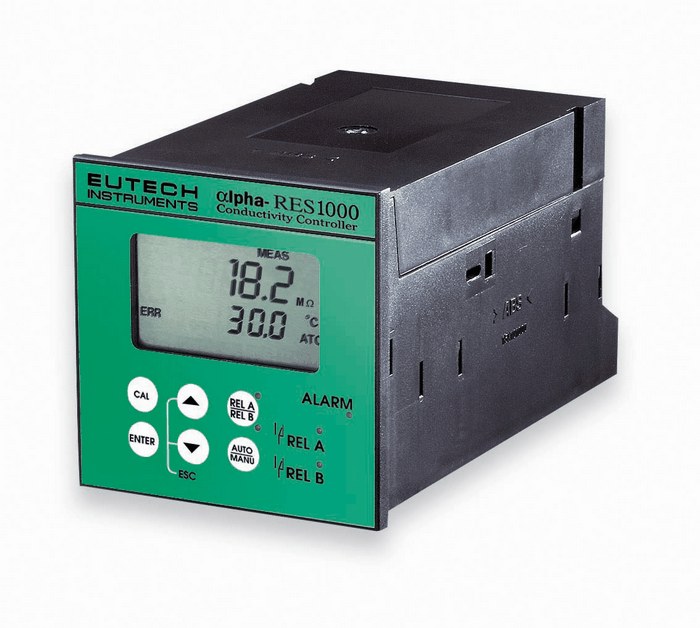

Oakton Eutech CON 1000 Conductivity 1/4-DIN Controller, 220VAC 50/60Hz - WD-19506-05

WD-19506-05 Eutech CON 1000 Conductivity 1/4-DIN Controller, 220VAC 50/60Hz by Oakton

Fast on/off control with high ±0.5% accuracy- a performance breakthrough!

Eutech Instruments 1000 series 1/4 DIN conductivity and resistivity controllers have an advanced set-up mode to easily customize features. Their 0 to 2000 second selectable time delay and adjustable set point hysteresis bands mean you can tailor control relay action to meet your needs.

Each unit is selectable for isolated 0-20 or 4-20 mA transmitter/recorder output; 110 or 220 VAC; normally open or closed relays; and manual or automatic temperature compensation. The compact 1/4 DIN size fits into standard panel cutouts. The IP54 rated front panel keypad is weather resistant. Includes mounting hardware.

• Large dual LCD shows measurement plus temperature simultaneously
• Two set point, two SPDT relay operation... choose from lo/lo, lo/hi,or hi/hi control
• Separate alarm relay
• View control set points and other set up information with a button press
• Adjustable temperature coefficient from 0.00 to 10.00% per °C
• Choice of 0.01, 0.1, 1.0 or 10.0 cell constants
• Push button one-point calibration
• Two level password protection prevents tampering with settings
• LED indicators signal control activities to monitor controller status
• Built-in memory backup maintains set up if power fails
