Sensorex FCL502 Amperometric Free Chlorine Sensor, 0-2 ppm, Ver. 5

FCL502 Amperometric Free Chlorine Sensor, 0-2 ppm, Ver. 5 by Sensorex

The FCL series (free chlorine sensors) feature amperometric measurement technology. Designed for disinfection applications in water treatment, for pools, etc., these sensors are available in three ranges for detecting ppm level of free chlorine. Choose the FCL502 for 0-2ppm, FCL505 for 0-5ppm and FCL510 for 0-10ppm of free chlorine.

Typical applications include:

• Industrial wastewater
• Cooling water
• Bottle rinsing
• Irrigation water in agriculture

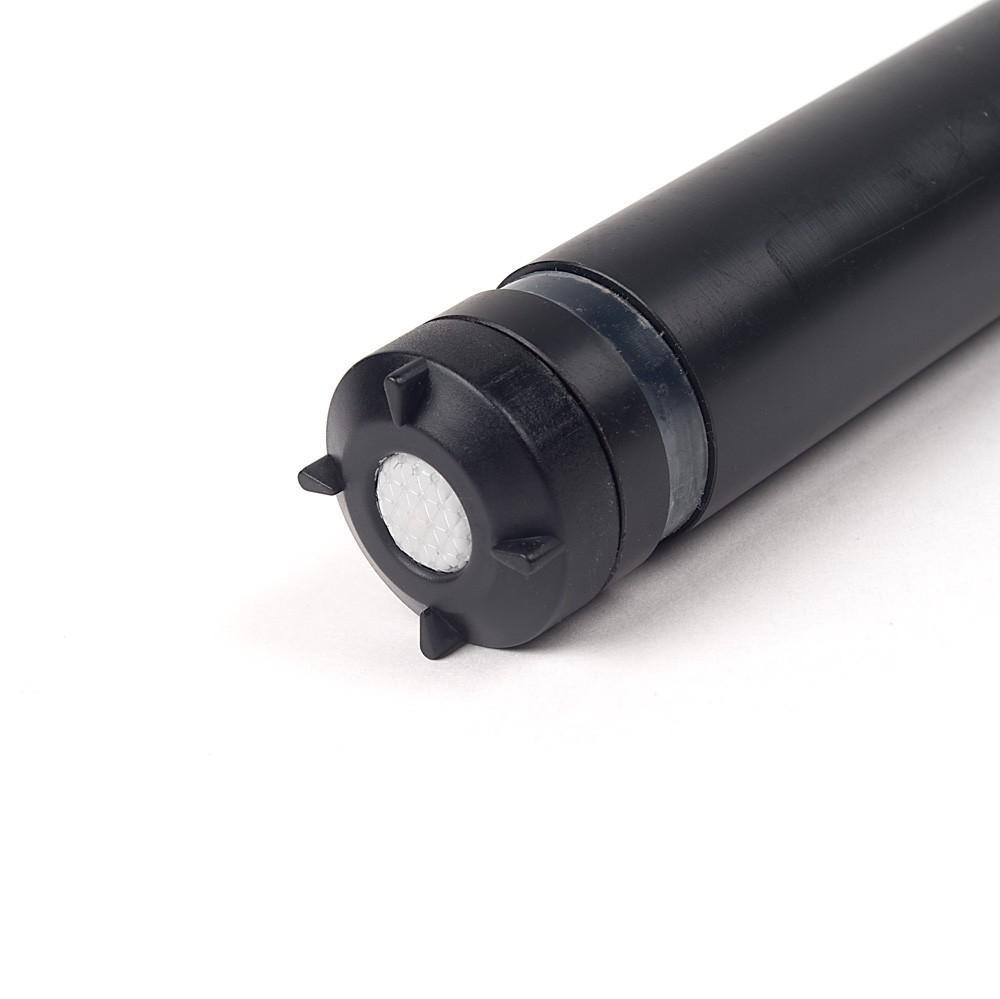

Sensors output a 4-20mA signal scaled to 0-2, 0-5 or 0-10ppm. Membrane cap and fill solution are easily replaceable to maximize sensor life.

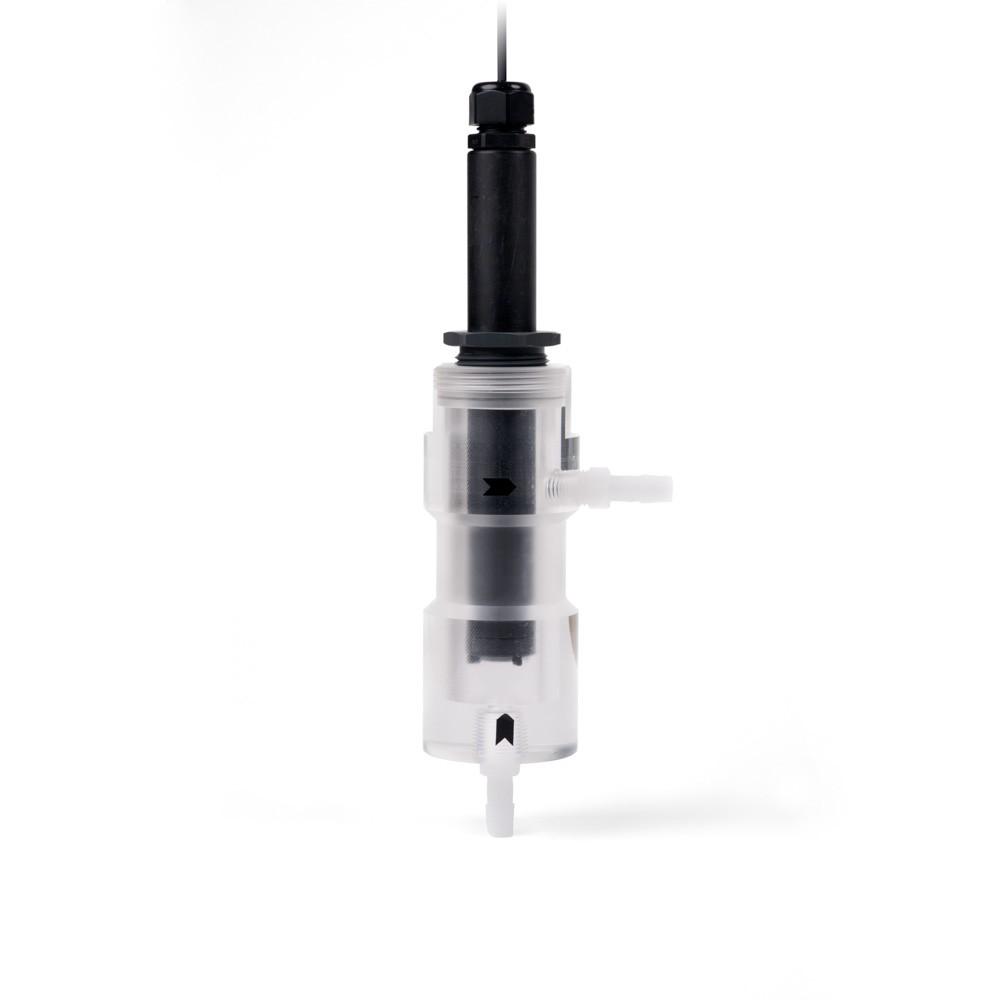

Sensors can be used in new installations with Sensorex flow cell or installed as a replacement for other 4-20mA output free chlorine sensors (Consult with Sensorex for compatiblity).

An optional flow meter (FM001) is available to help provide consistent flow for added system stability.

Features

• Amperometric Sensor Technology
• Real Time Continuous Measurement
• Ranges: 0-2, 0-5 or 0-10ppm
• Built-In Temperature Compensation
• Large Electrolyte ReservoirReplaceable Membrane and Electrolyte
