Schaefer 20" White Fan with Pedestal Stand - 20PFR
Item #:
SCH-20PFR
Brand:
Schaefer
Share this product:
**Due to the actual dimensions and/or weight of your order, the final shipping charge will be higher. You will be notified before shipping. You must confirm any revisions to your order's total.

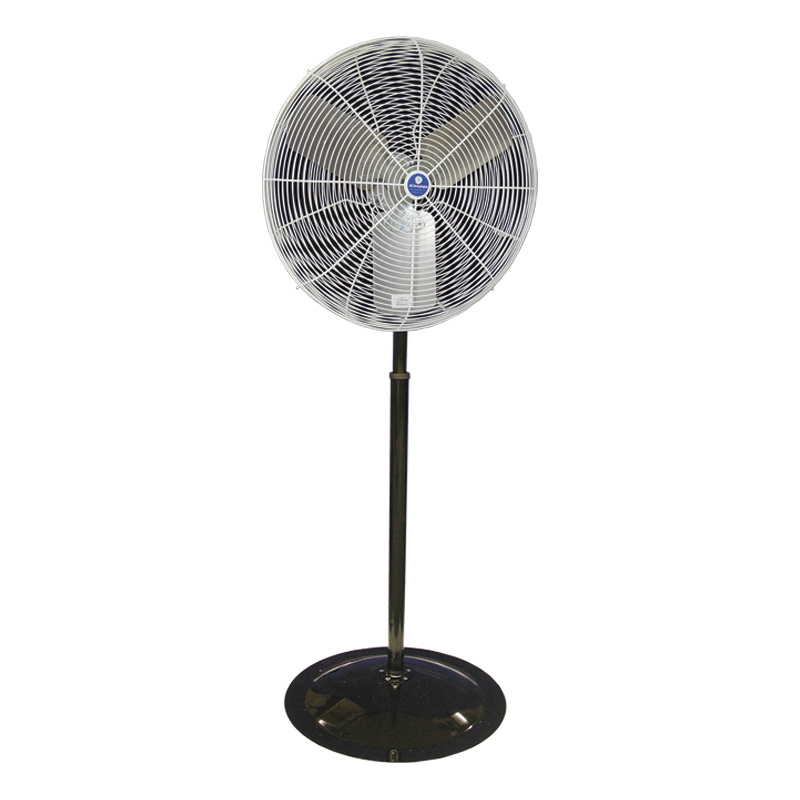

20PFR 20" White Fan with Pedestal Stand by Schaefer
When you're tired of replacing damaged pedestals, use these OSHA-compliant pedestal fans with heavy-duty pedestal mounts, designed to last many years. These fans deliver quiet, powerful, efficient, and long-lasting air movement. Use these rugged, portable fans in warehouses, work areas, loading docks, greenhouses, farms, and other locations where quality matters.
Features and Benefits:
- OSHA-compliant guards
- Round and tripod pedestal models available
- Matched direct-drive motors and blades for highest achievable levels of airflow - rated up to 12,000+ CFM
- Energy-efficient design for additional cost savings - draws as little as 1.6 amps
- Heavy-duty, maintenance-free, 2- and 3-speed motors for long life
- Optional wheel kit (FPR-Wheelkit-B) and mist rings available for select models
| Blade Color | Metallic |
| Blade Material | Aluminum |
| Brand | Schaefer |
| CFM (free air) | 4050 |
| CFM (high) | 4050 |
| CFM (low) | 3000 |
| CFM Calculation Standard | ANSI/AMCA Standard 230-99 |
| CFM Range (Free Air) | 2501 - 5000 |
| Component Certifications | Motor - CSA |
| Cord | Included - Wired |
| Cord Length (feet) | 10 |
| Country of Origin | US |
| Description | 20" OSHA Pedestal Fan, White Fan, Black Round Pedestal |
| Diameter (inches) | 20 |
| Drive Type | Direct |
| Enclosure | TEAO |
| Fan Diameter Range (inches) | 20 |
| Fixed or Portable | Portable |
| Frequency (Hz) | 60 |
| Guard Color | White |
| Guard Material & Coating | Powder Coated Steel |
| Guard Spacing (inches) | 1/2 OSHA |
| Mount Type Included | Pedestal |
| Nameplate Amps | 2.9/1.6 |
| Number of Wings | 3 |
| Oscillating | No |
| Phase | 1 |
| Power (hp) | 1/4 |
| Product Color | White |
| RPM 60 Hz Motor | 1000-1200 |
| Speed Control Compatible | No |
| Speeds | 2 |
| Switch | On product |
| Thermal Protection | Yes |
| VFD Compatible | No |
| Voltage | 115 |
