Sauermann Si-CA 130 Gas Analyzer Kit 3AH, three gas sensors (O2, CO, NO), 7" (180mm) Probe, ABS hard plastic carrying case - 27512

Item #:
SAU-27512
Brand:
Sauermann
Sauermann Si-CA 130 Gas Analyzer Kit 3AH, three gas sensors (O2, CO, NO), 7" (180mm) Probe, ABS hard plastic carrying case - 27512
$2,480.82
Qty
Ask a Question
Send This Page to a Friend
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Sauermann Si-CA 130 Gas Analyzer Kit 3AH, three gas sensors (O2, CO, NO), 7" (180mm) Probe, ABS hard plastic carrying case - 27512

Sauermann Si-CA 130 Gas Analyzer Kit 3AH, three gas sensors (O2, CO, NO), 7" (180mm) Probe, ABS hard plastic carrying case...

$2,480.82

27512 Si-CA 130 Gas Analyzer Kit 3AH, three gas sensors (O2, CO, NO), 7" (180mm) Probe, ABS hard plastic carrying case by Sauermann

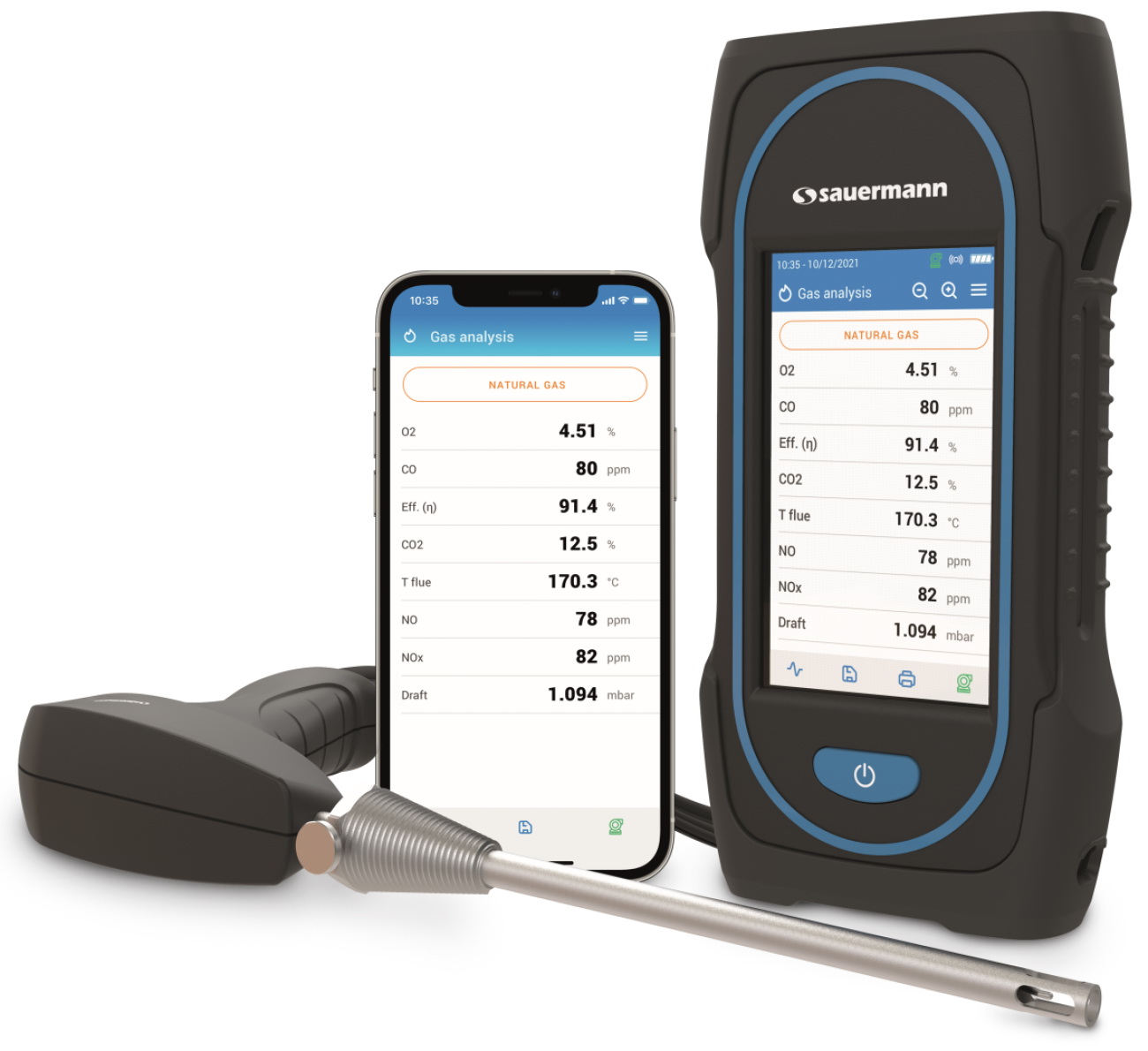

The Si-CA 130 features a touch-screen display and comes with PC-based management software (in addition to the smartphone app) for more in-depth combustion gas analysis. The three field-replaceable cells and sensors offer expanded measurement capability.

  • Field replaceable precalibrated sensors
  • Large color touch screen
  • CO sensor measurement up to 8000 ppm
  • Data management with automatic logging & report creation trough app/PC software
  • Lightweight, only 350 g (12 oz)
  • Up to three gas sensors O2, CO and NO or Low NO (for NOx)
  • Predictive maintenance with estimated sensor life & calibration reminders
  • Draft & differential pressure measurements
  • Calculated CO2 % value
  • Auto pump cut-off for high CO levels (user-adjustable)
  • NOx capable with NO sensor (optional)
  • One Touch Pump On/Off with Purge
  • PC software with wireless and USB connectivity
  • Combustion efficiency & excess air calculations
  • Graphical data display
  • Customizable gas analysis screen
  • Sample conditioning unit for low NOx & high moisture applications
  • CO & CO2 Monitoring in Ambient Air
  • Smart Air Temperature Probe
  • Protective rubber holster
  • Maintenance contracts and extended warranties available

Kit Includes:

  • 1 Si-CA 130 analyzer
  • 1 O2 gas sensors
  • 1 CO gas sensors
  • 1 NO gas sensors
  • 1 Low NO gas sensors
  • 1 Protective rubber holster
  • 1 Flue gas probe with dual hose
  • 1 Water trap with filter
  • 1 AC power supply / charger
  • 1 USB cable
  • 1 Mobile app & PC software
  • 1 Internal wireless communication module
  • 1 Carrying case
  • 1 Quick Start Guide
  • 1 Calibration certificate
Parameter specifications
Parameter Sensor Measuring range Resolution Accuracy(1) T90 response time
O2 Electrochemical 0 to 25% 0.01% ±0.2% vol < 30 s
CO Electrochemical 0 to 8000 ppm 1 ppm ±8 ppm < 160 ppm
±5% rdg up to 2000 ppm
±10% rdg > 2000 ppm		 < 40 s
CO(H2) Electrochemical 0 to 8000 ppm 1 ppm ±8 ppm < 160 ppm
±5% rdg up to 2000 ppm
±10% rdg > 2000 ppm		 < 40 s
CO2 Calculated 0 to 99.9% 0.1% - -
NO (optional) Electrochemical 0 to 5000 ppm 1 ppm ±5 ppm < 100 ppm
±5% rdg > 100 ppm		 < 40 s
Low NO Electrochemical 0 to 300 ppm 0.1 ppm ±1.5 ppm < 30 ppm
±5 % rdg > 30 ppm		 < 40 s
NOx (optional) Calculated 0 to 7500 ppm 1 ppm - -
Low NOx Calculated 0 to 450 ppm 0.1 ppm - -
Flue temperature TcK -20 to +1250 °C
-4 to +2282 °F		 0.1 °C
0.1 °F		 ±2 °C or ±0.5% rdg(2)
±3.6 °F or ±0.5% rdg(2)		 -
Air temperature NTC or TcK -20 to +120 °C
-4 to +248 °F		 0.1 °C
0.1 °F		 ±2 °C
±3.6 °F 		-
Pt100 -40 to 250 °C
-40 to 482 °F		 0.1 °C
0.1 °F		 ±(0.3% rdg ±0.25) °C
-40°F to 32 °F: ±(-0.3% rdg +0.6) °F
32°F to 482 °F: ±(0.3% rdg +0.4) °F		 -
Differential temperature Calculated 0 to 1250 °C
0 to 2282 °F		 0.1 °C
0.1 °F		 - -
Pressure/Draft Semiconductor -200 to +200 mbar
-80 to +80 inH2O		 0.01 mbar
0.001 inH2O		 ±1% rdg ±0.03 mbar
±1% rdg ±0.012 inH2O		 -
High accuracy draft Semiconductor 500 Pa 0.1 Pa ±0.5 Pa < 10 Pa ±3 Pa
up to 150 Pa
±2 % rdg > 150 Pa		 -
Excess air Calculated 0 to 999% 1% - -
Efficiency Calculated 0 to 100% (Gross/ HHV(3)) 0.1% - -
Efficiency (condensation) Calculated 0 to 125% (Net/ LHV(4)) 0.1% - -
Stack Gas velocity Calculated 0 to 99 m/s
0 to 19,500 fpm		 0.1 m/s
1 fpm		 - -
(1) All accuracies indicated in this document were stated in laboratory conditions at 20 °C (68 °F) and 1013 mbar and can be guaranteed for measurement carried out in the same conditions.
(2) Accuracy given for the analyzer only.
(3) For Higher Heating Value / (4) For Lower Heating Value

General features
Dimensions
19.4 x 9.9 x 4.9 cm (7.5 x 3.5 x 4.9")
Weight
350 g (12 oz)
Display
Color Touch Screen with Graphing; Size: 480 x 272 pixels
Keypad
1 On-Off key
Material
ABS-PC
Protection
IP42
Connection
- Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz with a transmit power of 1 dBm.
Range up to 15 m (50 ft), depending on smartphone radio strength.
Minimum required versions: Android 8.0, iOS 12.4, BLE 4.0 Low Energy
- USB
Power supply
Rechargeable battery, USB power supply
Li-Ion 5100 mA/h 3.6 V battery / Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz
Mains unit: 5 Vdc/2A
Battery
Battery life > 8 h; Charging time: Fully charge: < 6.5 h; 50%: < 2.5 h
Environmental conditions of use
Temperature: from -5 to 45 °C (23 to 113 °F),
Hygrometry: in non-condensing conditions (< 85% RH)
Maximum altitude: 2000 m (6561')
Storage temperature
From -20 to 50 °C (-4 to 122 °F)
Languages
English, French, German, Spanish, Italian, Portuguese
European Union Directives
2014/53/EU (RED); 2015/863 EU (RoHS 3)
Regulations
EN 50379-1 and EN 50379-2; UNI 7129; UNI 11137; UNI 10389; UNI 10845; UL & cUL Certification; BS 7967:2015; BS EN 50543:2011; UNE 60670-10; ES.02173.ES; TÜV SÜD Certification
