Gas Clip Technologies MGC-DOCK-PUMP MGC Pump Dock - Case, Regulator, Power Supply & USB Memory (For use with MGC Pump Instruments)
Item #:
MGC-DOCK-PUMP
Brand:
Gas Clip Technologies
Share this product:
MGC-DOCK-PUMP MGC Pump Dock - Case, Regulator, Power Supply & USB Memory (For use with MGC Pump Instruments) by Gas Clip Technologies

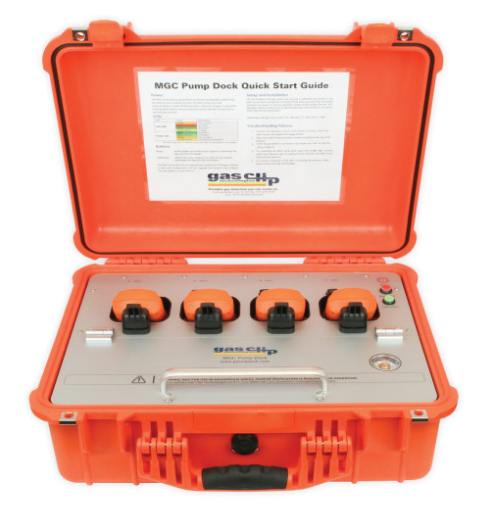

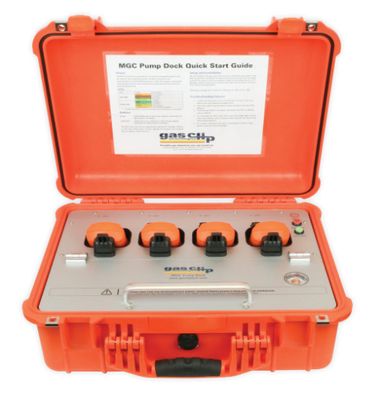

The Gas Clip Technologies MGC Pump Dock is an all-in-one stand-alone docking station designed for maximum testing efficiency and portability. It tests up to four units simultaneously, reducing the testing time and gas usage. With only two buttons, it's simple to train workers how to use it for regular bump tests, occasional calibrations, or to deactivate detectors. It can be optionally housed in a rugged case or a wall-mountable metal enclosure. Logs are stored on a USB flash drive which can easily be transferred to a computer for analysis.
Each Dock comes with the following standard features:
- Test 4 units at one time, up to 12 instruments in a minute
- Easy 1 button operation
- Robust rechargeable internal battery, up to 1500 tests before recharging
- Internal gas cylinder regulator and pressure gauge
- USB flash memory for bump test and event log storage
- Optional unit configuration and firmware updates via GCT Manager Software
- Rugged case or Wall Mount Dock case
- No computer required to operate
Size | 19.78" x 15.77" x 7.41" (50.2 x 40 x 18.8 cm) Wall Mount: 17.6" x 12" x 7.3" (45 x 30 x 18.6 cm) |
Warranty | 2 Years |
Battery Type | Rechargeable Lithium Ion 2 months @ 100 instrument bump test/day |
Memory | USB 4+ GB Standard |
Test Performed | Bump Test and Calibration |
Information Stored | Bump/Cal Logs, Individual Monitor Logs, Firmware and Unit Configurations |
Gases Available | LEL, H2S, CO and O2 |
Unit Compatibility | Works with all MGC Pump monitors |
Calibration Gas | Compatible with 58L or 116L cylinders. Docks also available in a High Volume/High Pressure model. |
