FLIR Imaging Moisture Meter Pro Kit includes MR160 with MR08 Probe - MR160-KIT5

Item #:

FL-MR160-KIT5

Brand:

FLIR

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

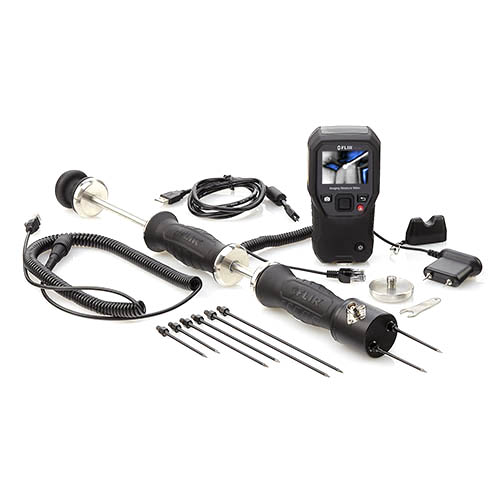

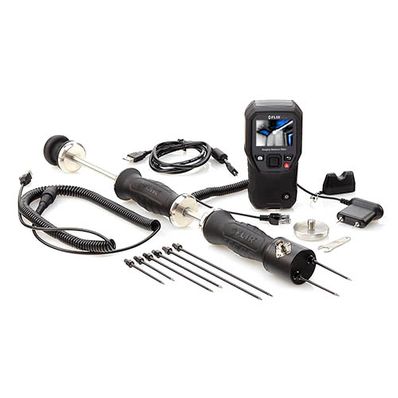

MR160-KIT5 Imaging Moisture Meter Pro Kit includes MR160 with MR08 Probe by FLIR

The FLIR MR160 Imaging Moisture Meter is the first of its kind. Equipped with a built-in thermal camera, MR160 is the only moisture meter with the power to show you exactly where to measure.

Featuring Infrared Guided Measurement (IGM™) technology, the MR160 helps you quickly scan and target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings.

An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. Built tough with an industry-leading warranty, the MR160 can serve as your go-to troubleshooting tool right out of the box - or as the perfect complement to any high resolution thermal camera you already own - helping you find hidden moisture issues and capture reliable data more efficiently.

IDENTIFY AND VERIFY WITH ONE TOOL

80 x 60 Lepton® thermal imager powers IGM technology
Document thermal images and moisture readings on one screen
Review images and generate reports with free FLIR Tools software

TROUBLESHOOT QUICKLY

Pinless technology for fast non-intrusive measurements
External pin probe included for contact moisture measurements
Easy targeting with laser pointer and display cross-hairs

PORTABLE, TOUGH AND DURABLE

Industry-leading warranty
Small form factor to conveniently carry with you
Internal rechargeable battery with USB

Specifications

FLIR MR160: Imaging Moisture Meter
Thermal imaging detector	FLIR Lepton® microbolometer
Image Calibration	Automatic
Thermal image resolution (W x H)	4800 pixels (80 x 60)
Spectral response	8-14μm
Field of view (W x H)	51° x 38°
Thermal sensitivity	<0.15°C
Image frame rate	9 Hz
Image Display	Color moisture alert
Minimum focus distance	10cm (4")
Moisture Measurement
Pin moisture via external probe range (accuracy)	0-100% WME (± 5%)
Pin moisture groups	9 material groups
Pinless moisture range	0-100 relative measurement
Pinless Measurement Depth	0.75" (19mm) Max
Measurement resolution	0.1
Response time pinless	100ms
Response time pin mode	750ms
General information
Display (W x H)	QVGA (320 x 240 pixel) 2.3" 64k color TFT
Saved image file format	BMP with measurement values overlaid
Stored image capacity	9999 images
Laser orientation	Single laser pointer to center of thermal image
Power requirements	Integrated rechargable battery
Battery power - continuous run time	18 hours max
Battery power - typical usage	4 work weeks*
Battery	3.7 V, 3000 mAh Li-ion rechargeable via micro USB
Drop Test	9.8’ (3m)
Certification standards	EN61326 (EMC), EN61010 (battery + charger), EN60825-1 class 2 (Laser)
Agency approvals	FCC class B, CE, UL
Warranty	2 Yr Product, 10 Yr Thermal detector**
See FAQs at flir.com/MR160 * Register within 60 days of purchase at www.flir.com/testwarranty
