FLIR Industrial Industrial Insulation Tester and DMM Combination with VFD Mode Bluetooth METERLiNK and NIST - IM75-NIST
Item #:
FL-IM75-NIST
Brand:
FLIR
Share this product:

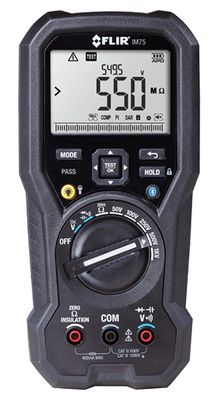

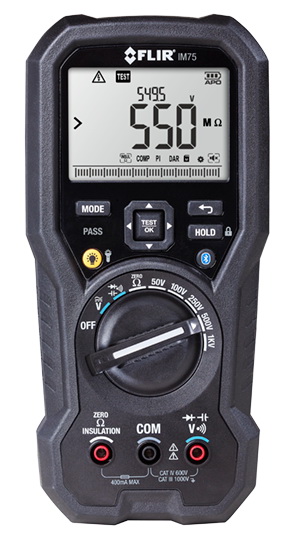

IM75-NIST Industrial Insulation Tester and DMM Combination with VFD Mode Bluetooth METERLiNK and NIST by FLIR
The FLIR IM75 is both an advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals. The IM75 includes several specialty insulation modes including: Polarization Index, Dielectric Absorption and Earth Bond Resistance. Insulation tests can be performed instantly, continuously and over a timed duration for in-depth assessment.
Features
- Combo Insulation / DMM in One: Have all the functions you need in one combination package – don’t run to the truck mid job for another meter!
- Advanced Insulation Modes: Confirm your insulation resistance Insulation Resistance up to 20 GΩ, PI, DAR, Earth Bond Resistance
- Versatile: Multiple ranges of resistance insulation test levels available for testing electrical power lines down to telecom and low voltage systems via rotary switch: 50V, 100V, 250V, 500V, 1000V
- Easy Compare: When reviewing results in Compare Mode, the dedicated Pass / Fail multi-color LED indicator makes determinations clear and visible. (NOTE COLORS)
- DMM Built-in: True RMS DMM measurements features reliable performance and 1000V range
- VFD Mode: Accurately analyze non-sinusoidal waveforms and noisy signals in VFD motors and drive controllers.
- METERLiNK Compatibility: Embed electrical measurements into thermal images captured by METERLiNK-enabled FLIR IR cameras for easier documentation.
- Bluetooth Connectivity: Connect to iOS™ and Android™ devices for remote diagnostics in hard-to-reach or hazardous areas. Also, upload data without the need for special cords.
- Bright Dual-LED Worklights: Make your work safer/easier in poorly lit locations – especially useful when the lights are out or obstacles block your inspection targets.
- Rugged & Shock-Resistant: Double-molded case design and extra thick rubber on the corners absorbs shock to enhance job-site reliability and long-haul durability (IP54, 2m Drop Test).
- Ready for work: Lots of accessories included: TA81 silicone CAT IV test leads with screw on silicone insulated alligator clips, TA50 Magnetic magnetic hanging strap, 6 x AAA batteries, User manual/CD
Includes
- TA81 CAT IV Silicone Insulated Test Probes with screw on insulated alligator clips
- TA50 Magnetic hanging strap
- 6 x AAA batteries
- User manual/CD
Max Range | Basic Accuracy | |
Insulation Resistance | 4M to 20GΩ | ±1.5% |
Insulation Test Voltages | 50, 100, 250, 500 and 1000V | ±3.0% |
DC Voltage | 1000.0V | ±0.1% |
AC Voltage | 1000.0 V | ±1.5% |
VFD AC Voltage | 1000.0V | ±1.5% |
Earth Bond Resistance | 40Ω to 40KΩ | ±1.5% |
Capacitance | 10 mF | ±1.2% |
Frequency (ACV) | 40kHz | ± 5 digits |
Diode Test | 2V | ±0.5% |
Continuity | 400.0Ω | ±0.5% |
General Information | ||
IP Rating, Drop Test | IP 54, 2m (6.6') | |
Category Rating | CAT III-1000V, CAT IV-600V | |
Bluetooth Range | 10m (32') | |
Battery Type | 6 x AAA | |
Memory | 99 internal storage locations | |
Operating Temperature | 32 to 122°F (0 to 50°C) | |
Warranty | Limited Lifetime |
