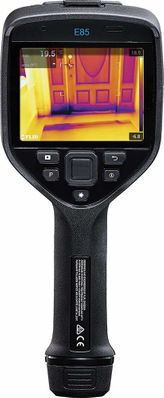

FLIR E85 Advanced Thermal Camera with MSX 384 × 288 Resolution/30Hz with 14° Lens - 78501-0201
Item #:
FL-78501-0201
Brand:
FLIR
Share this product:

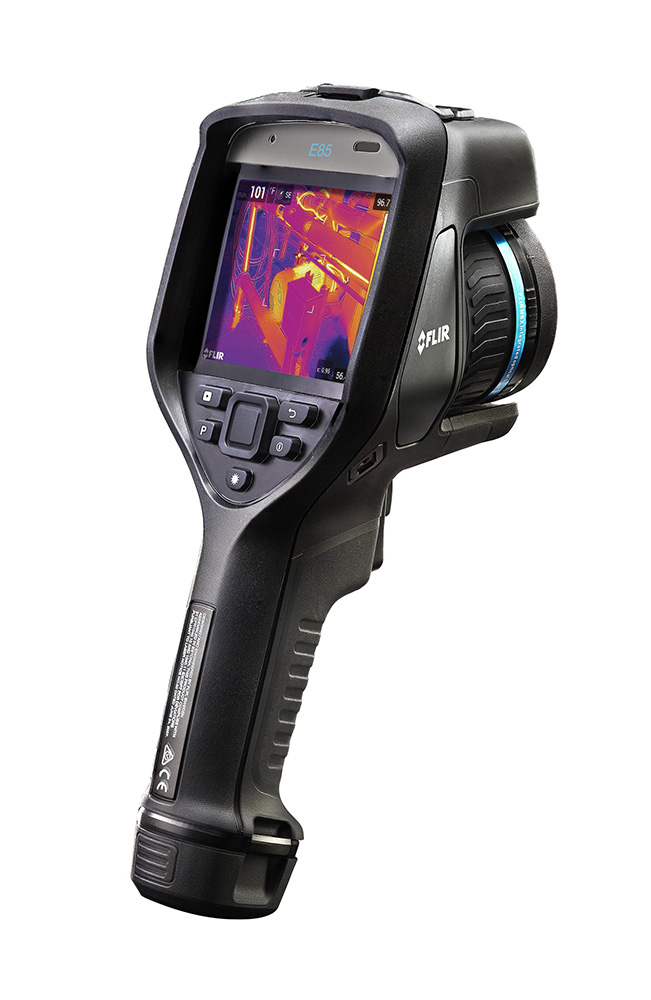

78501-0201 E85 Advanced Thermal Camera with MSX 384 × 288 Resolution/30Hz with 14° Lens by FLIR
The FLIR E85 is packed with the high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies. The 384 × 288 true native resolution offers more than 110,000 points of temperature measurement, while the laser distance meter provides data for measuring square area (m2 or ft2) on-screen.
LASER DISTANCE MEASUREMENT
- The laser distance meter aids in quick, precise autofocusing, so you can ensure accurate temperature measurements, every time.
INTELLIGENT AUTOCAL™ OPTICS
- FLIR engineered all new lenses for the E85 that you can auto-calibrate to your camera and share between cameras.
STREAMLINED REPORTING
- Customizable work folders, a built-in mic for voice annotation, and report generation features all help the E85 streamline your workday.
Features by Camera | E53 | E75 | E85 | E95 |
IR Resolution | 240 × 180 (43,200 pixels) | 320 × 240 (76,800 pixels) | 384 × 288 (110,592 pixels) | 464 × 348 (161,472 pixels) |
UltraMax® | - | 307,200 pixels | 442,368 pixels | 645,888 pixels |
Object Temperature Range | -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) Optional 300°C to 1000°C (572°F to 1830°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) 300°C to 1200°C (572°F to 2192°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) 300°C to 1500°C (572°F to 2732°F) |
Focus | Manual | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual 10 sec to 24 hours |
Time-lapse (Infrared) | - | - | - | 10 sec to 24 hours |
Laser Area Measurement | - | - | Yes | Yes |
Laser Distance Measurement | - | Yes, on-screen | Yes, on-screen | Yes, on-screen |
Measurement Presets | No measurement, center spot, hot spot, cold spot, 3 spots, hot spot-spot | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
Spotmeter | 3 in live mode | 1 in live mode | 3 in live mode | 3 in live mode |
Area | 1 in live mode | 1 in live mode | 3 in live mode | 3 in live mode |
Picture-in-Picture | Centered infrared area on the visual image | Resizable and movable | Resizable and movable | Resizable and movable |
Common Features | ||||
Detector Type and Pitch | Uncooled microbolometer, 17 μm | |||
Thermal Sensitivity/NETD | <0.03°C @ 30°C (86°F), 42° lens | |||
Spectral Range | 7.5 - 14.0 μm | |||
Image Frequency | 30 Hz | |||
Field of View (FOV) | 42° × 32° (10 mm lens), 24° × 18° (18 mm lens), 14° × 10° (29 mm lens) | |||
F-Number | f/1.3 | |||
Lens Identification | Automatic | |||
Digital Zoom | 1-4x continuous | |||
Image Presentation and Modes | ||||
Display | 4", 640 × 480 pixel touch screen LCD with auto-rotation | |||
Digital Camera | 5 MP, 53° × 41° FOV | |||
Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC | |||
Image Modes | Infrared, visual, MSX®, Picture-in-Picture | |||
MSX® | Embosses visual details on full resolution thermal image | |||
Measurement and Analysis | ||||
Accuracy | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) | |||
Alarms | Moisture alarm, insulation alarm, measurement alarms | |||
Color Alarm (Isotherm) | Above/below/interval/condensation/insulation | |||
Compass, GPS | Yes; automatic GPS image tagging | |||
METERLiNK® | Yes; several readings | |||
Laser Pointer | Yes; dedicated button | |||
Image Storage | ||||
Image Storage | Removable SD card (8 GB) | |||
Image File Format | Standard JPEG with measurement data included | |||
Video Recording and Streaming | ||||
Radiometric IR Video Recording | Real-time radiometric recording (.csq) | |||
Non-Radiometric IR or Visual Video | H.264 to memory card | |||
Radiometric IR Video Streaming | Yes, over UVC or Wi-Fi | |||
Non-Radiometric IR Video Streaming | H.264 or MPEG-4 over Wi-Fi; MJPEG over UVC or Wi-Fi | |||
Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi, DisplayPort | |||
Video Out | DisplayPort over USB Type-C | |||
Additional Data | ||||
Battery Type | Li-ion battery, charged in camera or on separate charger | |||
Battery Operating Time | Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use | |||
Operating Temperature Range | -15°C to 50°C (5°F to 122°F) | |||
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) | |||
Shock/Vibration/Encapsulation; Safety | 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1 | |||
Weight/Dimensions | 1 kg (2.2 lbs), 27.8 × 11.6 × 11.3 cm (11.0 × 4.6 × 4.4 in) | |||
Box Contents | ||||
Infrared camera with lens, battery (2 ea), battery charger, front protection, straps (hand, wrist), hard transport case, lanyards, lens caps, lens cleaning cloth, power supplies, 8 GB SD card, Torx wrench, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C, USB Type-C to HDMI) |
