FLIR E75 Advanced Thermal Camera Kit with MSX 320 x 240 Resolution/30Hz with 14° Lens with FLIR Thermal Studio Pro - 12 Month Subscription - 78501-0101-KIT
Item #:
FL-78501-0101-KIT
Brand:
FLIR
Share this product:

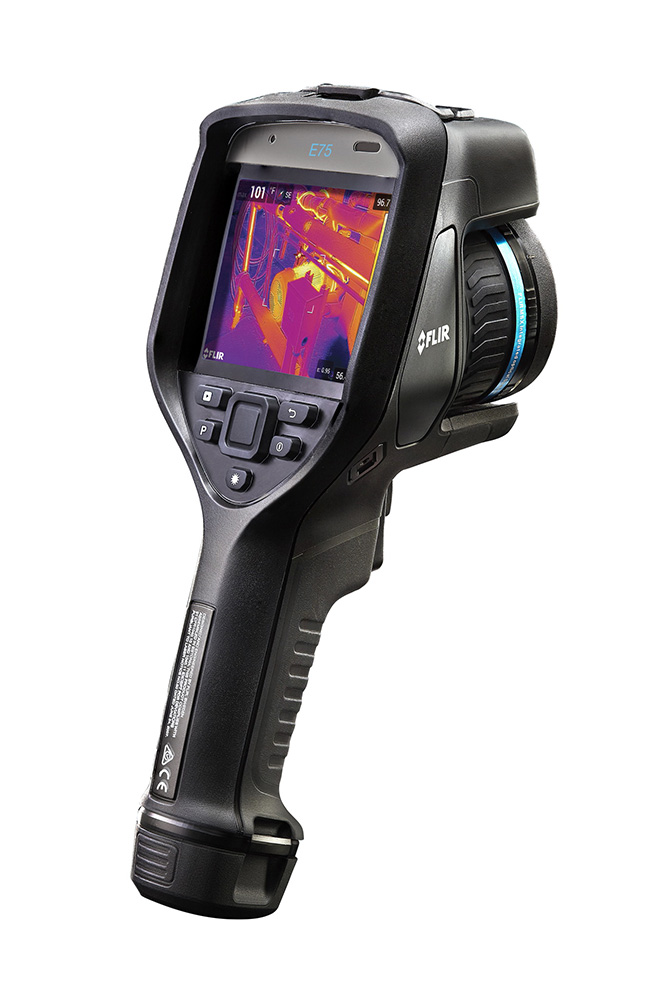

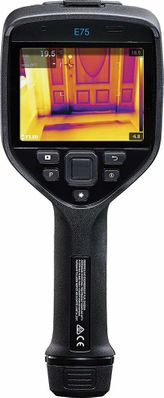

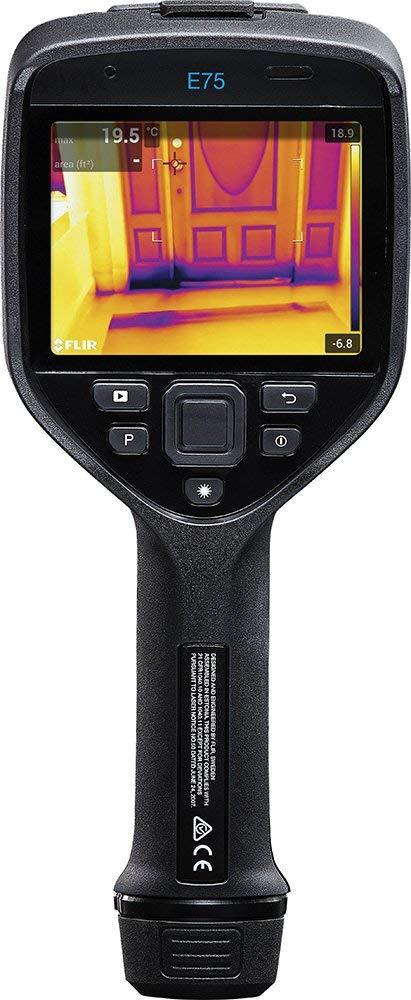

78501-0101-KIT E75 Advanced Thermal Camera Kit with MSX 320 × 240 Resolution/30Hz with 14° Lens with FLIR Thermal Studio Pro - 12 Month Subscription by FLIR
The FLIR E75 has the sensitivity and resolution needed to diagnose problems and find hidden deficiencies, even from a distance. The 320 × 240 true native resolution offers more than 76,000 points of temperature measurement and produces crisp, vibrant imagery, while interchangeable lenses offer complete coverage of near and distant targets.
LASER DISTANCE MEASUREMENT
- The laser distance meter aids in quick, precise autofocusing, so you can ensure accurate temperature measurements, every time.
STREAMLINED REPORTING
- Customizable work folders, a built-in mic for voice annotation, and report generation features all help the E75 streamline your workday.
SLEEK BUT RUGGED
- With features such as scratch-resistant glass and a drop-tested chassis, the E75's design is about more than good looks.
| Features by Camera | E53 | E75 | E85 | E95 |
| IR Resolution | 240 × 180 (43,200 pixels) | 320 × 240 (76,800 pixels) | 384 × 288 (110,592 pixels) | 464 × 348 (161,472 pixels) |
| UltraMax® | - | 307,200 pixels | 442,368 pixels | 645,888 pixels |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) Optional 300°C to 1000°C (572°F to 1830°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) 300°C to 1200°C (572°F to 2192°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) 300°C to 1500°C (572°F to 2732°F) |
| Focus | Manual | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual 10 sec to 24 hours |
| Time-lapse (Infrared) | - | - | - | 10 sec to 24 hours |
| Laser Area Measurement | - | - | Yes | Yes |
| Laser Distance Measurement | - | Yes, on-screen | Yes, on-screen | Yes, on-screen |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, 3 spots, hot spot-spot | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Spotmeter | 3 in live mode | 1 in live mode | 3 in live mode | 3 in live mode |
| Area | 1 in live mode | 1 in live mode | 3 in live mode | 3 in live mode |
| Picture-in-Picture | Centered infrared area on the visual image | Resizable and movable | Resizable and movable | Resizable and movable |
| Common Features | ||||
| Detector Type and Pitch | Uncooled microbolometer, 17 μm | |||
| Thermal Sensitivity/NETD | <0.03°C @ 30°C (86°F), 42° lens | |||
| Spectral Range | 7.5 - 14.0 μm | |||
| Image Frequency | 30 Hz | |||
| Field of View (FOV) | 42° × 32° (10 mm lens), 24° × 18° (18 mm lens), 14° × 10° (29 mm lens) | |||
| F-Number | f/1.3 | |||
| Lens Identification | Automatic | |||
| Digital Zoom | 1-4x continuous | |||
| Image Presentation and Modes | ||||
| Display | 4", 640 × 480 pixel touch screen LCD with auto-rotation | |||
| Digital Camera | 5 MP, 53° × 41° FOV | |||
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC | |||
| Image Modes | Infrared, visual, MSX®, Picture-in-Picture | |||
| MSX® | Embosses visual details on full resolution thermal image | |||
| Measurement and Analysis | ||||
| Accuracy | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) | |||
| Alarms | Moisture alarm, insulation alarm, measurement alarms | |||
| Color Alarm (Isotherm) | Above/below/interval/condensation/insulation | |||
| Compass, GPS | Yes; automatic GPS image tagging | |||
| METERLiNK® | Yes; several readings | |||
| Laser Pointer | Yes; dedicated button | |||
| Image Storage | ||||
| Image Storage | Removable SD card (8 GB) | |||
| Image File Format | Standard JPEG with measurement data included | |||
| Video Recording and Streaming | ||||
| Radiometric IR Video Recording | Real-time radiometric recording (.csq) | |||
| Non-Radiometric IR or Visual Video | H.264 to memory card | |||
| Radiometric IR Video Streaming | Yes, over UVC or Wi-Fi | |||
| Non-Radiometric IR Video Streaming | H.264 or MPEG-4 over Wi-Fi; MJPEG over UVC or Wi-Fi | |||
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi, DisplayPort | |||
| Video Out | DisplayPort over USB Type-C | |||
| Additional Data | ||||
| Battery Type | Li-ion battery, charged in camera or on separate charger | |||
| Battery Operating Time | Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use | |||
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) | |||
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) | |||
| Shock/Vibration/Encapsulation; Safety | 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1 | |||
| Weight/Dimensions | 1 kg (2.2 lbs), 27.8 × 11.6 × 11.3 cm (11.0 × 4.6 × 4.4 in) | |||
| Box Contents | ||||
| Infrared camera with lens, battery (2 ea), battery charger, front protection, straps (hand, wrist), hard transport case, lanyards, lens caps, lens cleaning cloth, power supplies, 8 GB SD card, Torx wrench, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C, USB Type-C to HDMI) | ||||
