FLIR TG167 Spot Thermal Camera 80 x 60 Resolution / 9Hz - 74701-0104

Item #:

FL-74701-0104

Brand:

FLIR

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

74701-0104 TG167 Spot Thermal Camera 80 x 60 Resolution/9Hz by FLIR

The FLIR TG167 Spot Thermal Camera bridges the gap between single spot infrared thermometers and FLIR's legendary thermal cameras. Equipped with FLIR's exclusive Lepton® micro thermal sensor, the TG167 lets you see the heat so you know where to reliably measure it. Designed for indoor electrical inspection, the TG167 will help you easily find unseen hot and cold spots in electrical cabinets or switch boxes, giving you quality image detail on even small connectors and wires. Then you can store images and download data to show customers and include in reports.

See the Heat™ - Speed Electrical Troubleshooting

Instantly shows what's hot and where to aim
Eliminates blind guesswork
24:1 spot size ratio for safer distance measuring

Grab and Go Simplicity

Intuitive to operate with no special training required
Easily save images and data for documentation
Download images fast over USB or from removable micro SD

Rugged and Reliable

Built to withstand a 2 meter drop
Covered by FLIR's exclusive 2-10 warranty
Compact and durable to easily stow in a crowded tool bag

Specifications

Imaging and optical data
Field of view (FOV)	25° x 19.6°
IR resolution	80 x 60 pixels
Thermal sensitivity/NETD	< 150 mK
Minimum focus distance)	0.1 m (4 in.)
Image frequency	9Hz
Focus	Focus free
Detector data
Detector type	Focal plane array (FPA), uncooled microbolometer
Spectral range	8-14 µm
Image presentation
Display	2.0 in. TFT LCD
Measurement
Object temperature range	-25 to +380°C (-13 to +716°F)
Accuracy	±1.5% or 1.5°C (2.7°F)
Distance to spot ratio	24:1
Minimum measurement distance	26 cm (10 in.)
Center spot	Yes
Color palettes	Hot Iron, Rainbow, Grayscale
Image Storage
Memory type	Micro SD card
Image storage capacity	75 000 pictures with included 8 GB Micro SD card
Memory expansion	32 GB SD card maximum
Saved image format	Bitmap (BMP) image with temperature and emissivity
Laser pointers
Laser	Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
Power system
Battery type	Rechargeable Li ion battery
Battery voltage	3.7 V
Battery operating time	>5 hours of continuous scanning with lasers
Battery charge life	30 days minimum
Charging system	Battery is charged inside the camera
Charging time	4 hours to 90%, 6 hours to 100%
Power management	Adjustable; OFF, 1 min., 2 min., 5 min., 10 min.
Environmental data
Operating temperature range	-10 to +45°C (+14 to 113°F)
Storage temperature range	-30 to +55°C (-22 to 131°F)
Humidity (operating and storage)	0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Physical data
Camera weight, incl. battery	0.312 kg (11 oz.)
Camera size (LxWxH)	186 mm x 55 mm x 94 mm (7.3 in. x 2.2 in. x 3.7 in.)
Tripod mounting	1/4 in.-20 on handle bottom

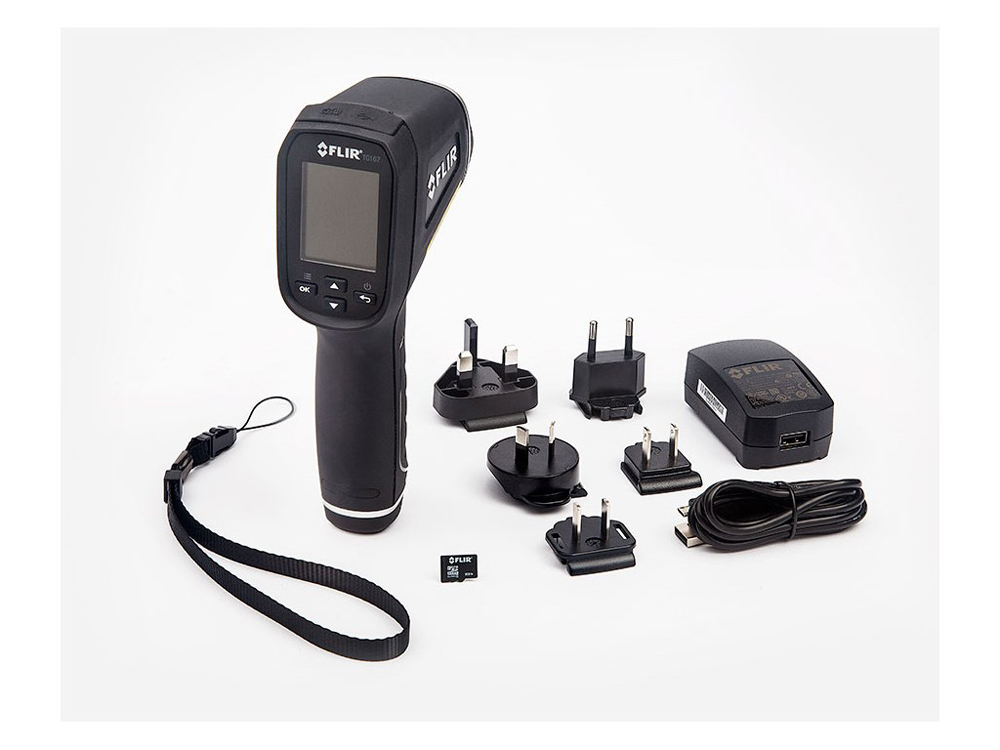

Includes	Wrist strap lanyard, 8 GB Micro SD card, power supply with separate USB cable, printed documentation

Datasheets & User Manuals

$399.99
