Extech VIR50 Dual Laser IR Video Thermometer

Extech VIR50 Dual Laser IR Video Thermometer

$559.90

Discontinued

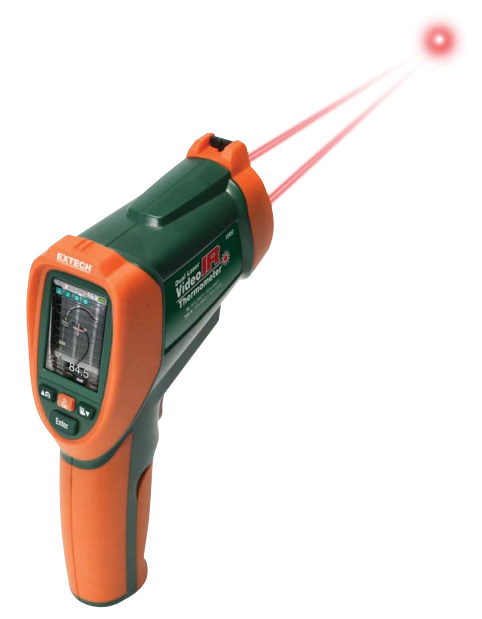

VIR50 Dual Laser IR Video Thermometer by Extech

Features

  • Dual laser indicates ideal measuring distance where the two laser points converge to a 1" target spot
  • Fast 150 millisecond response time
  • Color LED bargraph for viewing trends
  • Type K Thermocouple input
  • Air Temperature and Relative Humidity measurement
  • Adjustable emissivity increases measurement accuracy for different surfaces
  • Adjustable High/Low set points with audible alarm alerts user when temperature exceeds the programmed set points
  • MAX/MIN/AVG/DIF functions
  • Trigger lock function for continuous readings
  • USB interface
  • Auto power off
  • Double molded housing
  • Complete with microSD card, general purpose Type K bead wire probe, USB cable, rechargeable 3.7V battery, and carrying case
General Specifications
Display 2.2" Color TFT LCD (320 x 240 pixels)
Digital Camera 640 x 480 pixels
Operating Temperature 32°F to 122°F (0°C to 50°C)
Memory Internal flash: 49Mbyte, Micro SD card: Max 8Gbytes
Operating Humidity Max. 90% RH (non-condensing)
Power Supply 3.7V Lithium ion rechargeable battery
Battery life 4 hours (continuous) approx.
Battery charge time 2 hours with AC adaptor or USB connection
Automatic Power Off Programmable: OFF, 3, 15, and 60 minutes
Weight 0.9 lbs. / 410g
Dimensions 8.1 x 2.4 x 6.1" (205 x 62 x 155mm)

Range Specifications
Infrared Thermometer Specifications
Range -58 to 3992°F (-50 to 2200°C)
Resolution 0.1°C/F < 1000; 1°C/F > 1000
Accuracy -50°C to -20°C (-58°F to -4°F) Not specified
-19.9°C to -1°C (-3.9°F to 30°F) ± (2% rdg + 6°F/3.3°C)
-0.9°C to 100°C (30.1°F to 212°F) ± (1.0% rdg + 4°F/2.2°C)
100.1°C to 454°C (212.1°F to 850°F) ± (2.5% rdg + 4°F/2.2°C)
454.1°C to 1000°C (850.1°F to 1832°F) ± (2.5% rdg + 6°F/3.3°C)
1001°C to 2200°C (1833°F to 3992°F) ± (3% rdg + 9°F/5°C)
Note: Accuracy is specified for the following ambient temperature range: 64 to 82°F (18 to 28°C) and at 127cm (50")
Repeatability -58°F to 68°F (-50°C to 20°C) ± 2.7°F (1.5°C)
68°F to 1832°F (20°C to 1000°C) ± 0.5% or ±0.9°F (0.5°C)
1832°F to 3992°F (1000°C to 2200°C) ± 1.0%
Emissivity Adjustable from 0.1 to 1.00
Field of View D/S = Approx. 50:1 ratio (D = distance, S = spot)
Laser power Less than 1mW (Class II)
Spectral response 8 to 14 μm (wavelength)
Response time 150ms
Type K Thermometer Specifications
Range / Resolution -58 to 2498°F (-50 to 1370°C) 0.1°C/F < 1000; 1°C/F > 1000
Accuracy 32°F to 2498°F (0°C to 1370°C) ± (0.5% + 2.7°F/1.5°C)
-58°F to 32°F (-50°C to 0°C) ± 4.5F (2.5C)
Note: Accuracy is specified for the following ambient temperature range: 64 to 82°F (18 to 28°C)
Air Temperature and Relative Humidity Specifications
Air Temperature Range / Resolution 32 to 122°F (0 to 50°C) 0.1°C/F
Dew Point Range / Resolution 32 to 122°F (0 to 50°C) 0.1°C/F
Relative Humidity Range / Resolution 0 to 100% 1%
Air Temperature Accuracy 50°F to 104°F (10°C to 40°C) ± 1.8°F (1°C)
All other ranges ± 3.6°F (2°C)
Dew Point Temperature Accuracy Based on temperature and RH specifications
Relative Humidity Accuracy 40 to 60% ± 5.0%RH
20% to 40% and 60% to 80% ± 5.0%RH
0% to 20% and 80% to 100% ± 6.0%RH
