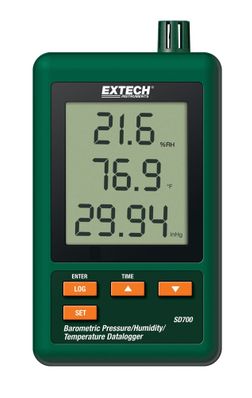

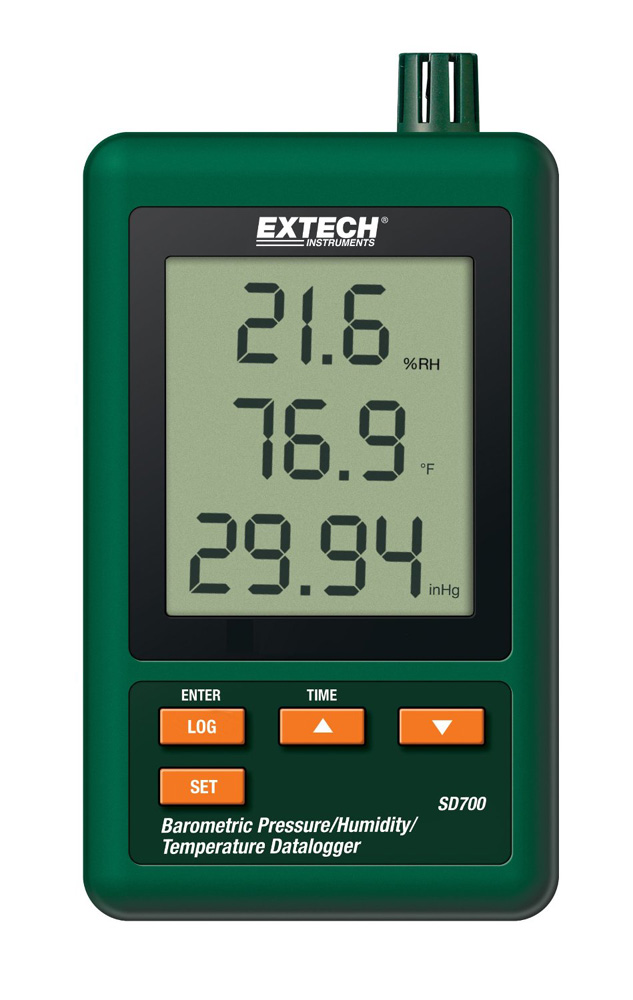

Extech SD700 Barometric Pressure/Humidity/Temperature Datalogger
Item #:
EXT-SD700
Brand:
Extech
Share this product:
SD700 Barometric Pressure/Humidity/Temperature Datalogger by Extech
Features
- Displays Barometric Pressure in 3 units of measure: hPa, mmHg, and inHg
- Triple LCD simultaneously displays Barometric Pressure, Temperature, and Relative Humidity
- Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
- Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds
- Complete with (6) AAA batteries, 2G SD card, Universal AC adaptor, and mounting bracket
Applications
- Monitors Barometric Pressure, Humidity, and Temperature levels in clean rooms, warehouses, storage rooms, and water damage restoration projects
Display | 60 x 50 mm (2.4 x 2.0") LCD |
Measurements | Temperature, Relative Humidity, and Barometric Pressure |
Memory Card | SD memory card, 1 GB to 16 GB |
Datalogger Sampling Time | 5/10/30/60/120/300/600 seconds or Automatic |
Temperature Compensation | Automatic |
Display update rate | Approx. 1 second |
Data Output | RS 232 Serial Interface |
Operating Temperature | 0 to 50°C (32 to 122°F) |
Operating Humidity | Less than 90% RH |
Power Supply | Six (6) AAA (UM4) Alkaline or heavy duty 1.5 V batteries or 9V AC adaptor. |
Battery life | Dependent on sample rate, for new alkaline batteries and 60 second sampling time, > one month is typical (fast sample rates will significantly reduce battery life) |
Weight | 282 g (0.62 lbs.) |
Dimensions | 132 x 80 x 32mm (5.2 x 3.1 x 1.3") |
Range |
Resolution |
Accuracy (of reading) |
|
Temperature |
0.0 to 50.0 °C |
0.1°C |
± 0.8°C |
32.0 to 122.0°F |
0.1°F |
± 1.5°F |
|
Relative Humidity |
70 to 90% |
0.1% |
± (4% of reading + 1% RH) |
10 to 70% |
0.1% |
± 4% RH |
|
Barometric Pressure |
10.0 to 1000.0 hPa |
0.1 |
± 2 hPa |
1000.1 to 1100.0 hPa |
0.1 |
± 3 hPa |
|
7.5 to 825.0 mmHg |
0.1 |
± 1.5 mmHg |
|
0.29 to 32.48 inHg |
0.01 |
± 0.1 inHg |
