Extech 600A AC Clamp Meter - MA610
Item #:
EXT-MA610
Brand:
Extech
Share this product:

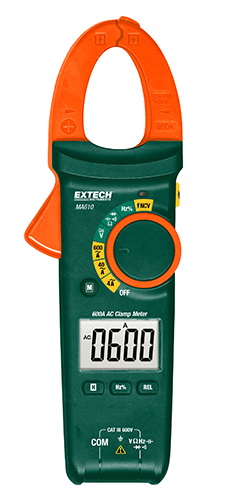

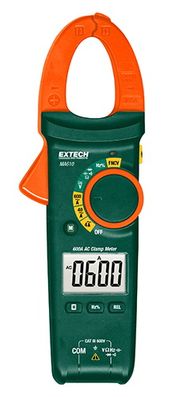

MA610 600A AC Clamp Meter by Extech
The MA610 is a fully loaded clamp meter with multimeter functions including AC Current, AC/DC Voltage, Resistance, Frequency, and Capacitance. It also has a built-in non-contact voltage (NCV)detector to quickly check circuits and wires for live voltages.
Features
- 1.2" (30mm) jaw size fits conductors up to 500MCM
- Built-in Non-Contact Voltage (NCV) detector
- MultiMeter functions include Resistance, Capacitance and Frequency
- Relative Mode for Capacitance
- Data Hold freezes reading on display
- Auto Power Off with disable and Low Battery indication
- Large backlit LCD display
- Complete with test leads, three AAA batteries, and pouch
Specifications | Range | Max Resolution | Basic Accuracy |
AC Current | 600.0A | 1mA | ±2.0% |
DC Voltage | 600V | 0.1mV | ±0.8% |
AC Voltage | 600V | 1mV | ±1.2% |
Non-Contact Voltage (NCV) | 100 to 600V | ||
Resistance | 40MΩ | 0.1Ω | ±1.0% |
Capacitance | 100μF | 0.01nF | ±4% |
Frequency | 1MHz | 0.01Hz | ±0.1% |
Diode/Continuity | Yes | ||
Dimensions/Weight | 9x3x1.6" (228x77x41mm)/ 9.3oz (265g) |
