Extech 60A True RMS AC Clamp Meter with NCV - MA61
Item #:
EXT-MA61
Brand:
Extech
Share this product:

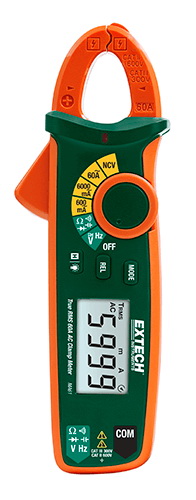

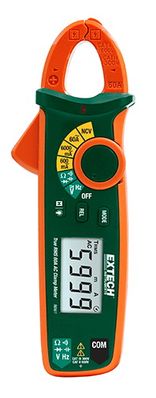

MA61 60A True RMS AC Clamp Meter with NCV by Extech
Choice of AC Current or AC/DC Current model, both with high ±2% accuracy. Manual ranging clamp meters with three Current ranges. The 6000mA range allows for low current measurements that may be used in the automotive industry. Unique VFC (variable frequency control) mode helps troubleshoot and diagnose HVAC applications that are variable frequency driven.
Features
- True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
- AC Current and Relative function
- Compact 0.7" (17mm) jaw size allows measurements in tight locations
- Variable Frequency Control (VFC): Low pass filter for accurate measurement of variable frequency drive signals
- Built-in Non-Contact Voltage (NCV) detector
- Full range overload protection
- 6000 count backlit LCD display
- Data Hold freezes reading on display
- Low battery indicator and Auto Power Off feature
- CAT II-600V and CAT III-300V safety rating
- Complete with test leads, carrying case, and two AAA batteries
| Specifications | MA61 | MA63 |
| AC Current (max resolution) | 600mA, 6000mA, 60A (0.1mA) | 600mA, 6000mA, 60A (0.1mA) |
| DC Current (max resolution) | - | 6000mA, 60A (1mA) |
| Basic accuracy | ±2.0% | AC: ±2.0%, DC: ±2.0% |
| Non-Contact Voltage (NCV) | 100 to 600V AC | 100 to 600V AC |
| AC/DC Voltage | AC: 6V, 60V, 600V (1mV) / DC: 600mV, 6V, 60V, 600V (0.1mV) | AC: 6V, 60V, 600V (1mV) / DC: 600mV, 6V, 60V, 600V (0.1mV) |
| Basic accuracy | AC: ±0.8% DC: ±0.7% | AC: ±0.8% DC: ±0.7% |
| Resistance (Ω) | 600, 6k, 60k, 600k, 6M, 60M (0.1Ω) | 600, 6k, 60k, 600k, 6M, 60M (0.1Ω) |
| Capacitance | 6.2nF, 620μF, 62mF (1pF) | 6.2nF, 620μF, 62mF (1pF) |
| Frequency | 10Hz to 60kHz (0.001Hz) | 10Hz to 60kHz (0.001Hz) |
| Diode/Continuity | Yes | Yes |
| Dimensions/ Weight | 6.9x2.4x1.3" (175x60x33.5mm) / 6oz (170g) | 6.9x2.4x1.3" (175x60x33.5mm) / 6oz (170g) |
