Extech 3000A True RMS AC Flex Clamp Meter CAT IV - MA3110
Item #:
EXT-MA3110
Brand:
Extech
Share this product:

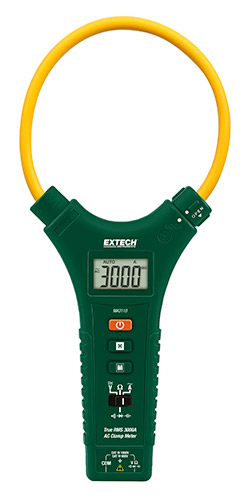

MA3110 3000A True RMS AC Flex Clamp Meter CAT IV by Extech
Flexible 11" (28cm) clamp jaw easily wraps around bus bars and cable bundles that may be difficult to access with regular clamp meters. The thin 8mm cable diameter easily fits into tight spaces. Includes test leads for multimeter functions measuring Voltage, Resistance, and Capacitance. True RMS and CAT IV rated allows for maximum accuracy and safety for your measurements.
Features
- True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
- Autoranging AC Current
- 8mm cable diameter fits into tight spaces and around large conductors
- 6000 count LCD display
- Data Hold freezes reading on display
- Over range and Low battery indicator
- Auto power off with disable
- CAT III-1000V, CAT IV-600V category safety rating
- Complete with test leads and two AAA batteries
Specifications | Ranges | Max Resolution | Basic Accuracy |
AC Current | 600A, 3000A | 0.1A, 1A | ±1% |
AC Voltage | 6, 60, 600, 1000V | 0.001V | ±1% |
DC Voltage | 6, 60, 600, 1000V | 0.001V | ±0.8% |
Resistance | 600, 6k, 60k, 600k, 6M, 60MΩ | 0.1Ω | ±1.5% |
Capacitance | 6nF, 60nF, 600nF, 6μF, 60μF, 600μF | 0.001nF | ±3% |
Diode/Continuity | Yes | ||
Dimensions | 11.4 x 5.3 x 1.1" (290 x 135 x 27.8mm) | ||
Weight | 7.3oz (208g) w/o batteries |
