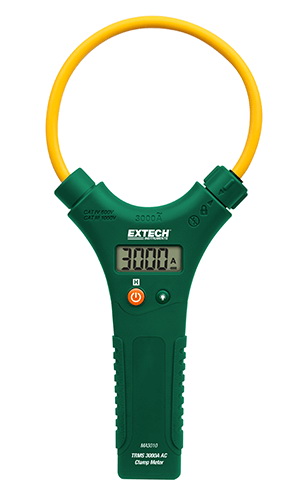

Extech 10 In 3000A True RMS AC Flex Clamp Meter CAT IV - MA3010

Item #:
EXT-MA3010
Brand:
Extech
Extech 10 In 3000A True RMS AC Flex Clamp Meter CAT IV - MA3010
$183.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Extech 10 In 3000A True RMS AC Flex Clamp Meter CAT IV - MA3010

Extech 10 In 3000A True RMS AC Flex Clamp Meter CAT IV - MA3010

$183.99

Discontinued


MA3010 10 In 3000A True RMS AC Flex Clamp Meter CAT IV by Extech

Flexible clamp jaw easily wraps around bus bars and cable bundles that may be difficult to access with regular clamp meters. The thin 7.5mm cable diameter easily fits into tight spaces. Choose between a 10" (25.4cm) or 18" (45.7cm) cable clamp length to accommodate your application needs.

Features

  • True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
  • Model MA3010 - 10" (25.4cm) flexible clamp cable Model MA3018 - 18" (45.7cm) flexible clamp cable
  • 7.5mm cable diameter fits into tight spaces and around large conductors
  • Measures True RMS AC Current in three ranges
  • 3000 count backlit LCD display
  • Over range and Low battery indicator
  • Auto power off with disable
  • CAT III-1000V, CAT IV-600V category safety rating
  • Complete with two AAA batteries
AC Current Ranges 0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A (autoranging)
Max Resolution 0.01A
Basic Accuracy ±(3%+5 digits)
Flex Cable Diameter 0.3" (7.5mm)
Flex Cable Tip Diameter 0.51"(13mm)
Dimensions Model MA3010: 11 x 4.7 x 1" (280 x 120 x 25mm);
Model MA3018: 13.8 x 5.1 x 1"(350 x 130 x 25mm)
Weight Model MA3010: 6oz (170g);
Model MA3018: 7.1oz (200g)
