Extech True RMS 200A AC Open Jaw Clamp Meter with NCV - MA260
Item #:
EXT-MA260
Brand:
Extech
Share this product:

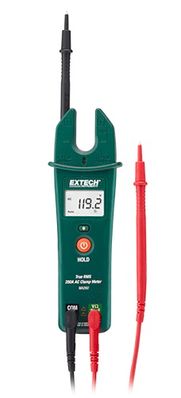

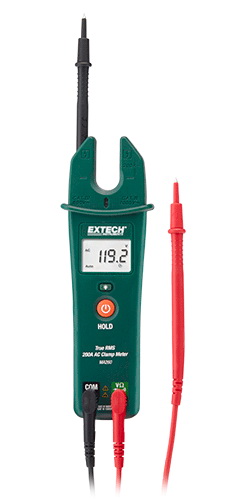

MA260 True RMS 200A AC Open Jaw Clamp Meter with NCV by Extech
Easy-to-use, one button, Auto Sense technology allows meter to recognize the input being measured and will automatically switch to the correct mode of operation. Its convenient Open Jaw design provides quick measurements in tight locations. True RMS provides accurate readings.
Features
- Smart Auto Sensing technology enables the meter to recognize the input and automatically switch to the correct mode of operation
- For AC Voltage, Auto Sense feature evaluates input signal and adjusts Input Impedance to eliminate effects of ghost voltages
- 0.6" (16mm) open jaw size
- True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
- Built-in non-contact voltage detector with LED indicator
- 10,000 count backlit LCD display
- Smart Data Hold freezes the reading on the display and automatically changes if a new reading is larger than 50 counts
- Auto Power Off with disable
- Battery capacity (%) displayed on power-up
- Slim housing construction with built-in test lead holders
- Complete with test leads and two AAA batteries
Specifications | Range | Max Resolution | Basic Accuracy |
AC Current | 200A | 0.1A | ±3.0% |
AC Voltage | 1.3V to 1000V | 0.1V | ±0.9% |
DC Voltage | 2.1V to 1000V | 0.1V | ±0.3% |
Non-contact Voltage (NCV) | 80 to 1000V AC (50 to 60Hz) | ||
Resistance (Ω) | 0 to 10kΩ | 1Ω | ±0.9% |
Input Impedance | 6kΩ up to 30V; Increases to 420kΩ at 1000V | ||
Diode | 0.4 to 0.8V | 0.1V | ±1.0% |
Continuity | Beeper (25Ω threshold) | ||
Dimensions | 7.6 x 2.1 x 1.2" (193 x 54 x 31mm) | ||
Weight | 9.9oz (280g) |
