Extech MA200 400A AC Clamp Meter
Item #:
EXT-MA200
Brand:
Extech
Share this product:

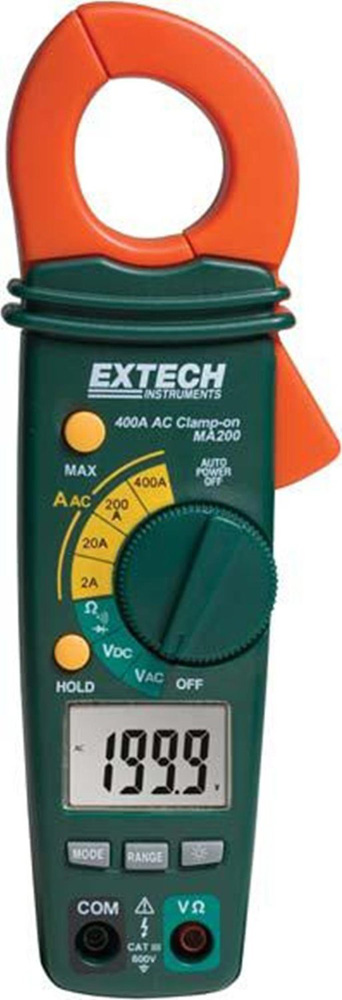

MA200 400A AC Clamp Meter by Extech
Features
- Compact size allows measurements in tight locations
- High accuracy for Current measurements
- Autoranging with Auto Power Off
- 0.9" (23mm) jaw size accommodates conductors up to 300MCM
- Continuity beeper and Diode test
- Data Hold freezes current reading on display
- Overload protection for all ranges
- Overrange and low battery indicators
- Complete with test leads, case, and two AAA batteries
- 400A AC Current
- 2000 count LCD display
- Max Hold
Jaw size | 23mm (0.9") approx. |
Display | 3-1/2 digits (2000 counts) LCD |
Continuity | Audible tone < 120Ω approx. |
Diode test | Open circuit voltage < 1.5VDC; Test current 0.3mA (typical) |
AC V bandwidth | 50Hz to 400Hz |
AC A bandwidth | 50/60Hz |
Low battery indication | Battery symbols is displayed |
Overrange indication | "OL" is displayed |
Auto Power OFF | After 15 minutes |
Measurement rate | 2 per second, nominal |
Input Impedance | 7.8MΩ (V DC and V AC) |
Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF) |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Operating Humidity | Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at 40ºC (104ºF) |
Storage Humidity | <80% |
Operating Altitude | 3000m (9800ft) |
Batteries | (2) 1.5V AAA batteries |
Weight | 200g (0.44lb) |
Size | 200x50x35mm (7.87" x 1.97" x 1.38") |
Safety information | For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (1995): EN61010-1 (1995) Overvoltage Category III 600V, Pollution Degree 2. |
Safety Approval | CE |
Function |
Range |
Accuracy (of reading) |
AC Current |
2.000 ACA |
± (2.5% + 10 digits) |
20.00 ACA |
± (2.5% + 4 digits) |
|
200.0 ACA |
± (2.5% + 4 digits) |
|
400 ACA |
± (3.0% + 5 digits) |
|
AC Voltage |
200.0mV |
± (1.5% + 30 digits) |
2.000V |
± (1.5% + 3 digits) |
|
20.00V |
||
200.0V |
||
600V |
± (2.0% + 4 digits) |
|
DC Voltage |
200.0mV |
± (0.5% + 5 digits) |
2.000V |
± (1.2% + 3 digits) |
|
20.00V |
||
200.0V |
||
600V |
± (1.5% + 3 digits) |
|
Resistance Ω |
200.0 |
± (1.0% + 4 digits) |
2.000k |
± (1.5% + 2 digits) |
|
20.00k |
||
200.0k |
||
2.000M |
± (2.0% + 3 digits) |
|
20.00M |
± (3.0% + 5 digits) |
