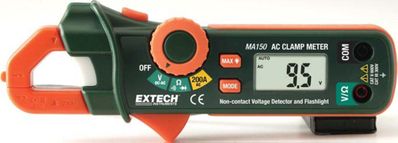

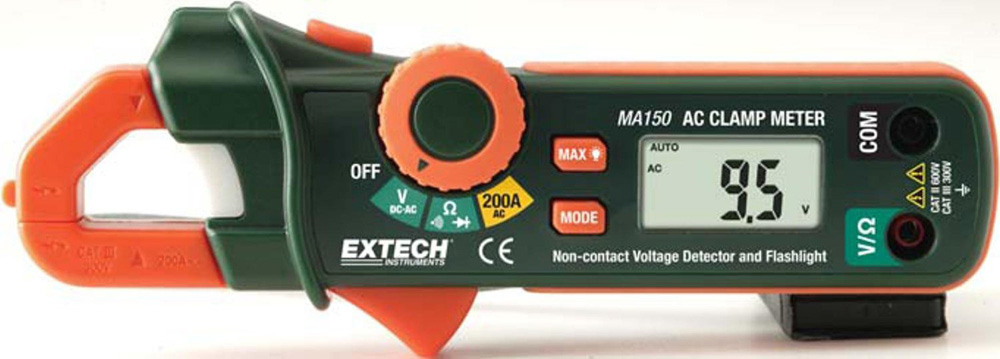

Extech MA150 200A Mini AC Clamp Meter + NCV Detector

Item #:

EXT-MA150

Brand:

Extech

Our tech experts are ready to help!

Share this product:

MA150 200A Mini AC Clamp Meter + NCV Detector by Extech

General Specifications

Display	2000 count Digit LCD with white LED backlight
Polarity	Minus sign ( - ) indicates negative polarity
Jaw opening	0.7" (18mm)
Current sensor	Hall effect sensor type
AC Current Bandwidth	50/60Hz
AC Voltage Bandwidth	50/400Hz
Overload indication	"OL" displayed on the LCD
Display rate	2 readings/second, nominal
Battery	Two 1.5V AAA batteries
Low Battery indication	"BATT" displayed on the LCD
Auto Power off	approx. 15 minutes
Operating conditions	32 to 86ºF (0 to 30ºC) 90%RH; 86 to 104ºF (30 to 40ºC) 75%RH; 104 to 122ºF (40 to 50ºC) 45%RH
Storage conditions	- 14 to 140ºF (-30 to 60ºC); < 90% Relative Humidity
Altitude	Operate at less than 3000 meters
Weight	6.2 oz. (176g) including battery
Dimensions	6.5 x 2.6 x 1.3” (164 x 65 x 32mm) (HWD)
Standards	For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (1995): EN61010-1 (1995) Overvoltage Category III 300V and Category II 600V, Pollution Degree 2.

Range Specifications

Function	Range	Resolution	Accuracy (of reading)
AC Current	200.0A	0.1A	± (2.5% rdg + 10 digits)
DC Voltage	200.0mV	0.1mV	±(0.5% rdg + 5 digits)
	2.000V	1mV	±(1.2% rdg + 3 digits)
	20.00V	10mV
	200.0V	0.1V
	600V	1V	±(1.5% rdg + 3 digits)
AC Voltage	2.000V	1mV	±(1.5% rdg + 3 digits)
	20.00V	10mV
	200.0V	0.1V
	600V	1V	±(2.0% rdg + 4 digits)
Resistance	200.0Ω	0.1Ω	±(1.0% rdg + 4 digits)
	2.000kΩ	1Ω	±(1.5% rdg + 2 digits)
	20.00kΩ	10Ω
	200.0kΩ	100Ω
	2.000MΩ	1kΩ	±(2.0% rdg + 3 digits)
	20.00MΩ	10kΩ	±(3.0% rdg + 5 digits)
Non-Contact AC Voltage	100VAC to 600VAC 50/60Hz
Diode Test	Test current: 0.3mA typical; Open circuit voltage: 1.5VDC typical
Continuity	Threshold <120Ω; Test current <1m

$54.99
