Extech IR400 Mini IR Thermometer
Item #:
EXT-IR400
Brand:
Extech
Share this product:

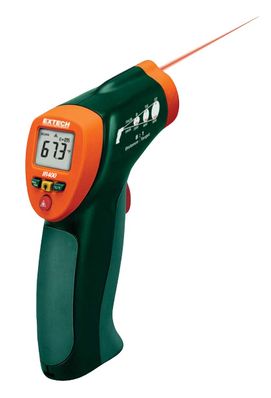

IR400 Mini IR Thermometer by Extech
Features
- Backlighting illuminates display for taking measurements at night or in areas with low background light levels
- Automatic Data Hold when trigger released
- Min/Max Hold
- Fixed 0.95 emissivity covers 90% of surface applications
- Auto power off
- Complete with 9V battery and case
| Display | 3-1/2 digit (1999count) LCD with backlighting |
| Response time | Less than 1 second |
| Over range indication | LCD will show "HI"/"LO" |
| Polarity | Automatic (no indication for positive polarity); Minus (-) sign for negative polarity. |
| Emissivity | 0.95 fixed value |
| Field of view | D/S = Approx. 8:1 ratio (D = distance, S = spot) (Has 90% encircled energy at the focal point) |
| Diode Laser | Output <1mW, Wavelength 630~670nm, Class 2 (II) Laser product |
| Spectral response | 6~14um |
| Auto power off | Automatic shut off after 10 seconds, approx. |
| Operating temperature | 0ºC to 50ºC (32ºF to 122º F) |
| Storage temperature | -20ºC to 60ºC (-4ºF to 140ºF) |
| Relative humidity | 10%~90%RH operating, <80%RH storage |
| Power supply | 9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
| Weight | 180g (6.3oz) |
| Dimensions | 82 x 41.5 x 160mm (3.2 x 1.6 x 6.3") |
Range |
Resolution |
Accuracy |
-20C to -7°C -4F to 20°F |
0.1°F/°C |
±4°C (7.5°F) |
-7C to 343°C 20 to 630°F |
0.1°F/°C |
±2% of reading + 2°C/4°F |
Note: Accuracy is given at 18 °C to 28 °C (64 °F to 82 °F), less than 80%RH |
||
