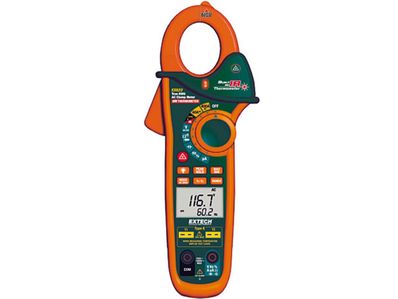

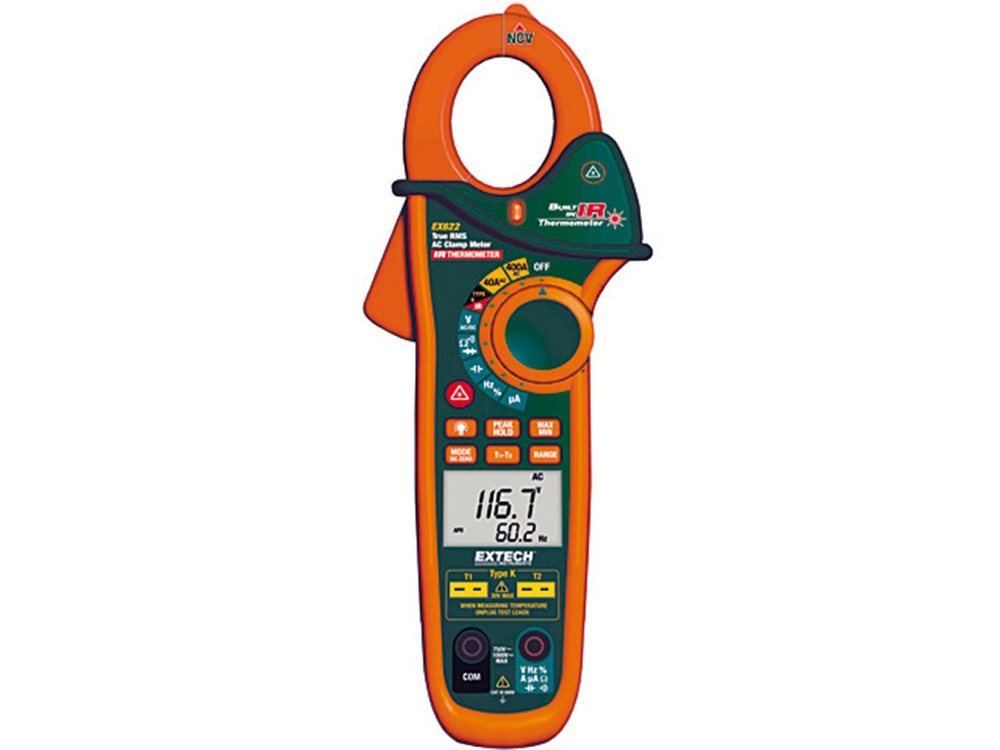

Extech EX622 400A Dual Input AC Clamp Meter + NCV + IR Thermometer
Item #:
EXT-EX622
Brand:
Extech
Share this product:
EX622 400A Dual Input AC Clamp Meter + NCV + IR Thermometer by Extech
Features
- True RMS measurements for accurate AC Voltage and Current measurements
- Dual type K thermocouple input with Differential Temperature function (T1, T2, T1-T2)
- Built-in non-contact Voltage detector with LED alert
- DC µA multimeter function for HVAC flame rod Current measurements
- Data Hold plus fast Peak Hold of current surges during motor startup
- 40,000 count multimeter functions for DC Voltage, Resistance, Capacitance, and Frequency for high resolution over wider ranges
- Measures motor capacitors to 40,000µF
- 1.25" (32mm) jaw opening for conductors up to 500MCM
- Rugged double molded housing
- Auto power off with audible alert and disable function
- Autoranging with manual override
- Complete with CAT III-600V, double molded test leads, 9V battery, two general purpose Type K bead wire probes and case
- Built-in non-contact IR Thermometer with laser pointer for locating hot spots
- 8 to 1 distance to target ratio
| Clamp jaw opening | 32mm (1.25") approx. |
| Display | Dual 40,000/4,000 count backlit LCD |
| Non-Contact Voltage | 100 to 600VAC |
| Continuity check | Threshold 50Ω; Test current < 0.5mA |
| Diode test | Test current of 0.3mA typical; Open circuit voltage [ 2.8VDC typical |
| Low Battery indication | Battery symbol is displayed |
| Over-range indication | 'OL' display |
| Measurement rate | 2 readings per second, nominal |
| Peak detector | >1ms |
| Thermocouple sensor | Type K thermocouple required |
| Fuse | 500mA, ceramic fast blow |
| IR Spectral response | 6 to 16µm |
| IR Emissivity | 0.95 fixed |
| IR distance ratio | 8:1 |
| Laser pointer | Class 2 laser < 1mW power; Wavelength is 630 to 670nm |
| Input Impedance | 10MΩ (VDC and VAC) |
| AC bandwidth | 50 to 400Hz (AAC and VAC) |
| AC response | True rms (AAC and VAC) |
| Crest Factor | 3.0 in 40A and 400A ranges, 1.4 in 1000A range (50/60Hz and 5% to 100% of range) |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F) |
| Storage Humidity | <80% |
| Operating Altitude | 2000meters (7000ft) maximum. |
| Battery | One (1) 9V Battery (NEDA 1604) |
| Auto power OFF | After approx. 30 minutes, with disable |
| Dimensions & Weight | 241x96x44.5mm (9.5x3.8x1.75"); 386g (13.6 oz) |
| Safety | For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V and Category II 1000V, Pollution Degree 2. |
| Approvals | CE |
| Patent notice | U.S. Patent 7163336 |
| Function | Range | Resolution | Accuracy (% of reading + digits) |
| AC Current 50/60 Hz True RMS |
400.0 AAC | 0.1A | ±(1.5% + 5 digits) |
| 40.00 AAC | 0.01A | ||
| AC/DC μA Current | 400.00μA | 0.01μA | DC: ±(1.0% + 2 digits) AC: ±(1.5% + 2 digits) |
| 4000.0μA | 0.1μA | ||
| AC Voltage 50/60 Hz True RMS |
400.0 mVAC | 0.1mV | ±(1.0% + 20 digits) |
| 4.000 VAC | 0.001V | ±(2.0% + 5 digits) | |
| 40.00 VAC | 0.01V | ||
| 400.0 VAC | 0.1V | ||
| 600 VAC | 1V | ||
| DC Voltage | 400.00 mVDC | 0.01mV | ±(0.1% + 6 digits) |
| 4.0000 VDC | 0.0001V | ||
| 40.000 VDC | 0.001V | ||
| 400.00 VDC | 0.01V | ||
| 600.0 VDC | 0.1V | ±(1.0% + 2 digits) | |
| Resistance | 400.00Ω | 0.01Ω | ±(0.8% + 20 digits) |
| 4.0000kΩ | 0.0001kΩ | ±(0.8% + 4 digits) | |
| 40.000kΩ | 0.001kΩ | ||
| 400.00kΩ | 0.01kΩ | ||
| 4.0000MΩ | 0.0001MΩ | ||
| 40.000MΩ | 0.001MΩ | ±(2.5% + 10 digits) | |
| Capacitance | 400.00nF | 0.01nF | ±(5.0% + 40 digits) |
| 4000.0nF | 0.1nF | ±(3.0% + 10 digits) | |
| 400.00µF | 0.01µF | ±(3.5% + 10 digits) | |
| 4000.0µF | 0.1µF | ±(5.0% + 10 digits) | |
| 40.000mF | 0.001mF | ||
| Frequency (clamp) | 400.00Hz | 0.01Hz | ±(1.0% + 3 digits) |
| Sensitivity: 5Arms minimum | |||
| Frequency (test leads) |
40.000Hz | 0.001Hz | ±(0.3% + 3 digits) |
| 400.00Hz | 0.01Hz | ±(0.3% + 2 digits) | |
| 4000.0Hz | 0.1Hz | ||
| 40.000kHz | 0.001kHz | ||
| 400.00kHz | 0.01kHz | ||
| 4000.0kHz | 0.1kHz | ||
| 40.000MHz | 0.001MHz | ||
| 100.00MHz | 0.01MHz | Not specified | |
| Sensitivity: 5 to 5kHz; 0.8Vrms min., 5kHz to 150kHz; 5Vrms min | |||
| Duty Cycle | 0.5% to 99.0% | 0.1% | ±(1.2% + 2 digits) |
| Pulse width: 100μs to 100ms, Frequency: 5Hz to 150kHz | |||
| Temperature Type K | -58 to -4°F -50 to -19°C |
0.1° <1000° 1° >1000° |
± 7°C/13°F |
| -4 to 31°F -20 to -1°C |
±(1.0% + 1°C/2°F) | ||
| 32°F 0°C |
±1°C/2°F | ||
| 33 to 211°F 1 to 100°C |
±(1.0% + 1°C/2°F) | ||
| 212 to 718°F 101 to 399°C |
±(1.5% + 2°C/3°F) | ||
| 719 to 1832°F 400 to 1000°C |
±(2.5% + 4°C/7°F) | ||
| Specification does not include probe accuracy | |||
| Temperature IR | -58 to -4°F -50 to -20°C |
0.1° | ± 5°C/9°F |
| -4 to 31°F -20 to -1°C |
±2% of reading or ±2°C/4°F whichever is greater | ||
| 32°F 0°C |
±1°C/2°F | ||
| 33 to 518°F 1 to 270°C |
±2% of reading or ±2°C/3°F whichever is greater | ||
