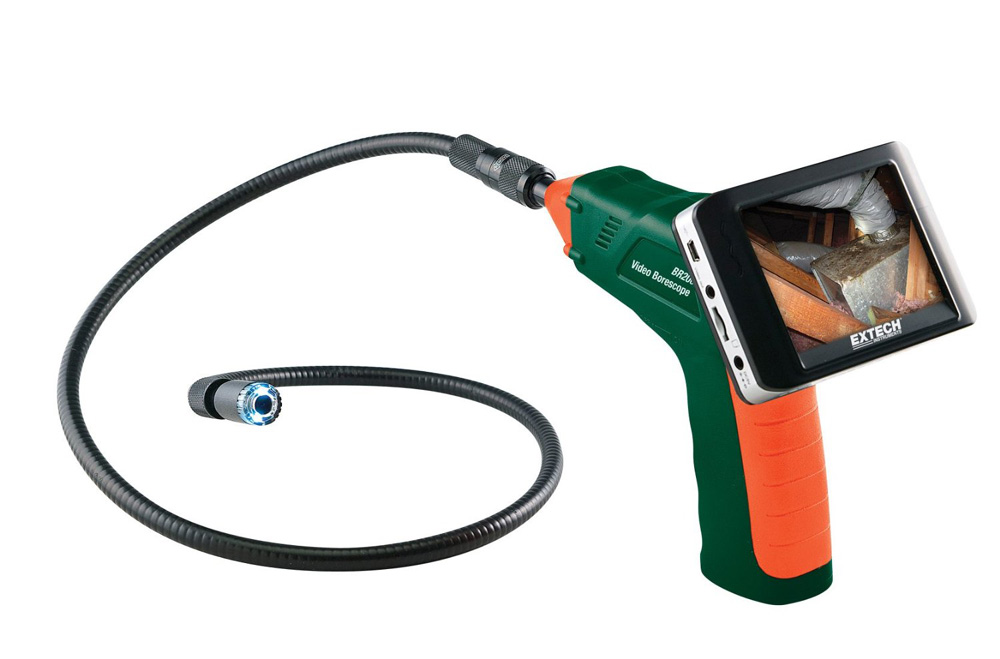

Extech BR200 Video Borescope/Wireless Inspection Camera
Item #:
EXT-BR200
Brand:
Extech
Share this product:
BR200 Video Borescope/Wireless Inspection Camera by Extech
Features
- Detachable wireless color display can be viewed from a remote location up to 32ft (10m) from measurement point
- 2GB microSD memory card (included) for capturing images (JPEG) or video (AVI) for viewing on your PC
- Captured video and still images with date/time stamp can be played back on the wireless monitor or your PC
- 17mm diameter camera head with 39" (1m) flexible gooseneck cable gooseneck cable retains configured shape
- Video and images can also be transferred to your PC via the microSD card (with included SD adaptor) or USB cable (included) and viewed using Windows® Multimedia Player
- Menus in 10 languages: English, Chinese, German, French, Spanish, Portuguese, Italian, Japanese, Dutch, and Russian
- Mini water-proof (IP67) camera head for high resolution viewing
- Two bright LED lamps with dimmer to illuminate viewed object
- Glare-free close-up field of view
- Optional BR200-EXT extension cable available for increasing viewing depth; 19mm diameter connector and 37" (0.95m) cable length; maximum 2 extension cables can be connected to the borescope
Includes
- 4 AA batteries
- Rechargeable display battery
- MicroSD memory card with SD adaptor
- USB cable
- Extension tools (mirror, hook, magnet)
- Video interconnect cable
- AC adaptor (100-240V, 50/60Hz)
- Magnetic base stand
- Hard case
Imaging Sensor | CMOS |
Total Pixels (NTSC) | BR200: 712 x 486; BR250: 640 x 480 |
Horizontal View Angle | BR200: 50 degrees BR250: 45 degrees |
Transmission Frequency | 2468MHz |
Focus point | BR200: 20cm (8"), BR250: 10cm (4") |
Minimum Illumination | 0 Lux |
Modulation Type | FM |
Bandwidth | 18MHz |
Power Supply | 4 x AA batteries |
Unobstructed Effective Range | 10m |
Waterproof Capacity | IP67 (imager head only) |
Dimensions (W D H) | 186 x 145 x 41(mm) (Exclude Flexible Tube) |
Weight (approx) | BR200: 530g BR250: 450g |
Camera head Diameter | BR200: 17mm (0.67") BR250: 9mm (0.36") |
Operating Temperature | -10°C~+50°C; +14°F~+122°F |
LCD Screen Type | 3.5" TFT-LCD |
Effective Pixels | 320 (R.G.B.) x 240 |
Video System | PAL/NTSC |
Transmission Frequency | 2468MHz (CH 4) |
Exterior Supply Voltage | 5VDC |
Consumption Current (Max.) | 500mA |
Charge Time | 3 hours |
Work Time | 2 hours |
Video Output Level | 0.9-1.3VP-P@75Ω |
Receiving Sensitivity | ≤-85dBm |
Dimensions (W x D x H) | 100 x 70 x 25(mm) |
Weight (Approx) | 140g |
Operating Temperature | -10°C~+50°C; +14°F~+122°F |
Operating Humidity (Max.) | 15~85%RH |
