Extech 461995 Combination Contact/Laser Photo Tachometer
Item #:
EXT-461995
Brand:
Extech
Share this product:

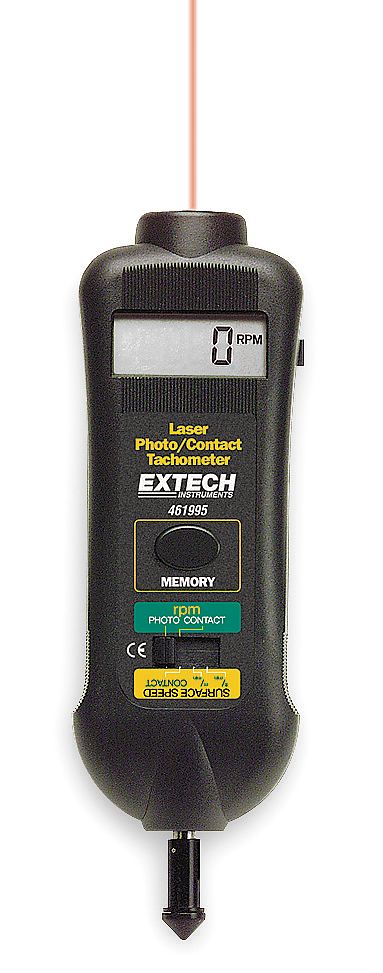

461995 Combination Contact/Laser Photo Tachometer by Extech
Features
- Unique display where characters reverse direction depending on measurement mode you are in
- Large 0.4" (5 digit) LCD display
- Microprocessor based with quartz crystal oscillator to maintain high accuracy
- Tachometer memory stores last, max and min readings
- Provides wide RPM (photo and contact) and Linear Surface Speed (contact) measurements
- Accurate to 0.05% with max resolution of 0.1rpm in either photo or contact mode
- Complete with tips and wheel for rpm or linear surface speed, four 1.5V AA batteries, reflective tape and carrying case
- Narrow beam Laser photo tachometer for accurate non-contact RPM measurements
- Measurements from up to 6.5ft from the target for improved safety and accessibility
Circuit | Custom one-chip LSI microprocessor circuit |
Time base | Quartz crystal 4.194 MHz |
Display | Reversible 5 digit 0. 10mm (4") LCD display |
Laser light source | Less than 1mW; Class 2 red laser diode (645nm approx.) |
Detecting Distance | 50 to 2000 mm (2 to 79") depending on ambient light and RPM |
Memory | Last reading and MIN/MAX readings |
Operating Conditions | 0 °C to 50 °C (32 °F to 122 °F); RH 80% Max |
Power Supply | 4 x 1.5 V AA batteries |
Power Consumption | 20mA DC approx. |
Weight | 300g (10.6oz) including battery) |
Size | 210 x 67 x 38 mm (8.5 x 2.6 x 1.5") |
Accessories | (4) x 1.5V batteries, reflective tape 600mm (24"), surface speed/rpm rotating attachments, and carrying case |
Range |
Resolution |
Accuracy (%rdg) |
|
Photo Tachometer |
10 to 99,999 rpm |
0.1 rpm (<1000rpm) 1 rpm (>1000 rpm) |
± (0.05% + 1d) |
Contact Tachometer |
0.5 to 19,999 rpm |
0.1 rpm (<1000rpm) 1 rpm (>1000 rpm) |
|
Surface Speed |
0.2 to 6560 ft/min |
0.1 ft/min (<1000ft/min) 1 ft/min (>1000ft/min) |
± (1% + 1d) |
Surface Speed |
0.05 to 1999.9 m/min |
0.01 m/min (<100m/min) 0.1 m/min (>100 m/min) |
