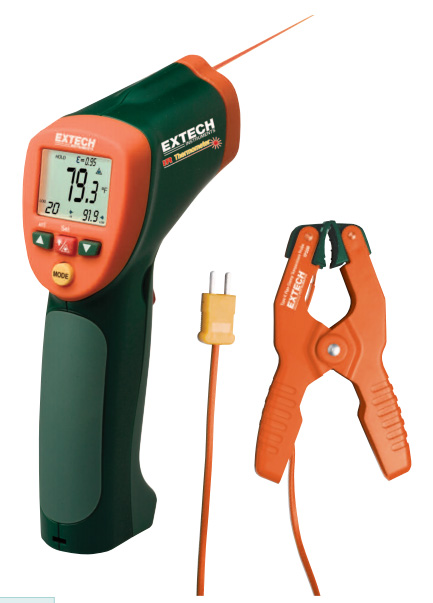

Extech 42515-T Wide Range IR Thermometer with Type K input and Pipe Clamp

Item #:

EXT-42515-T

Brand:

Extech

Our tech experts are ready to help!

Share this product:

42515-T Wide Range IR Thermometer with Type K input and Pipe Clamp by Extech

Wide temperature range for IR temperature and type K thermocouple measurements
Automatic emissivity adjustment (for temperatures 212°F or higher)
Memory stores up to 20 readings
Adjustable high/low visual and audible alarm
MAX/MIN/AVG/DIF features display highest, lowest, average, and MAX minus MIN values
Large LCD display with bright backlight
Built-in laser pointer improves aim
Data Hold, Auto power off, and Low battery indication
Complete with 9V battery, type K probe and case

Spring-loaded jaw for secure grip on pipes from 0.25" (6.35mm) to 1.5" (38mm) diameter
For use with any Thermometer or MultiMeter with a Type K thermocouple input
Measurement range: -4 to 200°F (-20 to 93°C)
Accuracy: ±5% FS
Complete with attached 36" (0.9m) cable and Type K connector

General Specifications

Display	Backlit LCD display with function indicators
Display update rate	1 second approx.
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	80% Relative Humidity max.
Power Supply	9V battery
Automatic Power Off	Meter shuts off automatically after 7 seconds
Weight	180g / 6.4 oz.
Dimensions	82 x 42 x 160mm (3.2 x 1.6 x 6.3")

Infrared Thermometer (Non-contact) Specifications

Range / Resolution	-50.0 to 800.0°C (-58.0 to 1472.0°F)	Resolution: 0.1°
Accuracy	-50 to -1°C (-58 to 30°F)	± 2.0%rdg or ±3°C/6°F whichever is greater
	-0.5 to 65°C (31°F to 150°F)	± 2.0%rdg or ±2.5°C/4.5°F whichever is greater
	66 to 315°C (151°F to 600°F)	± 2.0%rdg or ±2°C/4°F whichever is greater
	316 to 800°C (600F to 1472°F)	± (2.5%rdg + 2.5°C/5°F)
	Note: Accuracy is specified for the following ambient temperature range: 23 to 25°C (73 to77°F)
Emissivity	0.10 to 1.00 adjustable (Automatic adjust above 212°F or 100°C)
Field of View	D/S = Approx. 13:1 ratio (D = distance; S = spot or target)
Laser pointer	Class 2 laser < 1mW power; Wavelength is 630 to 670nm
IR Spectral response	8 to 14μm (wavelength)

Type K Thermocouple (Contact) Specifications

Range / Resolution	-50.0 to 1370.0°C (-58.0 to 1999.9°F) 2000°F to 2498°F	0.1° 1°
Accuracy	± (1.5% of rdg + 1ºC/2ºF) Note: Accuracy is specified for the following ambient temperature range: 18 to 28°C (64 to 82°F)

$139.99
