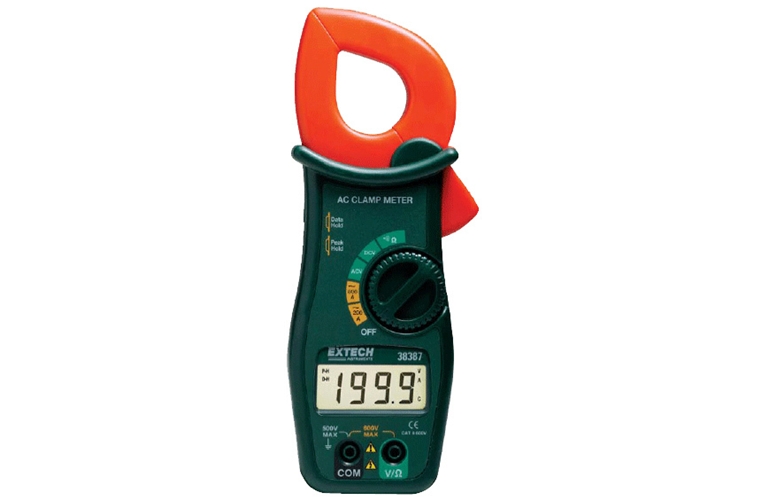

Extech 38387 600A AC Clamp + MultiMeter
Item #:
EXT-38387
Brand:
Extech
Share this product:
38387 600A AC Clamp + MultiMeter by Extech
Features
- Maximum AC current of 600A
- Measure AC Current, AC/DC Voltage and Resistance
- Data Hold "freezes" data in display
- 1.25" (33mm) circular jaw opening for large cables (350MCM)
- Audible Continuity beeper
- Auto power off
- Complete with test leads, 9V battery, and belt holster
- AC current to 600A
- Large 2000 count LCD display
| Jaw size | Opening 1.3" (33mm) approx. |
| Display | 3-1/2 digits (2000 counts) LCD |
| Continuity | Audible tone < 40Ω approx. |
| AC bandwidth | 40Hz to 400Hz |
| Safety compliance | IEC 1010-1 and VDE 0411 |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Over voltage | Cat II 600V |
| Overload protection | 250V AC/DC Spark Gap protection; PTC protection for Ω range to 250V |
| Battery | 9V battery (IEC 6F22) |
| Auto Power OFF | After 10 minutes of inactivity |
| Dimensions/Weight | 8x3.2x1.7" (204x80x43mm)/0.62 lbs. (281g) |
| Safety | For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Cat. III. |
Function |
Range and Resolution |
Accuracy (of reading) |
AC Current |
199.9 ACA |
± (1.5% + 4 digits)
@ 50/60Hz |
600 ACA |
||
AC Voltage |
600 VAC |
|
DC Voltage |
600 VDC |
± (1.0% + 1 digits) |
Resistance |
1999 Ω |
± (1.0% + 2 digits) |
