Extech 382400 Flexible True RMS 3000A AC Current Clamp
Item #:
EXT-382400
Brand:
Extech
Share this product:

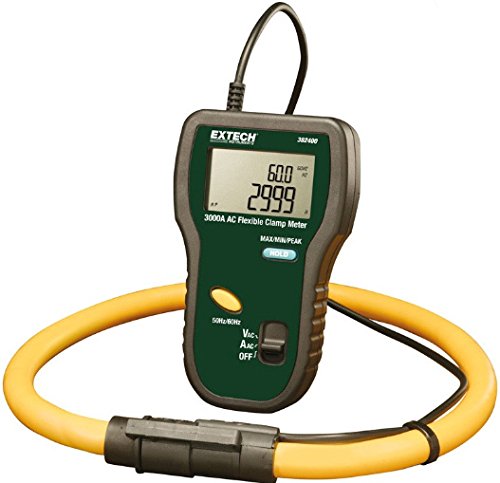

382400 Flexible True RMS 3000A AC Current Clamp by Extech
Features
- AC Voltage to 600V
- Fast Peak capture (30μs)
- Selectable frequency (50/60Hz)
- Max/Min feature
- Simultaneously displays Frequency with Current or Voltage
- Large 4000 count LCD dual display
- Auto power off with disable feature
- Complete with 24" (61cm) flexible current probe, carrying case, and 2 AA batteries
| Display | Four (4) digit (9999 counts) LCD |
| Range selection | Automatic |
| Low Battery indication | Battery symbol is displayed |
| Over-range indication | 'OL' is displayed |
| Measurement rate | 2 readings per second, nominal |
| Peak Hold | Captures peaks 39µS (50Hz) or 33µS (60Hz) |
| Operating Temperature | 14°F to 185 °F (-10°C to 85°C) |
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
| Operating Humidity | 15% to 85% |
| Storage Humidity | 15% to 85% |
| Operating Altitude | 7000ft. (2000m) max. |
| Battery | Two (2) 1.5V 'AA' batteries |
| Power consumption | 10mA approx. |
| Auto power OFF | After approx. 15 minutes |
| Weight | 15.2 oz. (430g) |
| Safety | For indoor use and in accordance with the requirements for double insulation to EN61010-1-032 Category III 600V; Pollution Degree 2. |
| Approvals | CE |
Function |
Range |
Resolution |
Accuracy |
AC Current |
0 to 300.0 AAC |
0.1A |
± 1.0% of range |
300.0 to 999.9 A |
|||
1000 to 3000 A |
1A |
||
AC Voltage |
4.0V to 600.0 VAC |
0.1V |
± (0.5% reading+ 5 digits) |
Frequency |
45 – 65 |
0.1 |
± 0.2Hz |
| Probe length | 24" (610mm) |
| Bending diameter | 1.4" (35mm) |
| Connector diameter | 0.9" (23mm) |
| Cable diameter | 0.5" (14mm) |
| Cable length (probe to meter) | 6.7" (170mm) |
| Cable length (meter to output) | 6.7" (170mm) |
