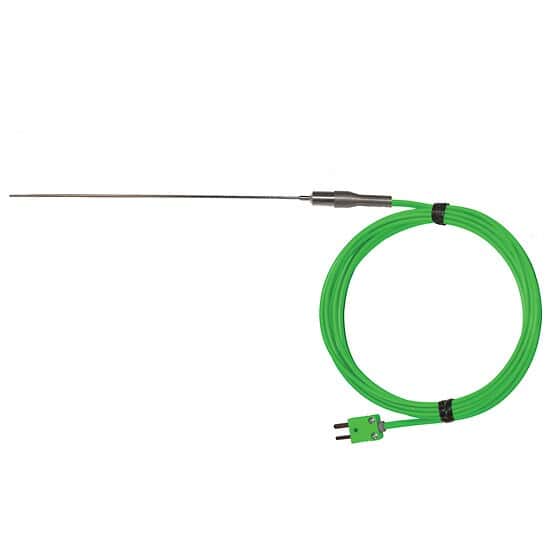

Digi-Sense Type-R, Std-Probe SS Handle, Mini-Connector, 12 in. L, .125 Dia, U, 3ft PVC Cable - 93838-12

93838-12 Type-R, Std-Probe SS Handle, Mini-Connector, 12" L, .125 Dia, U, 3ft PVC Cable by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Key Features

• These probes feature ICONEL 600 sheaths w/ high purity MgO to prevent contamination of the platinum wires.
• Type R and Type S are more accurate than other thermocouples at higher temperatures
• Response Time: 2 seconds or greater
• Each probe comes with a color coded ANSI mini connector: type R/S-green
• Custom designs or changes to this product are available upon request
