Digi-Sense Universal Industrial Thermocouple Probes Type K 6 in. L - 93830-73

Item #:
DS-93830-73
Brand:
Digi-Sense
Digi-Sense Universal Industrial Thermocouple Probes Type K 6 in. L - 93830-73
$275.10
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Universal Industrial Thermocouple Probes Type K 6 in. L - 93830-73

Digi-Sense Universal Industrial Thermocouple Probes Type K 6 in. L - 93830-73

$275.10

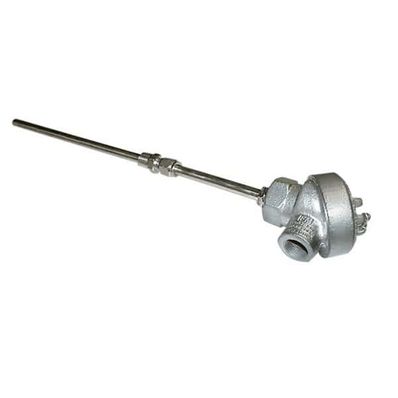

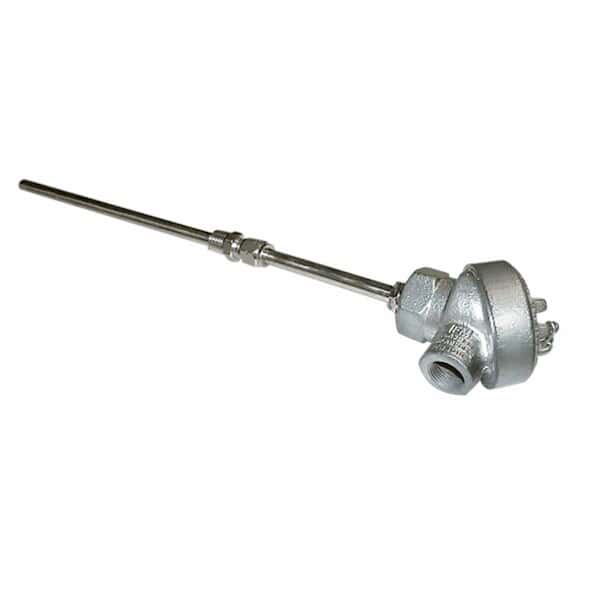

93830-73 Universal Industrial Thermocouple Probes Type K 6" L by Digi-Sense

The Uniwell eliminates the need for thermowells and spring loaded probes. With a unique adjustable feature that allows the probe to be customized to the required insertion length, through the use of an adjustable 1/2" NPT compression fitting. Also designed to be directly inserted into the medium being measured without the use of a thermowell. This allows for ease of installation where a thermowell is not required. The probes conductor is made of 14 gauge wire and is encased with Magnesium Oxide insulation, and has a 446 stainless steel heavy wall sheath producing an increased life span. Featuring a standard size aluminum protection head with a gasketed cap to seal out dust and moisture and houses a ceramic terminal block.

Probe Type K
Min Temperature (° F) 0
Max Temperature (° F) 2000
Min Temperature (° C) -17
Max Temperature (° C) 1093
Junction Grounded
Connector Type 1/2" NPT(M) x 3/4" NPT(F) conduit
Sheath material 446 Stainless Steel
Sheath Length (in) 6
Description Universal Industrial Thermocouple Probes Type K 6" L
