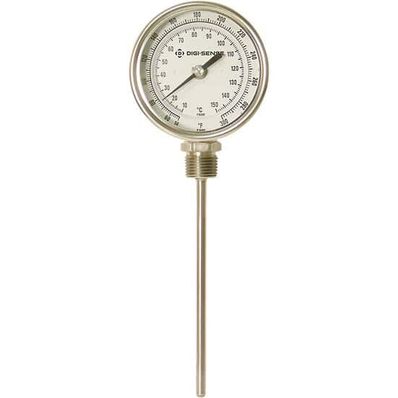

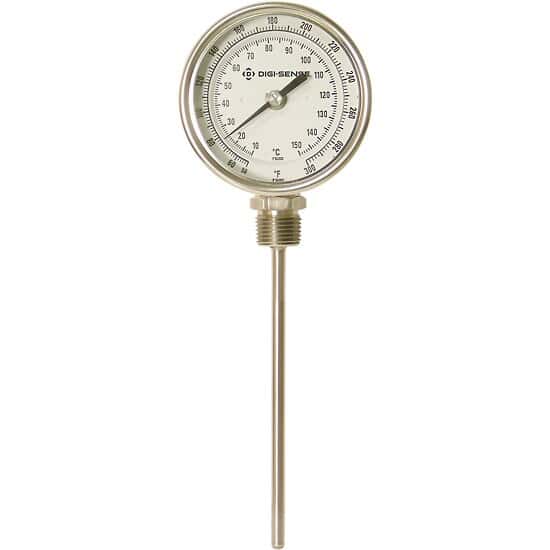

Digi-Sense Sil-Filled Bottom-Con Bimetal Thermometer, 3 in. Dial, 12 in. L/0-250F/-20-120C - 90551-37
Item #:
DS-90551-37
Brand:
Digi-Sense
Share this product:
90551-37 Sil-Filled Bottom-Con Bimetal Thermometer, 3" Dial, 12" L/0-250F/-20-120C by Digi-Sense
Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for Acrylic lens thermometers is 200°F (93°C).
- Dampened movement
- Anti-parallax dial for accurate readings
- Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
- Rugged 304 stainless steel construction with Acrylic lens
- Recalibrate using the external reset screw
- For use in applications that do not exceeding 200F
Min Temperature (° F) | 0 |
Min Temperature (° C) | -20 |
Max Temperature (° F) | 250 |
Max Temperature (° C) | 120 |
Accuracy | ±1% full-scale |
Division (° C) | 1 |
Division (° F) | 2 |
Thermometer Fill | Silicone |
Dial Size (in) | 3 |
Dial / Case Material | 304 Stainless Steel |
Stem Length (in) | 12 |
Stem Diameter (in) | 0.25 |
Stem Material | 304 Stainless Steel |
Connection | 0.5" NPT(M) |
Description | Sil-Filled Bottom-Con Bimetal Thermometer, 3" Dial, 12" L/0-250F/-20-120C |
