Digi-Sense Dampen Adjustable Angle Bimetal Thermometer 5 in. Dial 2.5 in. L Range 0-250F/-20-120C - 90550-71
Item #:
DS-90550-71
Brand:
Digi-Sense
Share this product:

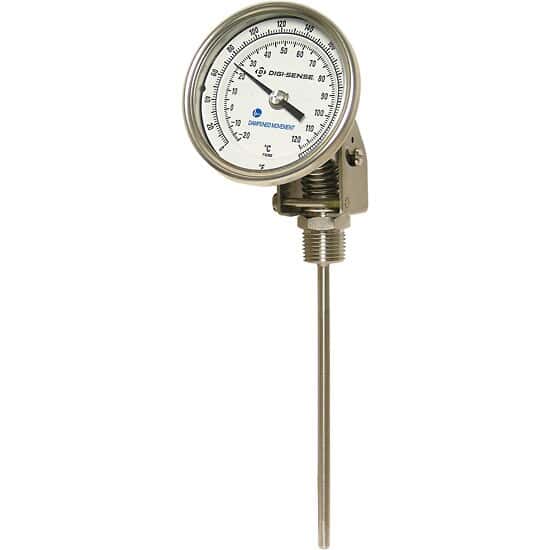

90550-71 Dampen Adjustable Angle Bimetal Thermometer 5" Dial 2.5" L Range 0-250F/-20-120C by Digi-Sense
Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for glass lens thermometers is 500°F (148°C).
- Dampened movement
- More economical than silicone gauges
- Greater temperature range than a silicone-filled gauges
- Anti-parallax dial for accurate readings
- Eliminate the risk of a leaking case and cross-contamination
- Rugged 304 stainless steel construction with a clear glass lens
- Recalibrate using the external reset screw
- Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
Min Temperature (° F) | 0 |
Min Temperature (° C) | -20 |
Max Temperature (° F) | 250 |
Max Temperature (° C) | 120 |
Accuracy | ±1% full-scale |
Division (° C) | 1 |
Division (° F) | 2 |
Dial Size (in) | 5 |
Dial / Case Material | 304 Stainless Steel |
Stem Length (in) | 2.5 |
Stem Diameter (in) | 0.25 |
Stem Material | 304 Stainless Steel |
Connection | 0.5" NPT(M) |
Description | Dampen Adjustable Angle Bimetal Thermometer 5" Dial 2.5" L Range 0-250F/-20-120C |
