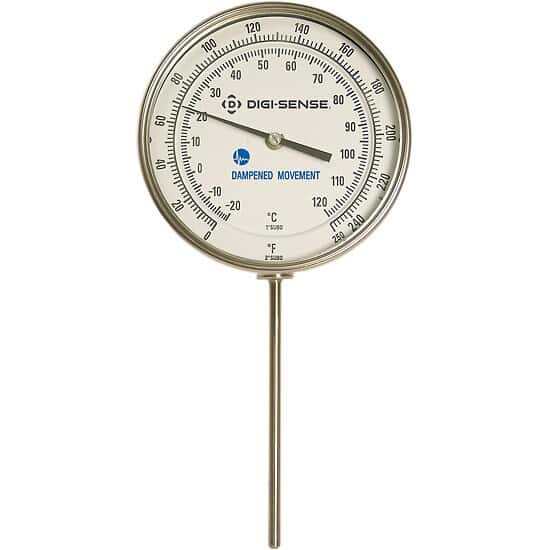

Digi-Sense Dampened Bottom-Con Bimetal Thermometer, 3 in. Dial, 4 in. L/50-550F/10-290C - 90550-50

90550-50 Dampened Bottom-Con Bimetal Thermometer, 3" Dial, 4" L/50-550F/10-290C by Digi-Sense

Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for glass lens thermometers is 500°F (148°C).

• Dampened movement
• More economical than silicone gauges
• Greater temperature range than a silicone-filled gauges
• Anti-parallax dial for accurate readings
• Eliminate the risk of a leaking case and cross-contamination
• Rugged 304 stainless steel construction with a clear glass lens
• Recalibrate using the external reset screw
• Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
