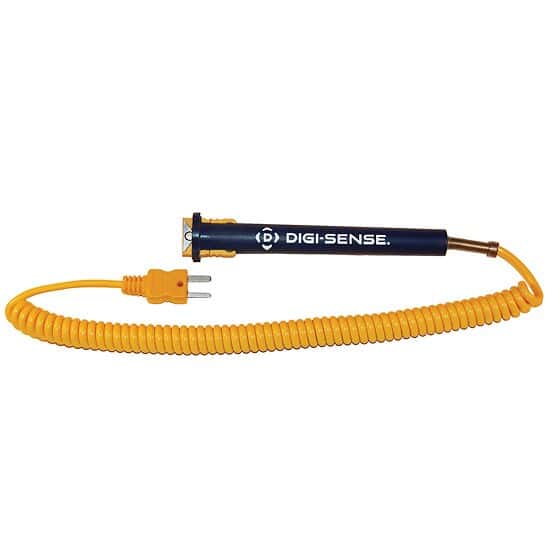

Digi-Sense Type K Replacement Penetration Probe, 8 in. L, with Mini-Connector, .125 Dia. Grounded Junction - 18526-83
Item #:
DS-18526-83
Brand:
Digi-Sense
Share this product:
18526-83 Type K Replacement Penetration Probe, 8" L, with Mini-Connector, .125 Dia. Grounded Junction by Digi-Sense
The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).
- Ideal for switching out probes when working with multiple applications.
- Response Time: 1.75-3 seconds or greater
- Each probe comes with a color coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple.
- Custom designs or changes to this product are available upon request.
| Length (") | 12 1/2 |
| Probe Type | K |
| Min Temperature (° F) | -250 |
| Max Temperature (° F) | 1200 |
| Min Temperature (° C) | -150 |
| Max Temperature (° C) | 649 |
| Temperature Accuracy | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Junction | Grounded |
| Connector Type | Mini Connector |
| Sheath material | 316 Stainless Steel |
| Handle Material | ABS plastic |
| Sheath Length (in) | 8 |
| Handle Length (in) | 4.5 |
| Sheath Diameter (in) | 0.125 |
| Description | Type K Replacemnet Penetration Probe, 8" L, with Mini Con, .125 Dia. Grn Jct |
