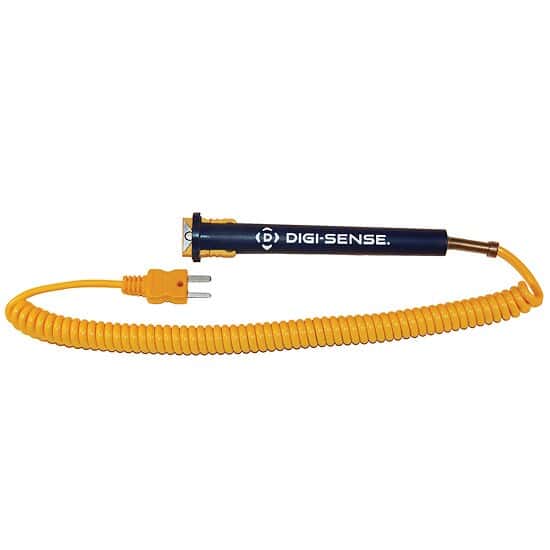

Digi-Sense Type K Replacement GP Probe, 8 in. L, with Mini-Connector, .125 Dia. Ungrounded Junction - 18526-77

Item #:

DS-18526-77

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

18526-77 Type K Replacement GP Probe, 8" L, with Mini-Connector, .125 Dia. Ungrounded Junction by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Ideal for switching out probes when working with multiple applications.
Response Time: 1.75-3 seconds or greater
Each probe comes with a color coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple.
Custom designs or changes to this product are available upon request.

Specifications

Length (")	12 1/2
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1200
Min Temperature (° C)	-150
Max Temperature (° C)	649
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Ungrounded
Connector Type	Mini Connector
Sheath material	316 Stainless Steel
Handle Material	ABS plastic
Sheath Length (in)	8
Handle Length (in)	4.5
Sheath Diameter (in)	0.125
Description	Type K Replacemnet GP Probe, 8" L, with Mini Con, .125 Dia. Ungrn Jct
