Digi-Sense Type J Replacement Handle/Lock for Probe Kit , with Mini-Connector, 5ft Coil - 18526-72

Item #:

DS-18526-72

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

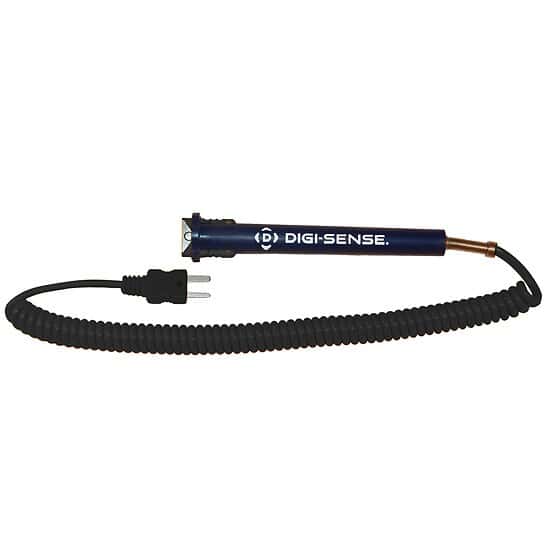

18526-72 Type J Replacement Handle/Lock for Probe Kit , with Mini-Connector, 5ft Coil by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Each handle comes with a color coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple

Specifications

Length (")	4 1/2
Probe Type	J
Min Temperature (° F)	32
Max Temperature (° F)	150
Min Temperature (° C)	0
Max Temperature (° C)	66
Temperature Accuracy	±4.0°F (2.2°C) or ±0.4% reading above 32° (0°C); ±4.0% of reading below 32°F (0°C)
Connector Type	Mini Connector
Handle Material	ABS plastic
Handle Length (in)	4.5
Cable Type	Coiled
Cable Length (in)	60
Description	Type J Replacement Handle/Lock for Probe Kit , with Mini Con, 5ft Coil
