Digi-Sense Type K Detachable Handle Adaptor, with Mini-Connector, 5ft Coil Cord - 18526-53

Item #:

DS-18526-53

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

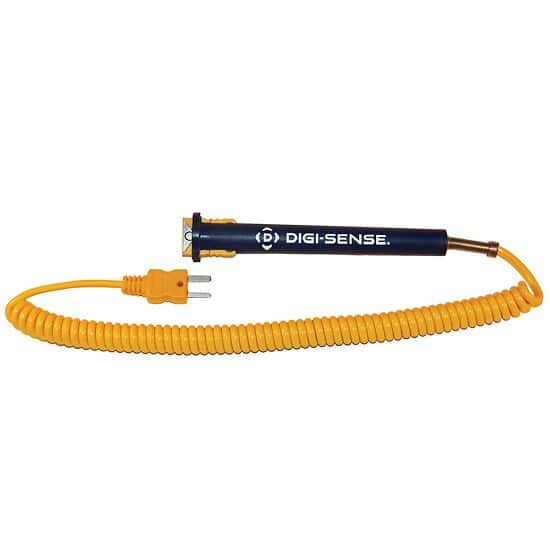

18526-53 Type K Detachable Handle Adaptor, with Mini-Connector, 5ft Coil Cord by Digi-Sense

Handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Handle adaptor excepts detachable probes come with a mini connectors
Compatible with several different designs of detachable probes.
Ideal for switching out probes when working with multiple applications
Handle includes a 5ft coil cord with mini connector
Each probe comes with a color coded ANSI coiled cable: type J-black, type K-yellow, type T-blue, and type E-purple
Custom designs or changes to this product are available upon request

Specifications

Length (")	12 1/2
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	200
Min Temperature (° C)	-150
Max Temperature (° C)	94
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connector Type	Mini Connector
Handle Material	ABS plastic
Sheath Length (in)	8
Handle Length (in)	4.5
Cable Type	Coiled
Cable Length (in)	60
Description	Type K Detachable Handle Adaptor, with Mini Con, 5ft Coil Cord
