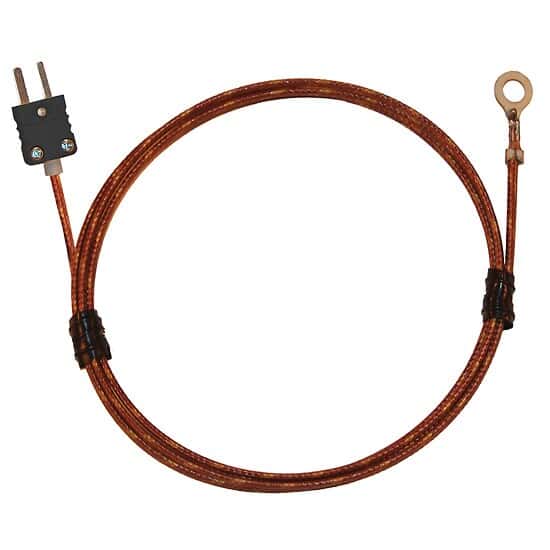

Digi-Sense Type J Economic Bolt On Thermocouple Probe #8 Screw with Mini-Connector, 36 in. Fiberglass Ext. Grounded - 18526-42

Item #:

DS-18526-42

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

18526-42 Type J Economic Bolt On Thermocouple Probe #8 Screw with Mini-Connector, 36" Fiberglass Ext. Grounded by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Available in #6 (M3.5) or #8 (M4) screw sizes and different lead lenghts
Response Time: 2-4 seconds or greater
Each probe comes with a color coded ANSI mini connector or stripped leads: type J-black, type K-yellow, type T-blue, and type E-purple.
Custom designs or changes to this product are available upon request

Specifications

Probe Type	J
Min Temperature (° F)	32
Max Temperature (° F)	900
Min Temperature (° C)	0
Max Temperature (° C)	482
Temperature Accuracy	±4.0°F (2.2°C) or ±0.4% reading above 32° (0°C); ±4.0% of reading below 32°F (0°C)
Junction	Grounded
Connector Type	Mini Connector
Sheath material	24 AWG, Fiberglass Insulated
Description	Type J Econ Bolt On Thermocouple Probe Probe #8 Scr with Mini Con, 36" Fiberglass Ext. Grn
