Digi-Sense Type K Economic Hollow Thermocouple Probe 6 in. L, 36 in. E x t 24 Awg .250 Dia, Ungrounded Junction - 18525-57

Item #:

DS-18525-57

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

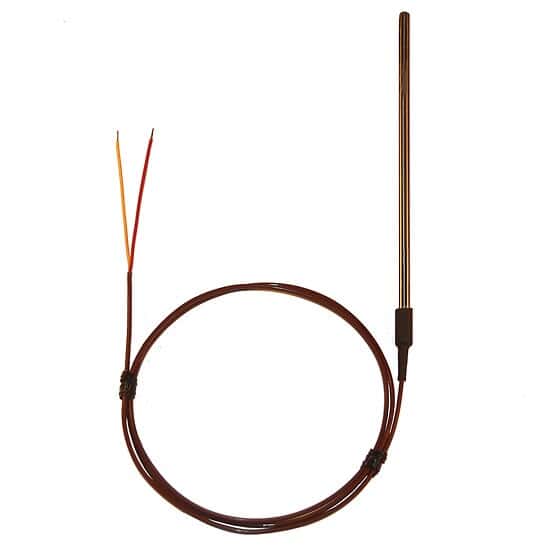

18525-57 Type K Economic Hollow Thermocouple Probe 6" L, 36" E x t 24 Awg .250 Dia, Ungrounded Junction by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Response Time: 2-4 seconds or greater
Each probe comes with a color coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple.
Custom designs or changes to this product are available upon request

Specifications

Length (")	6
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	425
Min Temperature (° C)	-150
Max Temperature (° C)	218
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Ungrounded
Connector Type	Stripped Leads
Sheath material	316 Stainless Steel
Sheath Length (in)	6
Sheath Diameter (in)	0.25
Cable Wire Gauge (Ga)	24
Description	Type K Econ Hollow Thermocouple Probe Probe 6" L, 36" Ext 24 Awg .250 Dia, Ung Jct
