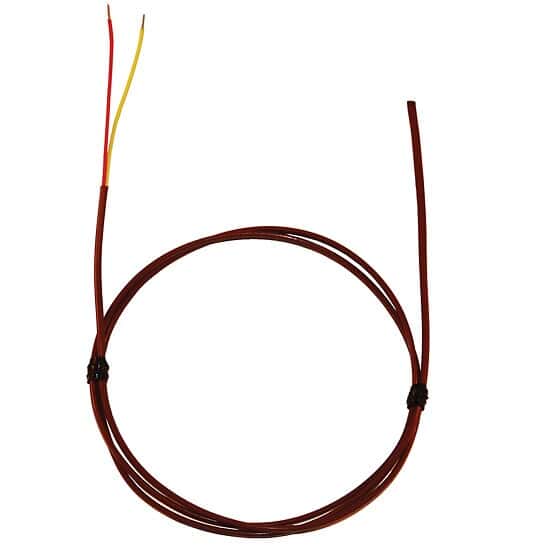

Digi-Sense Type K Thermocouple Probe Insulated Wire Probe with Sealed Tip with Mini-Connector, 20ft L 24 Awg - 18525-39
Item #:
DS-18525-39
Brand:
Digi-Sense
Share this product:
18525-39 Type K Thermocouple Probe Insulated Wire Probe with Sealed Tip with Mini-Connector, 20ft L 24 Awg by Digi-Sense
Do not subject type J exposed-junction probes to moisture as they will rust
- Each Probe is hermetically sealed and tested to 25psi
- Can be used for applications requiring an isolated junction.
- Response Time: 0.75 seconds or greater
- All insulated-wire probes include straight insulated cable with no handle and feature ANSI color-coded mini connectors: type J - black, type K - yellow, and type T - blue.
- Custom designs or changes to this product are available upon request
Probe Type | K |
Min Temperature (° F) | -250 |
Max Temperature (° F) | 400 |
Min Temperature (° C) | -150 |
Max Temperature (° C) | 218 |
Temperature Accuracy | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
Junction | Ungrounded |
Connector Type | Mini Connector |
Cable Length (in) | 240 |
Cable Wire Gauge (Ga) | 24 |
Description | Type K Thermocouple Probe Insulated Wire Probe with Sealed Tip with Mini Con, 20ft L 24 Awg |
