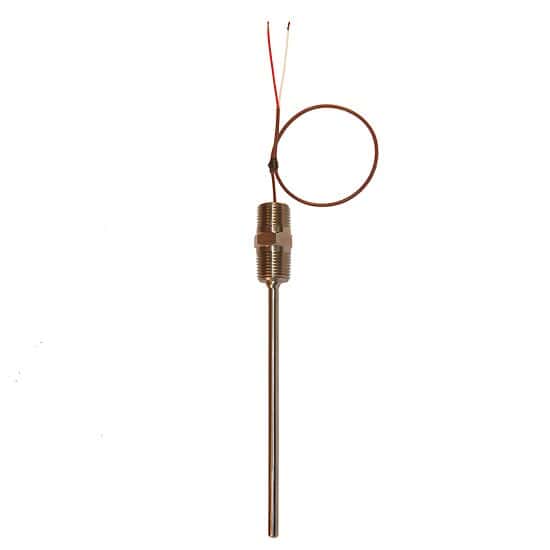

Digi-Sense Type K Ind Thermocouple Probe Probe 4 in. L, 12 in. Ext .250 Dia, Ungrounded Junction - 18524-83

Item #:

DS-18524-83

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

18524-83 Type K Ind Thermocouple Probe Probe 4" L, 12" Ext .250 Dia, Ungrounded Junction by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C)

The probes can be installed with current housing without having to purchase a whole new industrial assembly or can also to directly inserted
Response Time: 3.75 seconds or greater
Each probe comes with ½" NPT insertion threads
Probes are welded and sealed which allows for direct insertion into a vessel
Custom designs or changes to this product are available upon request
Each probe comes with a color coded ANSI stripped leads: type J-red/white, type K-red/yellow, type T-red/blue

Specifications

Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1650
Min Temperature (° C)	-150
Max Temperature (° C)	1100
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Ungrounded
Connector Type	Stripped wire; 1/2" NPT(M) x 1/2" NPT(M)
Sheath material	Inconel®
Sheath Length (in)	4
Sheath Diameter (in)	0.25
Description	Type K Ind Thermocouple Probe Probe 4" L, 12" Ext .250 Dia, Ungrounded Junction
